Workshop Manual, TPD 1377E, issue 4 53
100 Series

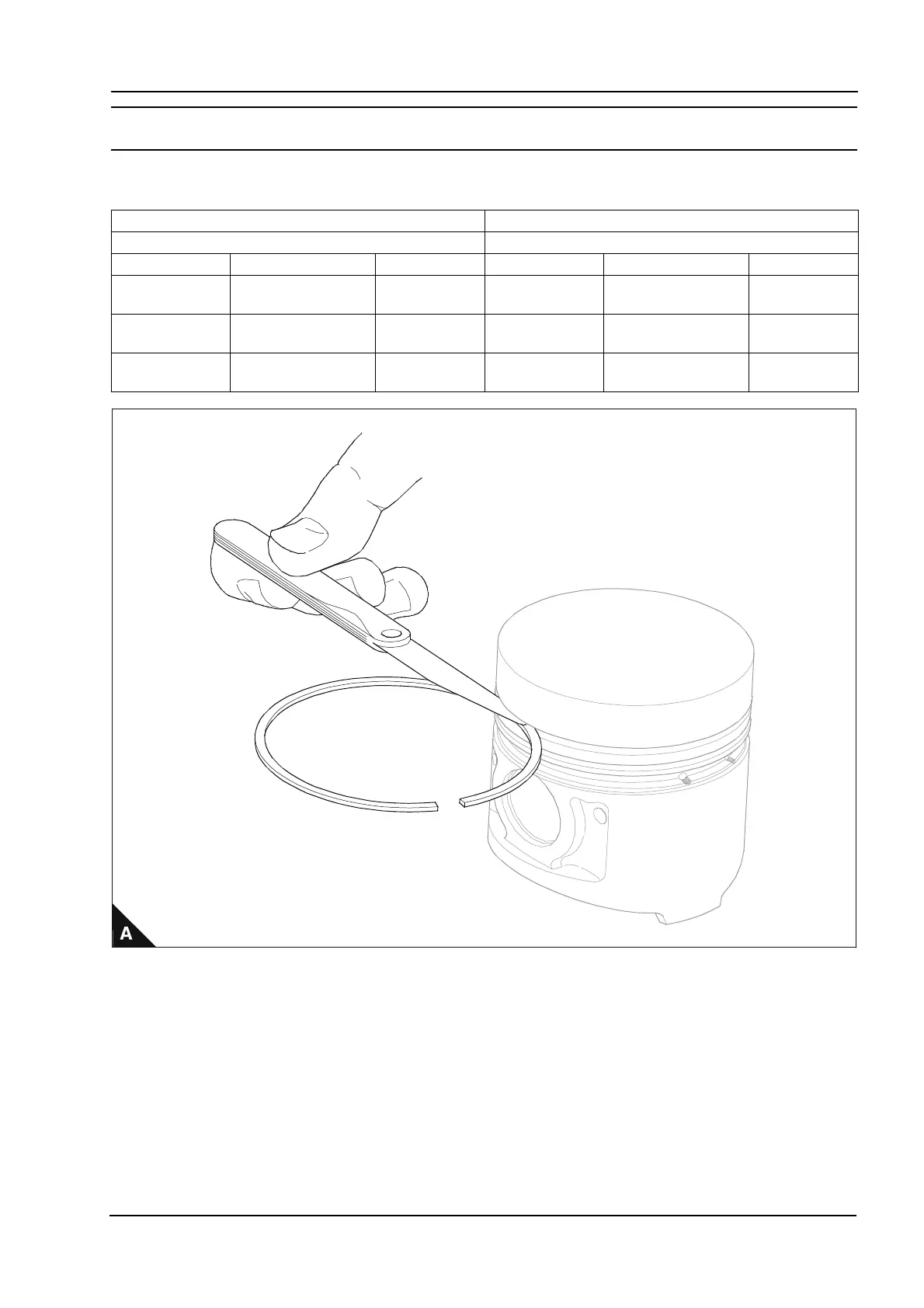

To measure piston ring clearance Operation 4-5
By use of feeler gauges, measure the clearance between the piston ring groove and ring. If the clearance
exceeds the service limit, renew the piston and rings.
102-05, 103-07, 103-10 103-13, 103-15, 104-19, 104-22
Clearance mm (in) Clearance mm (in)
Piston ring Standard Service limit Piston ring Standard Service limit
No. 01 ring
0,06 - 0,1
(0.0024 - 0.0039)
0,25
(0.0098)
No. 01 ring
0,07 - 0,11
(0.0028 - 0.0043)
0,25
(0.0098)
No. 02 ring
0,05 - 0,09
(0.0020 - 0.0035)
0,25
(0.0098)
No. 02 ring
0,04 - 0,08
(0.0016 - 0.0032)
0,25
(0.0098)
Oil control ring
0,02 - 0,06
(0.0008 - 0.0024)
0,15
(0.0059)
Oil control ring
0,02 - 0,06
(0.0008 - 0.0024)
0,15
(0.0059)
