Prerequisites
A common screen and AUX layer are selected.
Note
If the layer source bandwidth is exceeded, the layer displays a black screen.
Menu Orientation

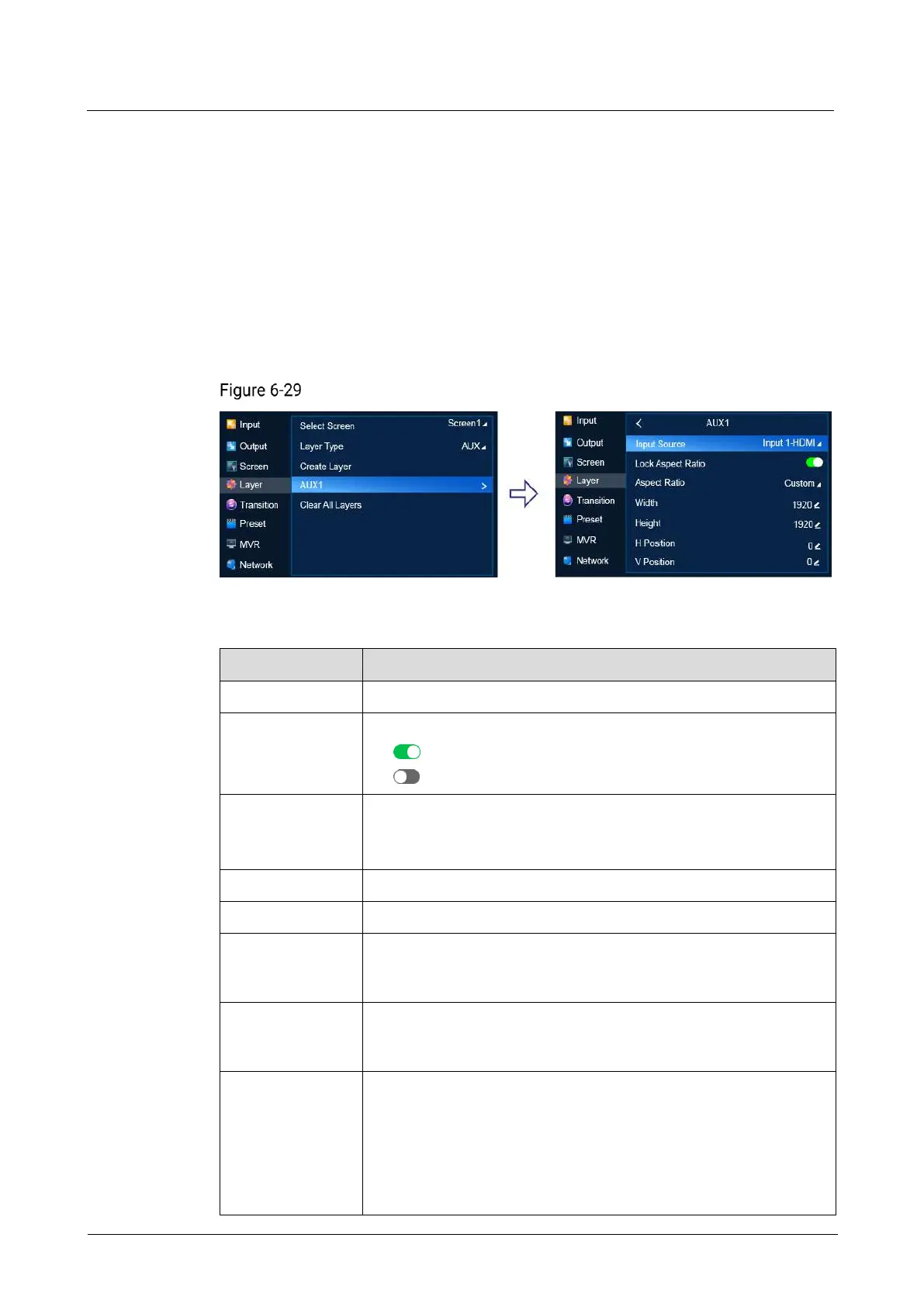

On the main menu screen, scroll to and select Layer > Layer Name.
Basic layer information (P20)
Description
Menu Item
Description
Input Source
Select an input source for the layer
Lock Aspect Ratio
Lock or unlock the aspect ratio of the layer resolution.

: Locked

: Unlocked
Aspect Ratio
Set the ratio of the layer width to the layer height.
After the aspect ratio is changed, the layer height keeps
unchanged and the layer width is calculated automatically.
Width
Specify the layer width.
Height
Specify the layer height.
H Position
Specify the horizontal start position of the layer on the common
screen. The coordinates of the pixel at the top left of the main
screen is (0, 0).
V Position
Specify the vertical start position of the layer on the common
screen. The coordinates of the pixel at the top left of the main
screen is (0, 0).
Scaling Mode
Set the scaling mode of the layer.

Custom: The layer is scaled according to your settings.

Pixel to Pixel: The layer resolution is the same as the input
resolution. If the input source is cropped, the layer resolution is
the same as the resolution after cropping.

Full Screen: The layer fills the entire screen.
