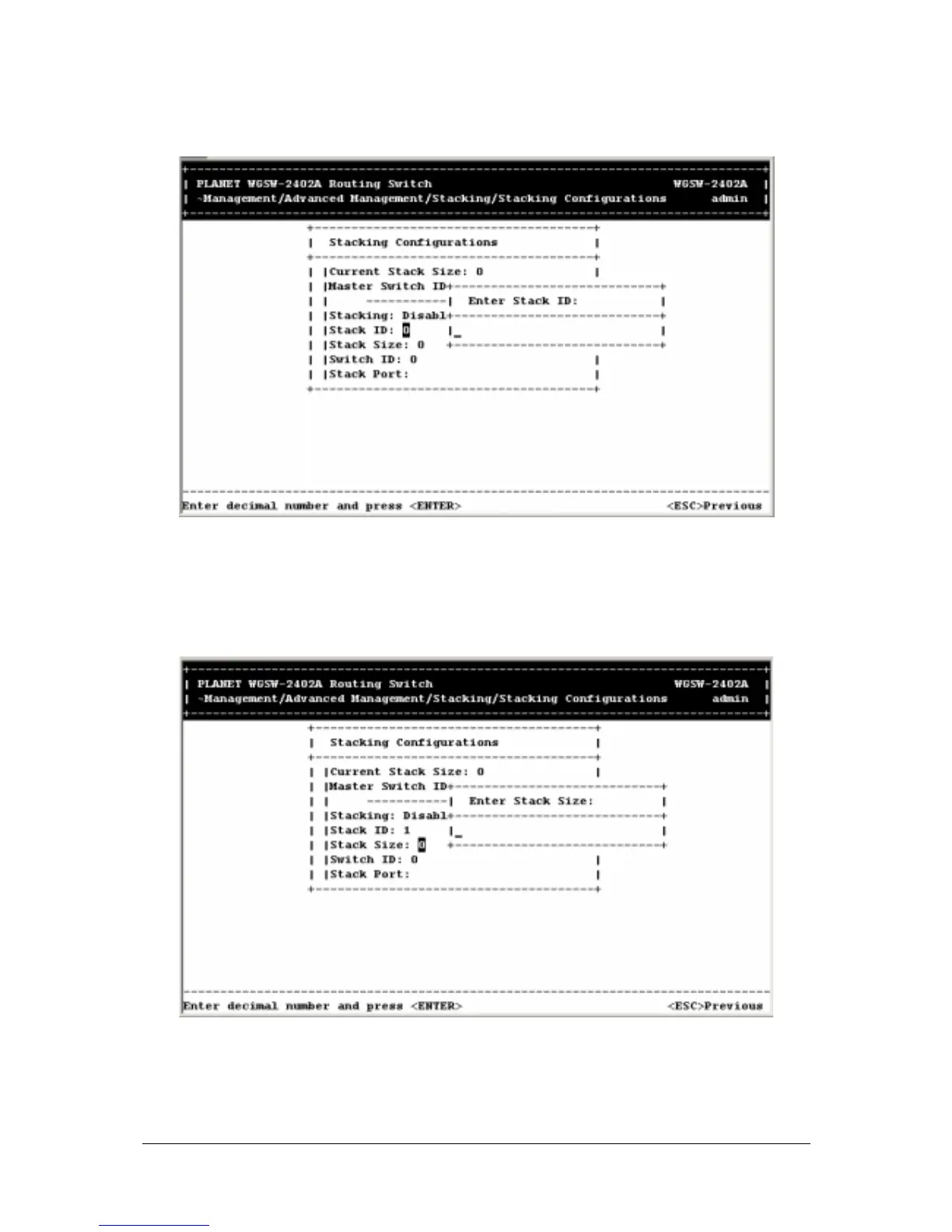

- 134 -
F
IGURE
5-106
3.
Use the down arrow key to move to the column of Stack Size. Press Enter and the
Enter Stack Size
column will appear. Type in the value y
ou want to change. Then p
r
ess Enter.
F
IGURE
5-107
4.
Use the down arrow key to move to the column
of Switch I
D. Press Enter and the Enter Switch ID
screen will appear. Type in the value you want to chan
ge. Then press Enter.
