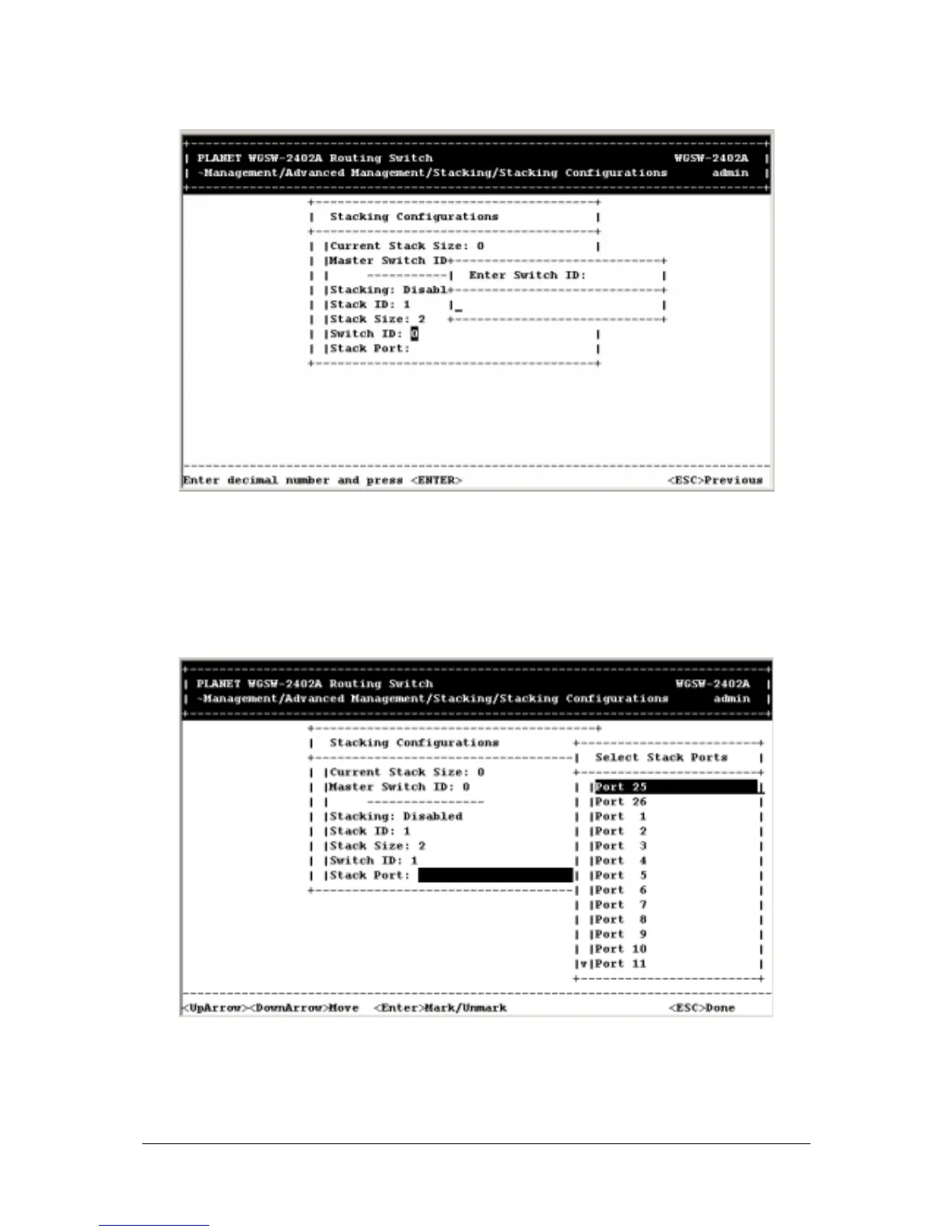

- 135 -
F
IGURE
5-108
5.
Use the down arrow key to move to the column
of Stack Port. Press Enter and the Select Stack
Ports screen will appear. Select the port you want
to connect to other switche
s
as a stack port.
Then press Enter. An asterisk ma
rk
will appear to the port you select.
F
IGURE
5-109
Press ESC. The selected port will appear in the Stack Port field.
