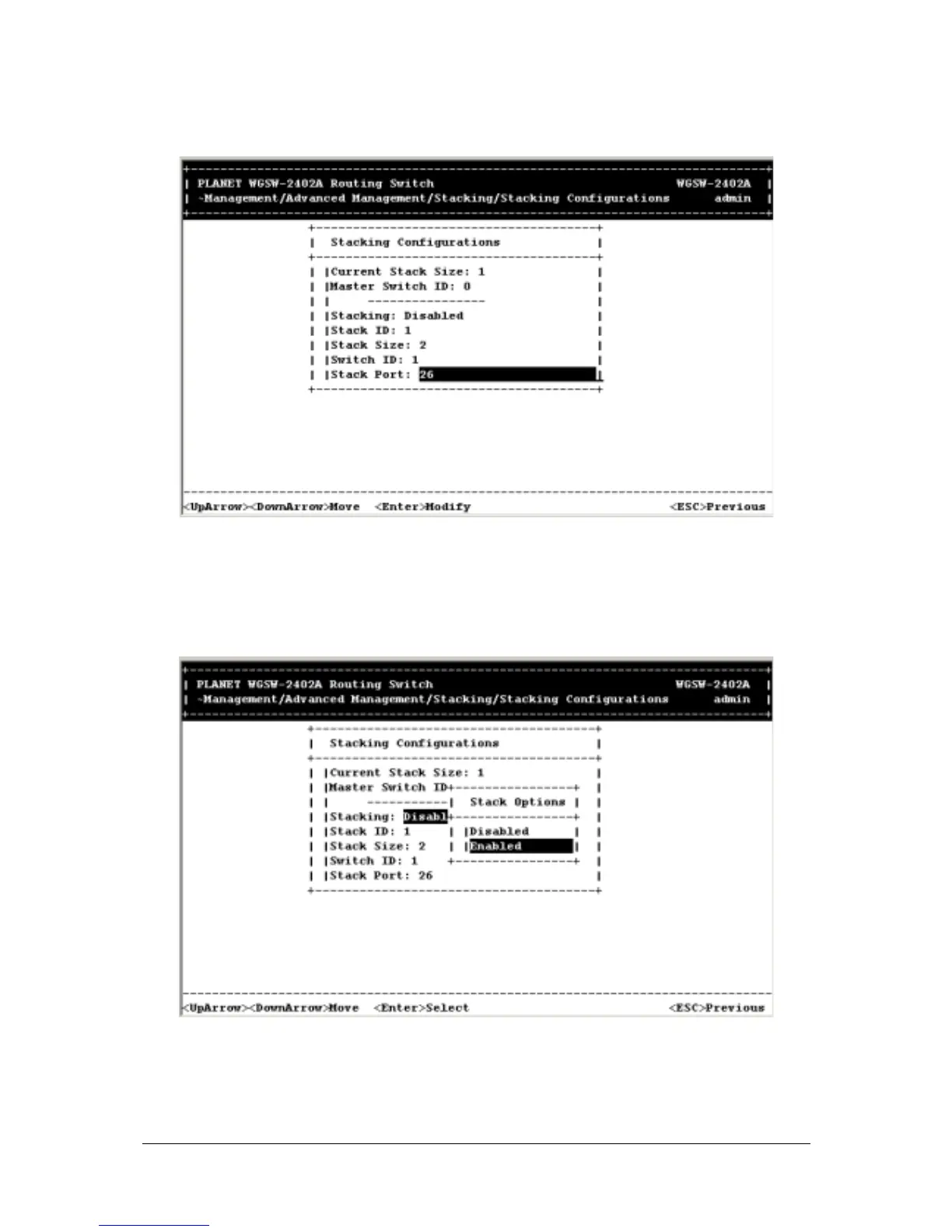

- 136 -
F
IGURE
5-110
6.
Use Up or Down arrow key to highlight the St
acking field. Press Enter and the Stack Optio
ns will
appear. Highlight Enabled and press En
ter.
F
IGURE
5-111
7.
Repeat step 1~5 to configure other switche
s to
be stacked. Note that t
he Stack ID should be the
same. The Switch IDs should be set different.
