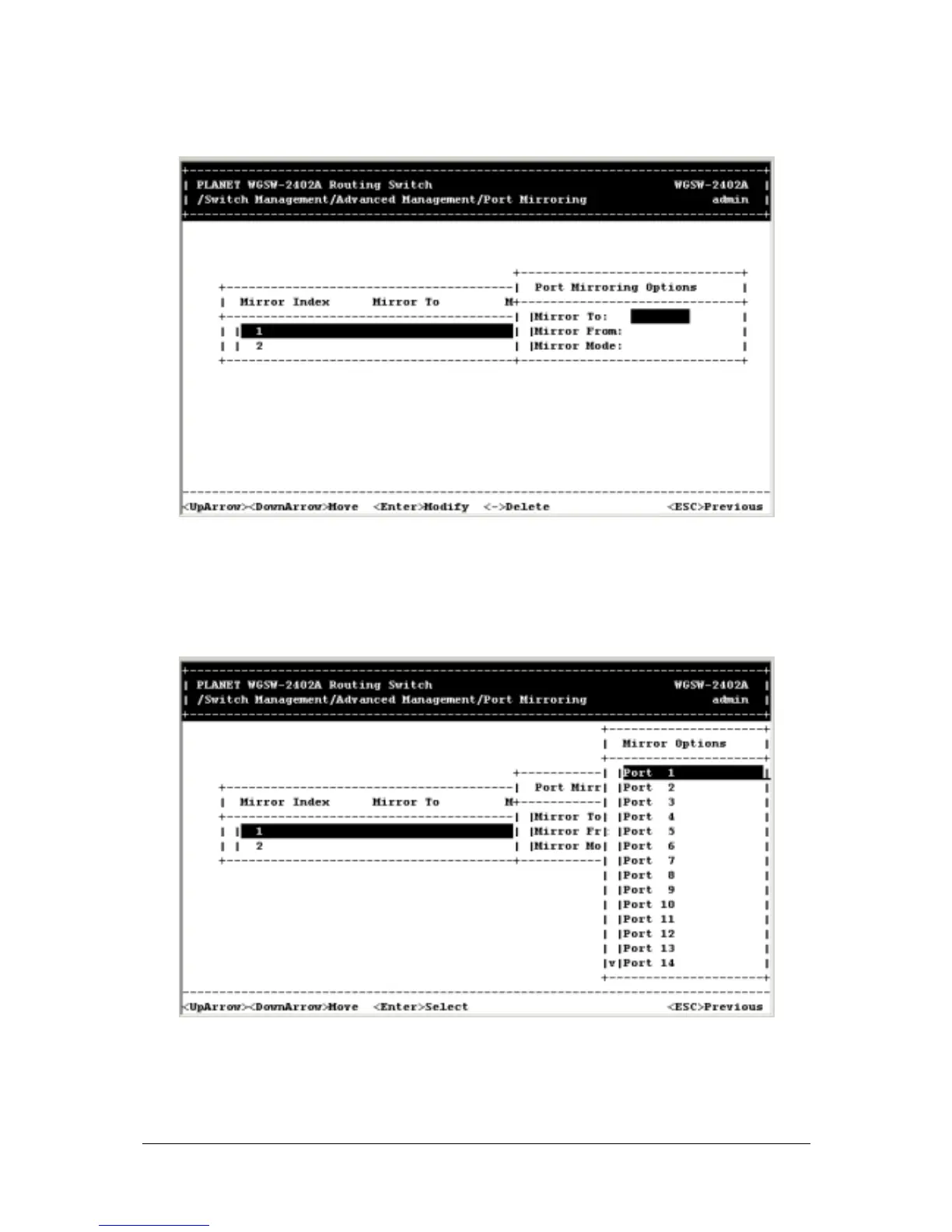

- 147 -
F
IGURE
5-127
3.
With the highlight on
Mirror To
, press the Enter key. A Mirror Options screen appea
rs, listing the
ports that can be mirrored to.
F
IGURE
5-128
4.
Press the Down Arrow key to high
light the port you want to mirror
to, then press Enter. The port you
selected appears next to
Mirror To
in the Port Mirroring Options screen.
