- 148 -
5. Press the Down Arrow key to highlight Mirror From and press the Enter key. A Mirror Options
screen similar to the one above appears, without the port you selected as the Mirror To port.
6. Press the Down Arrow key to highlight the port you want to mirror from, and then press Enter. The
port you selected appears next to Mirror From in the Port Mirroring Options screen.
7. Press the Down Arrow key to highlight Mirror Mode and press the Enter key. A Mode Options
screen appears.

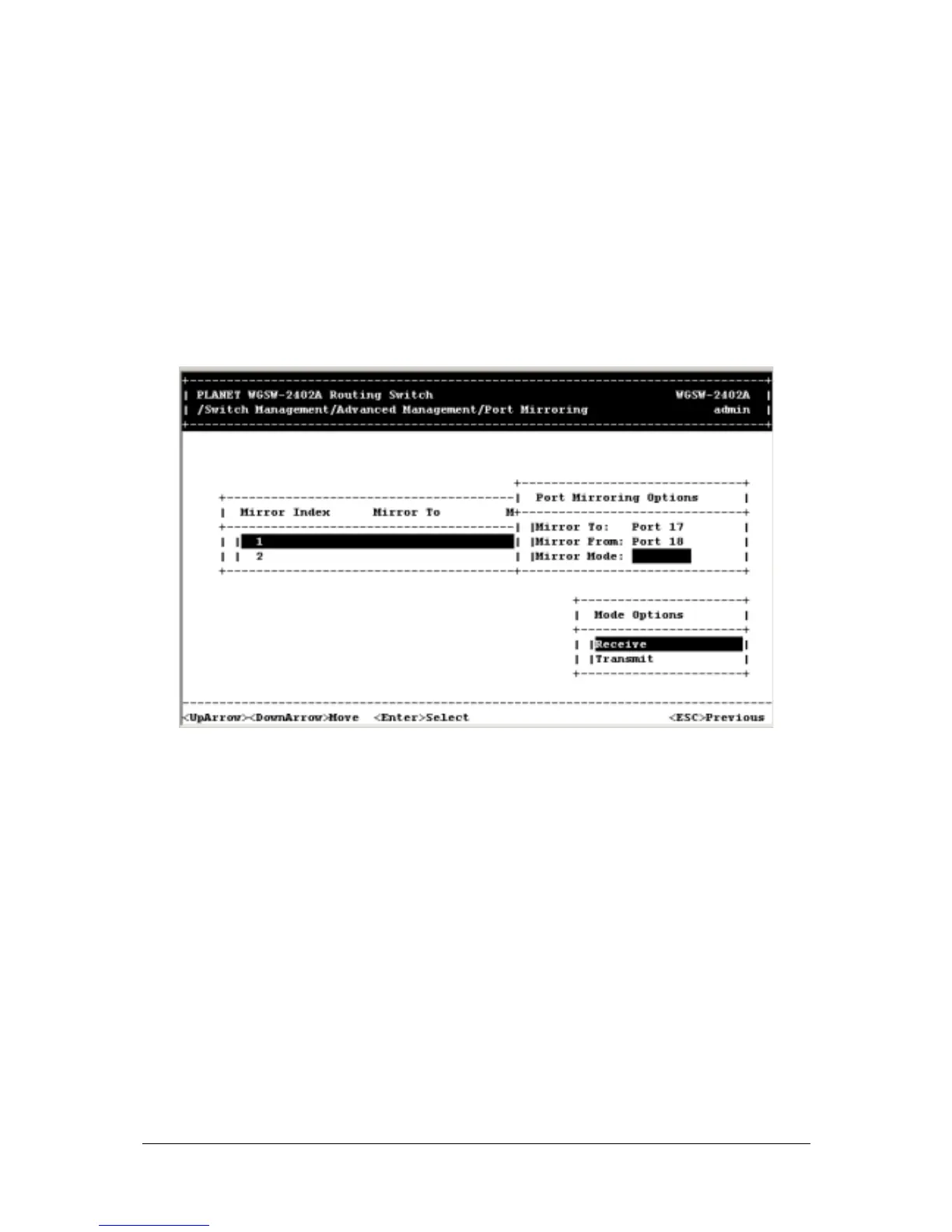

F
IGURE
5-129
8. Highlight whether the port to be mirrored from will be receiving or transmitting, then press Enter.
Your selection appears next to Mirror Mode in the Port Mirroring Options screen.
9. Press Esc. Your selections appear in the Port Mirroring Options screen.
