- 160 -
5. Highlight whether you want to enable or disable DiffServ Expedite Forwarding, and then press the
Enter key. Your selection appears next to DiffServ Expedite.
6. Press the Down Arrow key to highlight Tos/VLAN Tag.

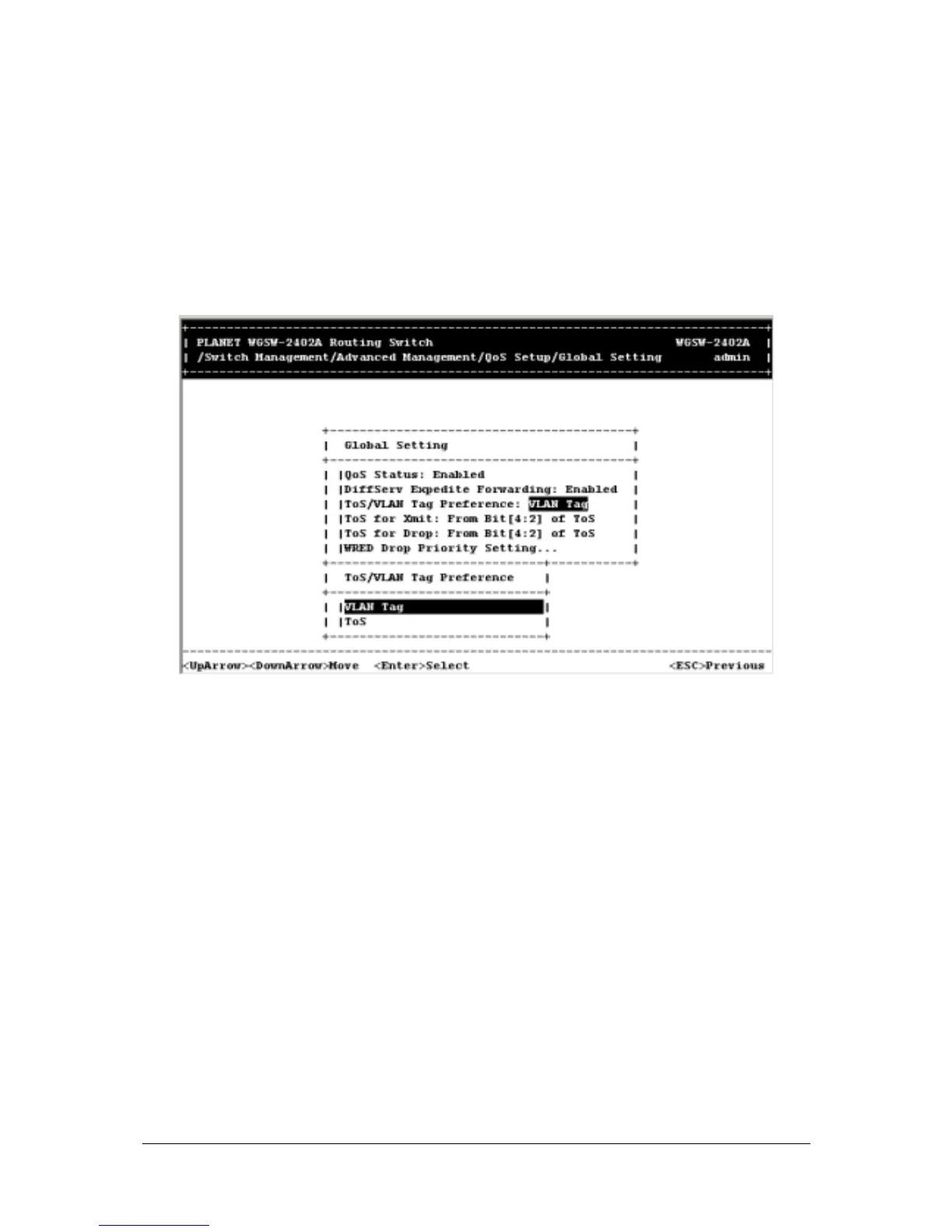

7. Press the Enter key. The ToS/VLAN Priority Tag menu appears.
F
IGURE
5-136
8. Highlight the desired setting, then press the Enter key. The setting you select appears next to
ToS/VLAN Tag.
9. Press the Down Arrow key to highlight ToS for Xmit and ToS for Drop. These two options allow
you to specify which ToS bit on IP header should be used to map to priority queue for transmit and
drop.
10. Press the Down Arrow key to highlight WRED Drop Priority Setting. The WRED Drop Priority
screen appears.
