- 161 -

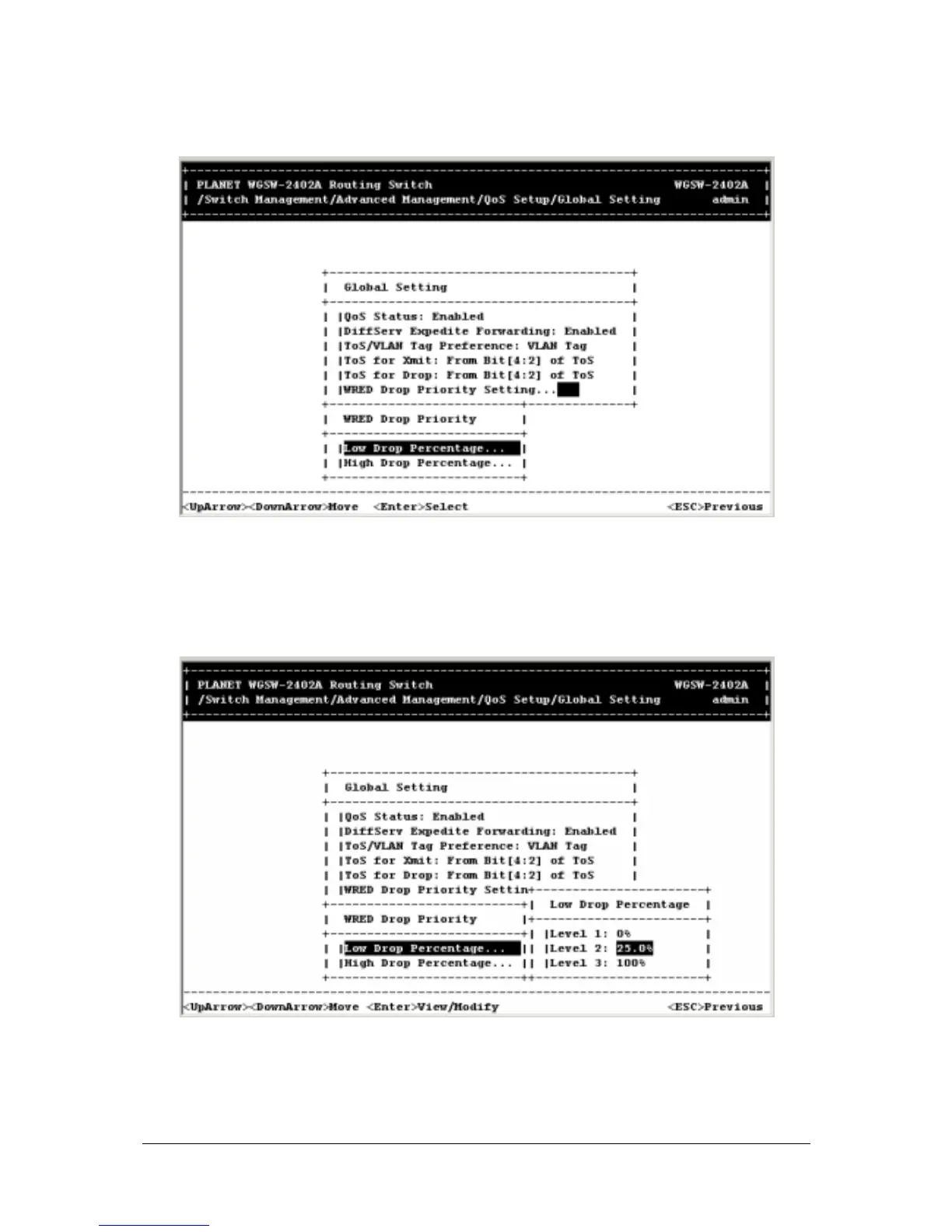

F
IGURE
5-137
11.
To change the low-drop percent
age, press the Enter key with
Low Drop Percentage
highlighted.
The following screen appears.
F
IGURE
5-138
12.
Levels 1 and 3 remain fixed at 0% and 100%, resp
ectively.
To change the percentage for level 2,
highlight
Level 2
and press Enter. The f
ollowing options appear.
168
170
