- 208 -
F
IGURE
6-12

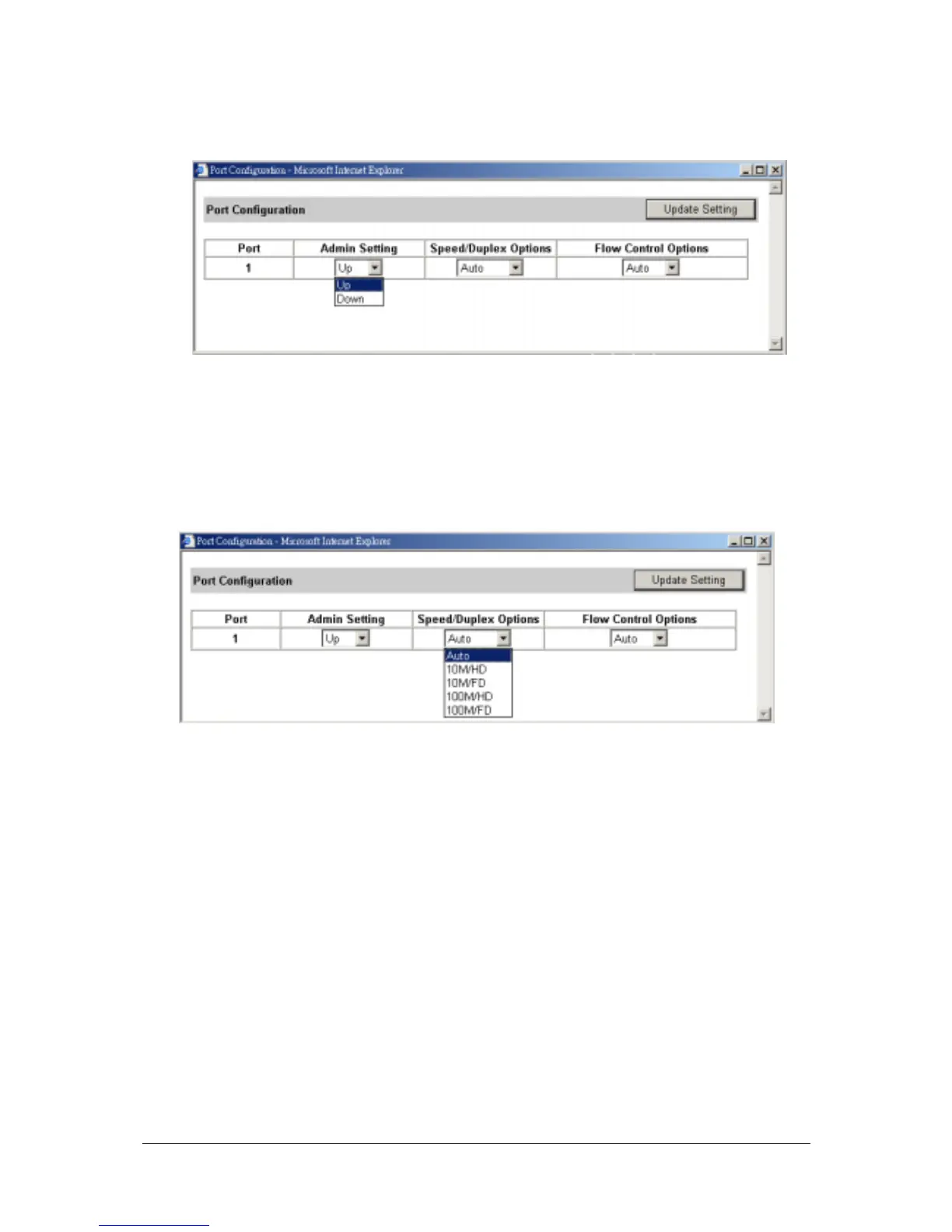

4. To change the line speed and duplex settings, click an option under Speed/Duplex Options.
Auto allows the Switch to automatically ascertain the line speed and duplex mode.
All the other selections force the Switch to use a specific line speed and duplex mode.
F
IGURE
6-13
5. To configure the flow control for this port, click the flow control option under Flow Control Options.
Auto allows the Switch to automatically ascertain whether or not to use flow control.
Enable turns on flow control at all times.
Disable turns off flow control at all times.
