Programming and Operation, continued
30
4. Select OK to move the markers to the Alarm
Sensor field.
5. If your system uses an Alarm Sensor, change
the status from Passive to Active.
6. Select OK to lock in your setting and return to
the Set-up Data menu.
Setting Up a Sensor Decoder
The MDC2 Controller can control a variety
of sensors (Flow, On/Off, Generic), which are
powered by a Sensor Decoder through the two-wire
communications cable.
Note: Please refer to Appendix IV for detailed
information about the terms and units of measure
mentioned in this section.
Programming a Sensor Decoder

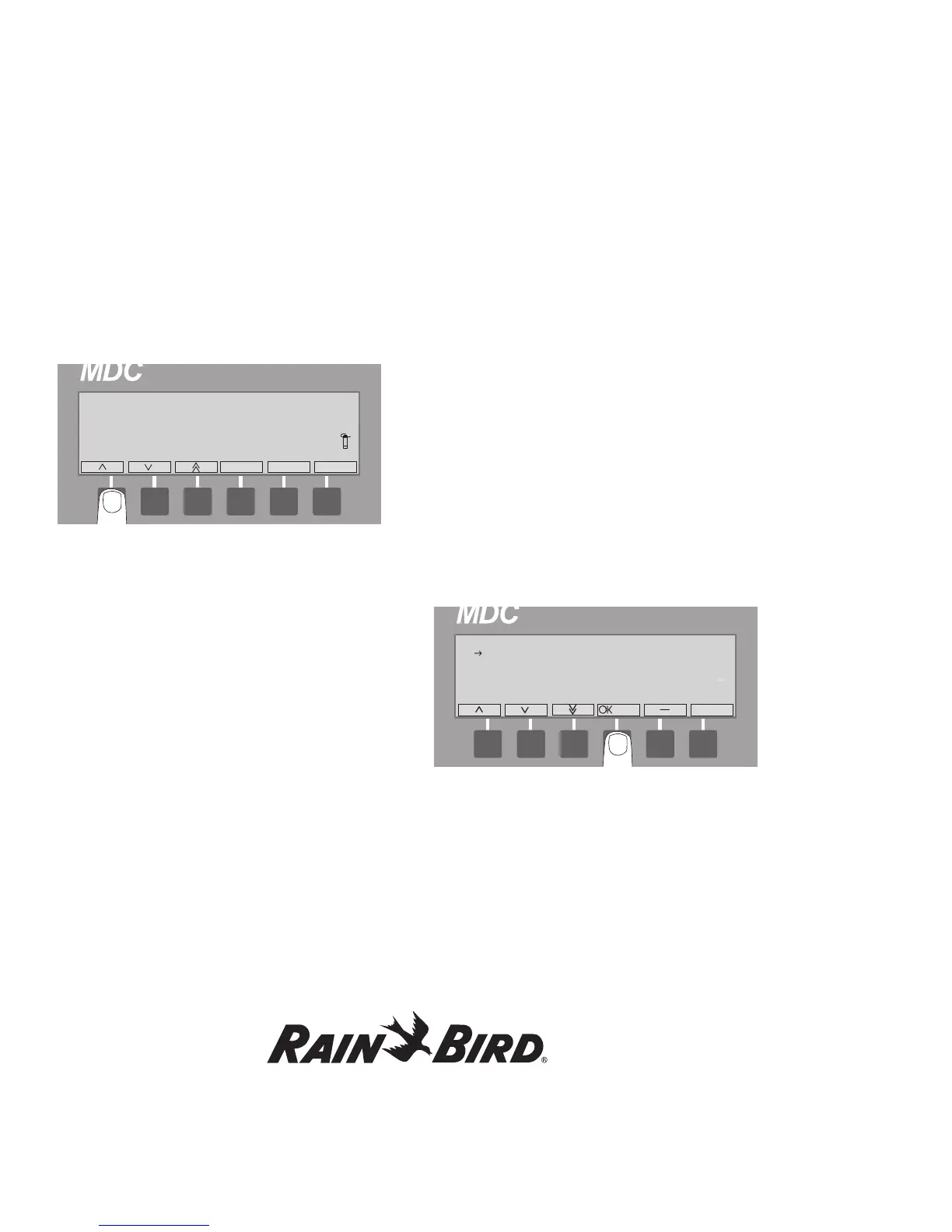

1. From the Main Menu, select 1. Set-up Data and
select OK.
The Set-up Data Menu appears.
2. Move the indicating arrow to 6. Sensor Decoder
and select OK to reach Sensor Decoders screen.
3. Move the indicating arrow to any desired sensor
row and select OK.
The Sensor Decoder Set-up screen appears.
To Next Page
