Programming and Operation, continued
35
Setting the Switch Settings
Switch Settings lets you change from using the Full
range of alphanumeric characters to using limited
characters (to name field decoders.) The limited
characters match the sixteen character keyboard on
FT-210 Field Transmitters. You also use the Switch
Setting to define the rain and alarm sensors.
Switching the alphabet
1. From the Main Menu, move the indicating
arrow to 1. Set-up Data and select OK.
2. Move the indicating arrow to 8. Switch
Settings and select OK to reach the Switch
Settings menu.
3. With the indicating arrow at 1. Alphabet, select
OK. The current setting appears between the
two markers. A blinking black box in the first
character position shows the field is active. The
current controller Software Firmware Versions
also appear on the display screen.
4. Use the up and down arrows to select either
the Full or 1234567890CTFGV (the limited
alphabet setting).
5. Select OK to return to the Switch Settings
menu. Selecting minus (-) cancels the Alphabet
change and returns to its previous setting.
Turning on an installed rain sensor
1. From the Switch Setting menu, move the
indicating arrow to 2. Rain Sensor and select
OK. The current setting appears between the
two markers. A blinking black box in the first
character position shows the field is active.
2. Use the up and down arrows to select between
Normally open or Normally closed.

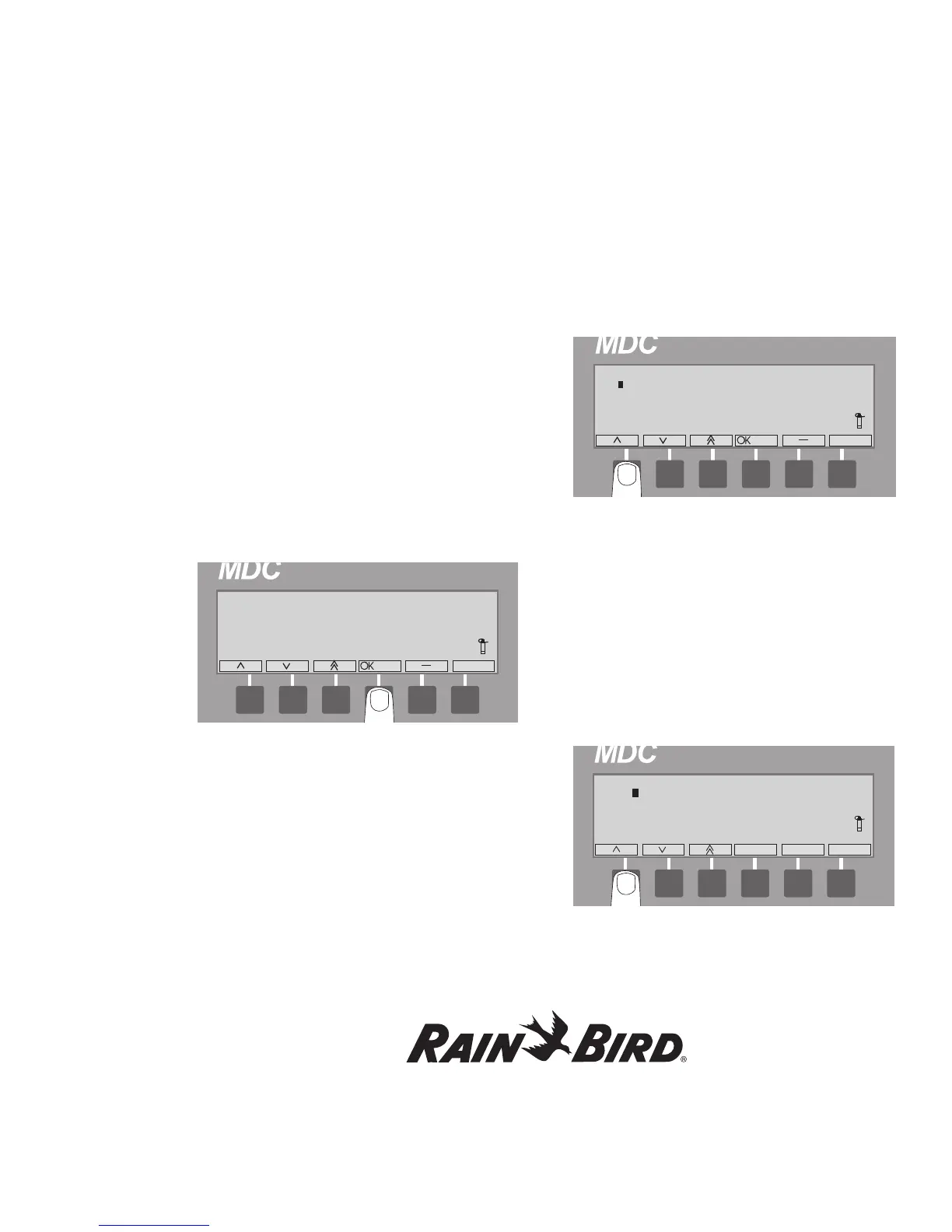

** Switch Settings **
1. Alphabet
2. Rain Sensor
3. Alarm Sensor
4. Return
12:34 PM
Alphabet
> 234567890CTFGV<
Versions:
Firmware 1.26b4 MDC-50/RBT
SensDec 1.15
12:36 PM
Rain Sensor
> ormally closed<
OK
14:02:30
