1. Pull back the two side latches.
2. Pull the battery pack vertically away from the charger.

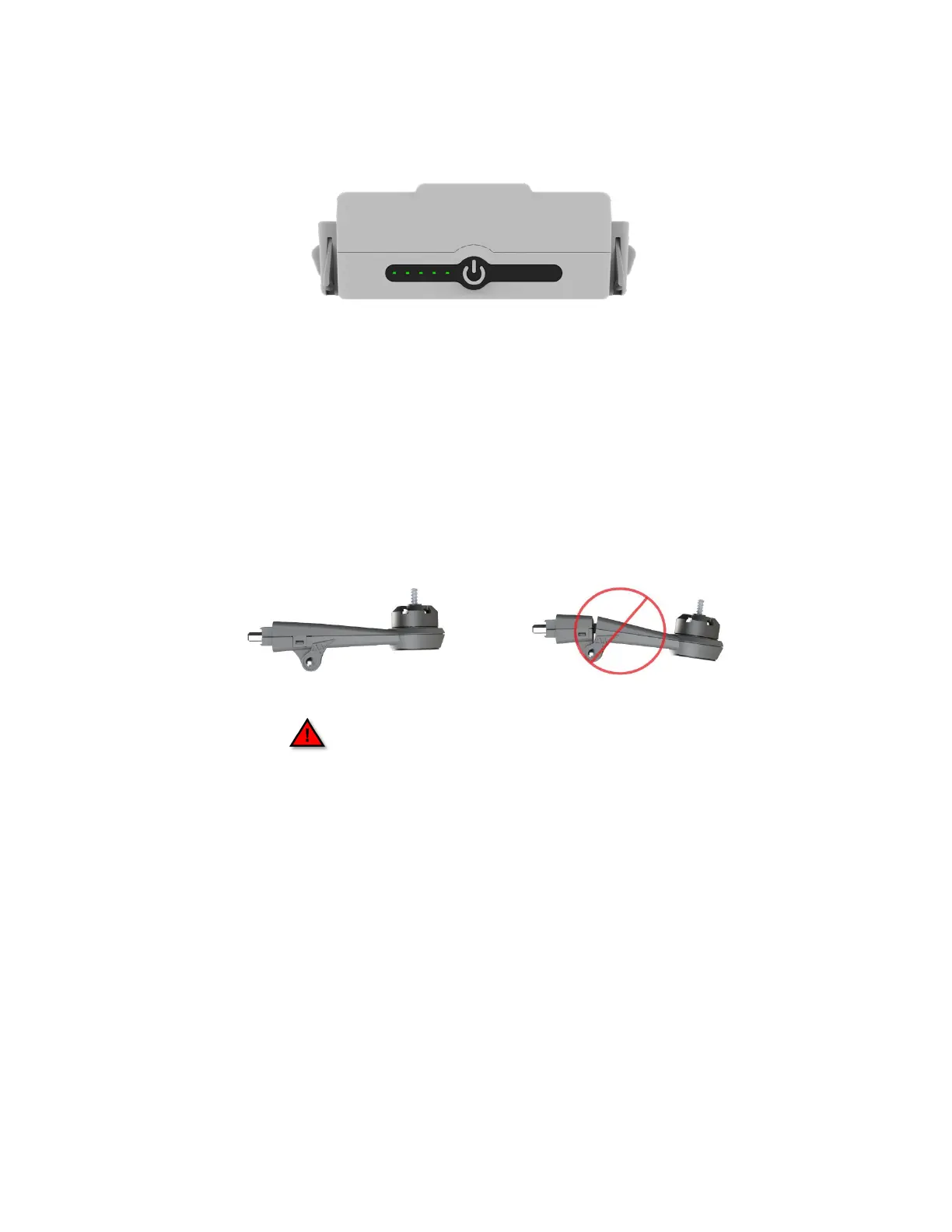

All five LED lights illuminate when the battery pack is completely charged.
2.2 PREPARE THE AV FOR FLIGHT
To prepare the AV for flight:
1. Inspect arms for airworthiness. Check for damages such as cracks, separated seams,
or fractured.
2. Attach the arms to the AV.
a. Insert the clockwise (CW) and counterclockwise (CCW) arms into their
corresponding sockets. CW arms do not fit into CCW arms. CCW arms do not
fit into CW arms.
b. Make sure all four arms lock into their fully extended position.
WARNING
Replace the arm if the arm lock
mechanism is worn and does not
lock.
3. Inspect the propellers for airworthiness. Check for damages such as warped,
chipped, or cracked propellers.
4. Attach the propellers to the arms.
a. Match the clockwise (CW) black propeller rivets to the CW black ring on the
propeller motor.
b. Match the counterclockwise (CCW) silver propeller rivets to the CCW silver
ring on the propeller motor.
c. Align and insert the three legs on the underside of the propeller into the three
slots on the motor.
d. Push down to compress the spring on the shaft.
e. Rotate a quarter turn until it hits its mechanical limit.
f. Allow the spring to push up the hub into its locked position.
