RED CAT TEAL 2 - Camera Control Panel; Photo Mode; Video Mode

50

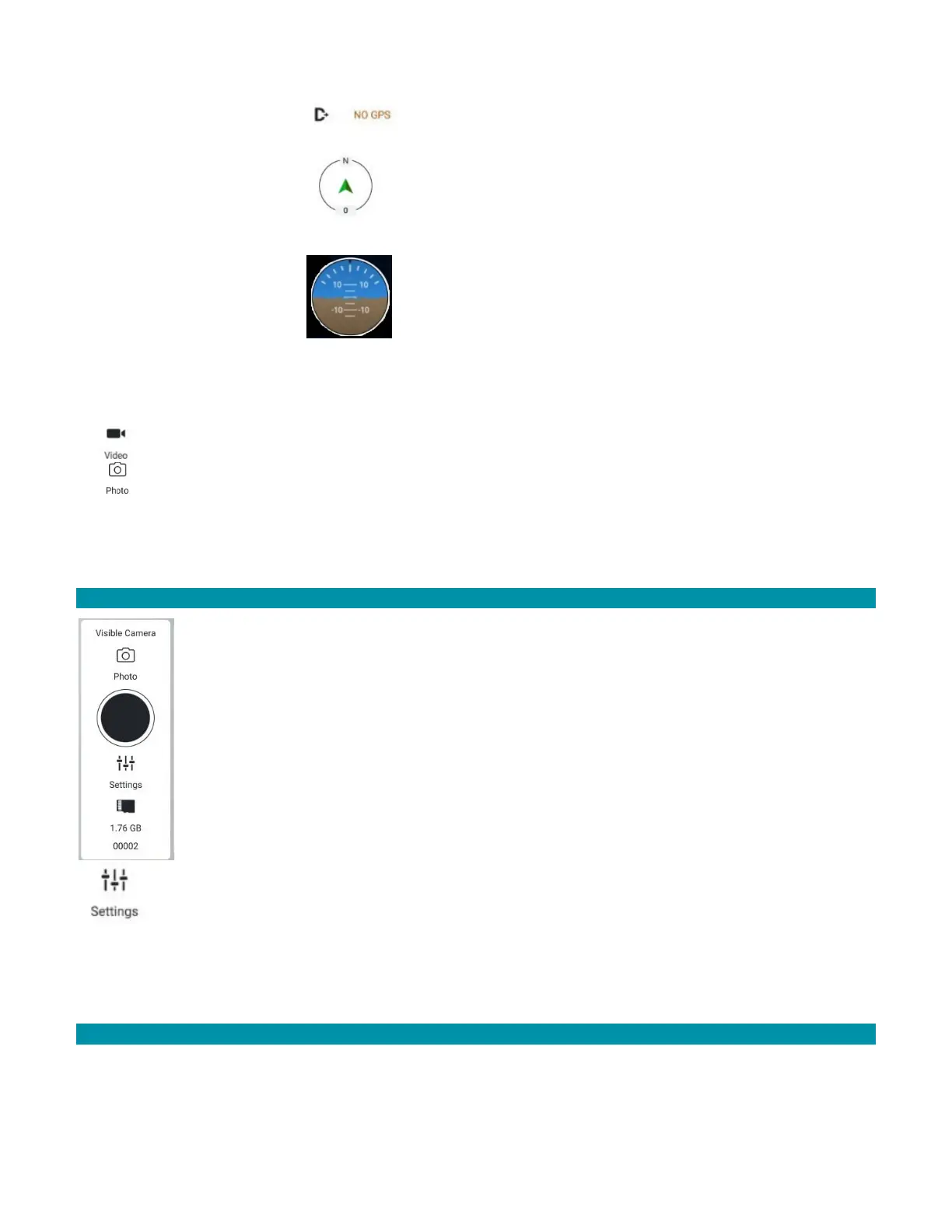

GPS status
Heading of the AV from
true north (not magnetic)
Attitude indicator, also
known as “artificial
horizon,” which shows the
AV relative to the Earth’s
horizon
6.4 CAMERA CONTROL PANEL
Touch the Video icon or the Photo icon to toggle back and forth from live video
to taking photos.
Alternatively, press the lower left button on the rear-panel of the GCS to toggle
between video and still photos. The icons will behave as described above to indicate which
mode the system is in.
6.4.1 PHOTO MODE
Touch the black circular icon to snap a photo. A rotating circular icon appears
briefly in the middle of the button while the photo is being processed. When
the photo is processed, the black circle icon will reappear.
The amount of storage remaining is indicated below the Settings icon, and the
number of photos taken is also seen at the very bottom of the window.
Alternatively, press the front lower right button on the GCS to take photos.
The icons will behave as described above to indicate whether a photo is being
processed.
Touch the Settings icon to open the Photo Settings window. Select EO or IR
(Boson) cameras, select gimbal controls, and turn on/off the screen grid and
gimbal control graphics on the Fly View.
Alternatively, press the upper left switch button on the rear-panel of the GCS to toggle
the active camera between EO and IR.
6.4.2 VIDEO MODE
To record a video:
