Block Diagram
Components marked with gray background color: Optional, depending
on the application

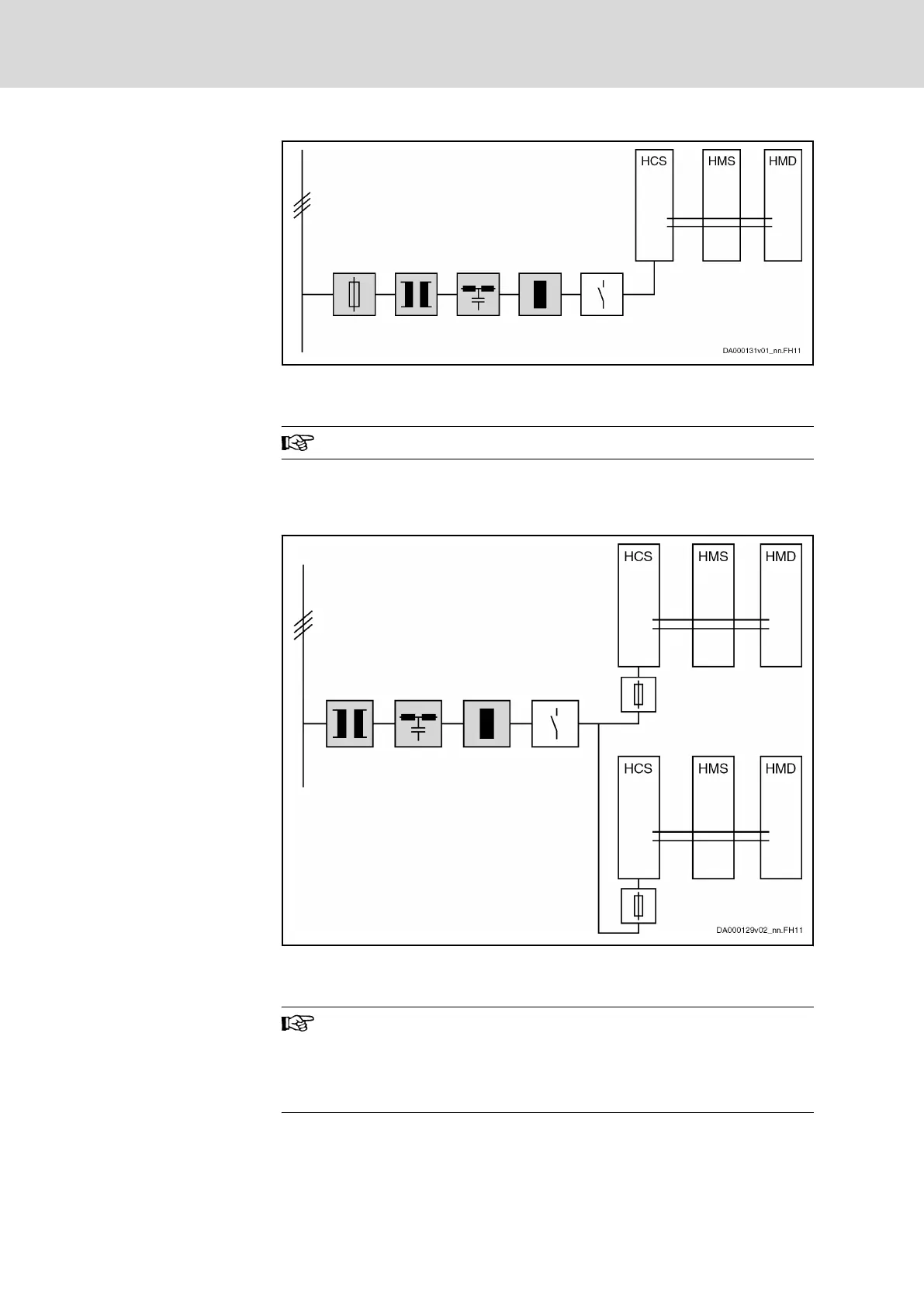

Fig.8-4: Central Supply HCS
Use HNF mains filters and HNL mains chokes.
The "group supply without DC bus connection of the groups" allows using the
additional components (HNL, HNF etc.) in the mains connection for several
similar supplies.
Components marked with gray background color: Optional, depending
on the application
Fig.8-5: Group Supply HCS Without Connection of the Groups
When dimensioning the fuses in the supply feeder and in branch‐
es, make sure to provide protection against overcurrent and over‐
load in the case of error.
See chapter 15.3.5 "Dimensioning the Line Cross Sections and
Fuses " on page 266
Bosch Rexroth AG DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
100/309
Configuring the Drive System
