Connection to Equipment Grounding System in Control Cabinet

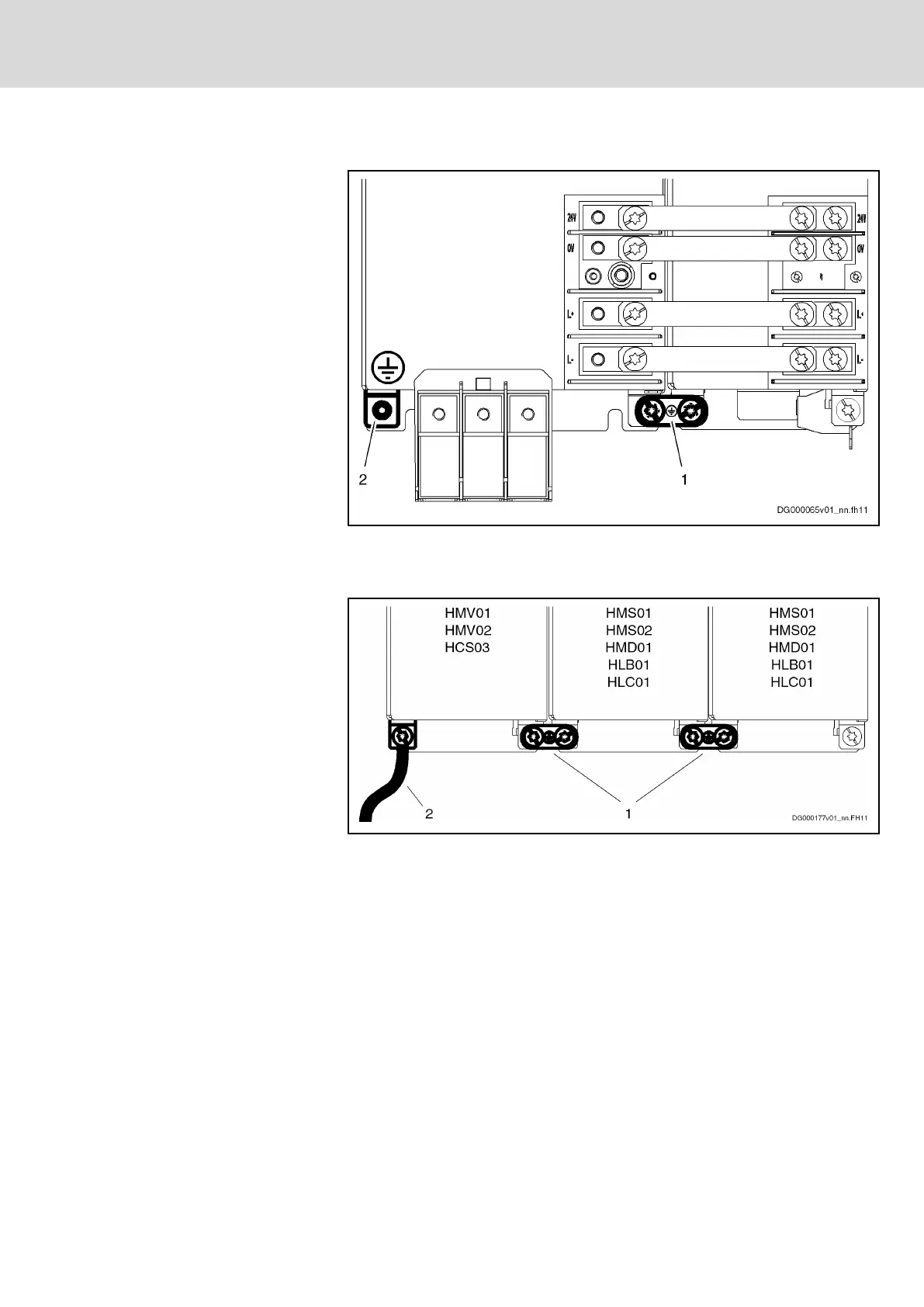

1 Joint bar
2 Connection point for connection to equipment grounding system in
control cabinet
Fig.13-3: Equipment Grounding Connections
1 Joint bar
2 Connection to equipment grounding system
Fig.13-4: Equipment Grounding Connection in the Case of Supply via HMV01,
HMV02 or HCS03
