1.4.2 Drive Systems with KCU02
Drive System Rexroth IndraDrive with HMV01 Supply Unit:
24V 24V supply
DST Transformer (optional)
F Fuses
HMD, HMS Inverter (optional)
HMV01 Supply unit
HNF Mains filter
HNL Mains choke
K1 Mains contactor (only for supply units without integrated mains con‐
tactor, e.g. HMV01.1R-W0120)
KCU Drive connection box
KSM Motor-integrated servo drive
MSK Servo motor (optional)
RHS Terminal connector
RKB Communication cable
RKG Encoder cable (optional)
RKH Hybrid cable
RKL Motor cable (optional)
X14 Mains synchronization (only with regenerative HMVs)
X103.1 Connection of hybrid cable RKH at first KSM

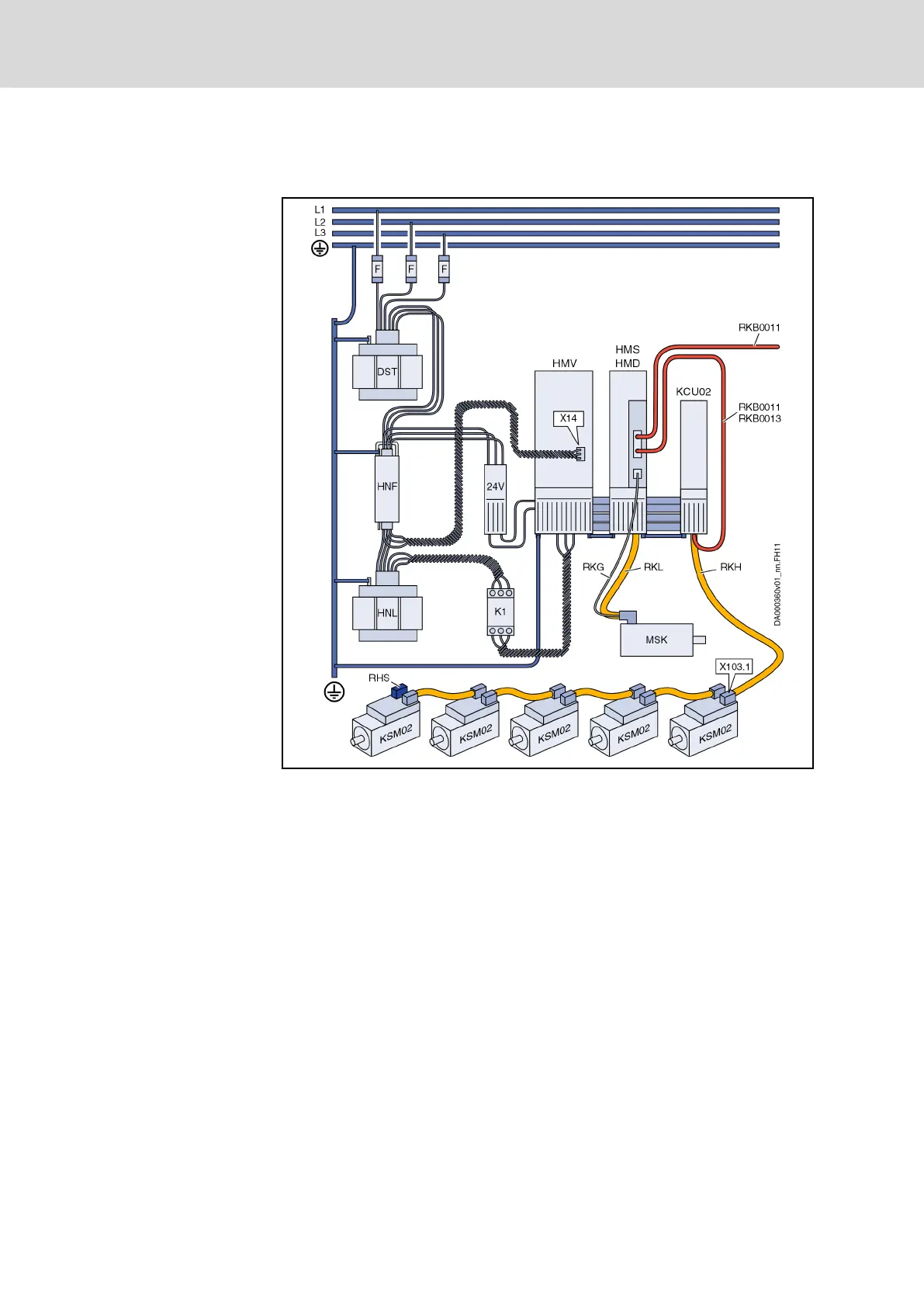

Fig.1-7: Drive System Rexroth IndraDrive with HMV01
