Maximum length between drive systems and drive controllers
Multiple-line arrangement or distance between the devices re‐
quires the accessory RKB0001 for the module bus connection be‐
tween the devices.
The maximum length of the accessory RBK0001 limits the length
of the DC bus connection to be achieved between drive systems.
Cable Routing to the Left
Damage caused by voltage arcing!
Insulate ring terminals and connection lines with a heat-shrinkable sleeve. Af‐
terwards, only strip the insulation of the contact surface of the ring terminal.
Make connections according to figure.

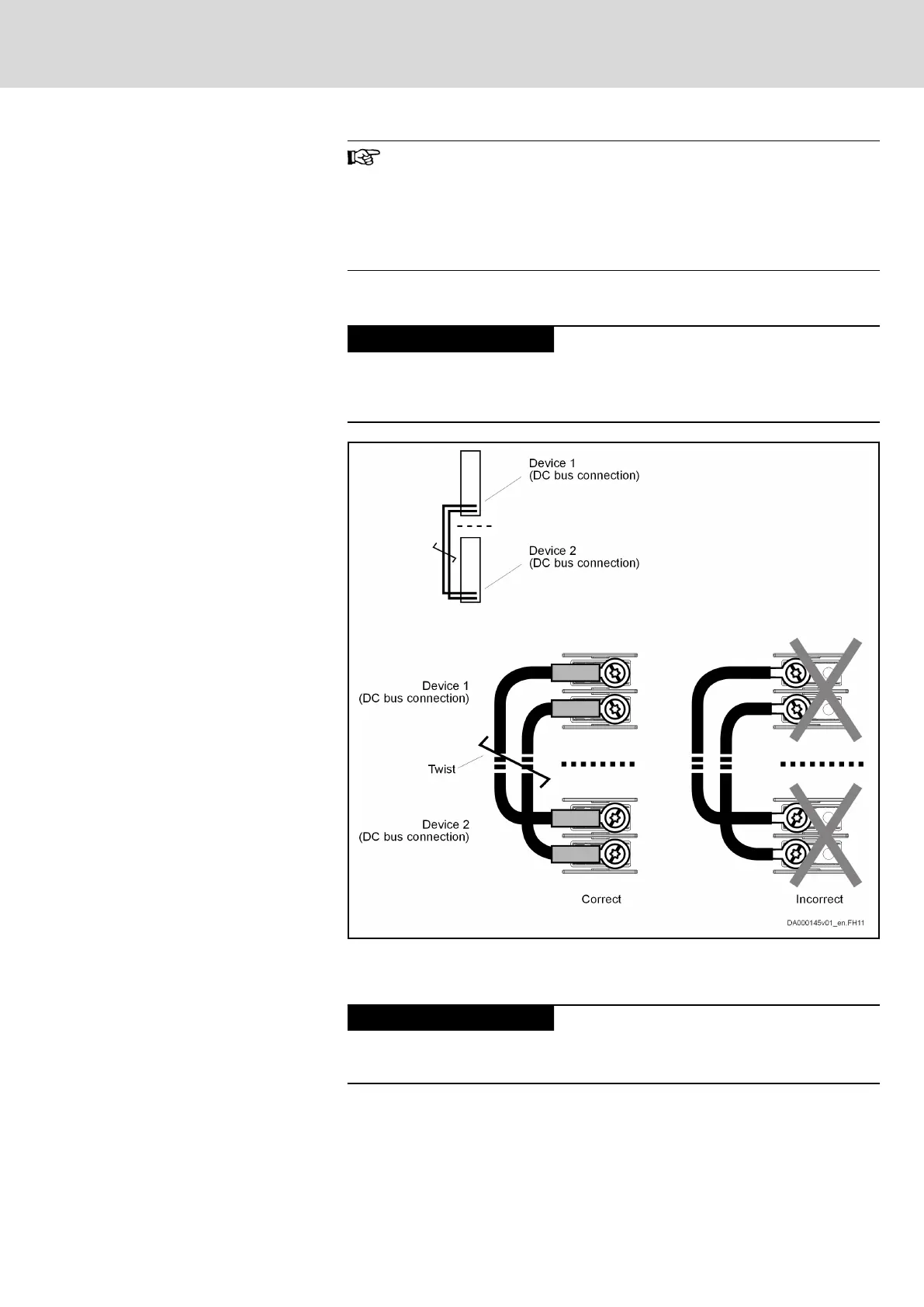

Fig.13-8: DC Bus Connections for Cable Routing to the Left
Cable Routing to the Right
Damage caused by voltage arcing!
Insulate ring terminals and connection lines with a heat-shrinkable sleeve. Af‐
terwards, only strip the insulation of the contact surface of the ring terminal.
