Fusing by Protective Grounding in TN-S Mains
A) Control cabinet
B) Error
① Joint bar equipment grounding conductor
② Aim of protective measures: Contact voltage < 50 V at housing
③ DC bus connection L+/L-

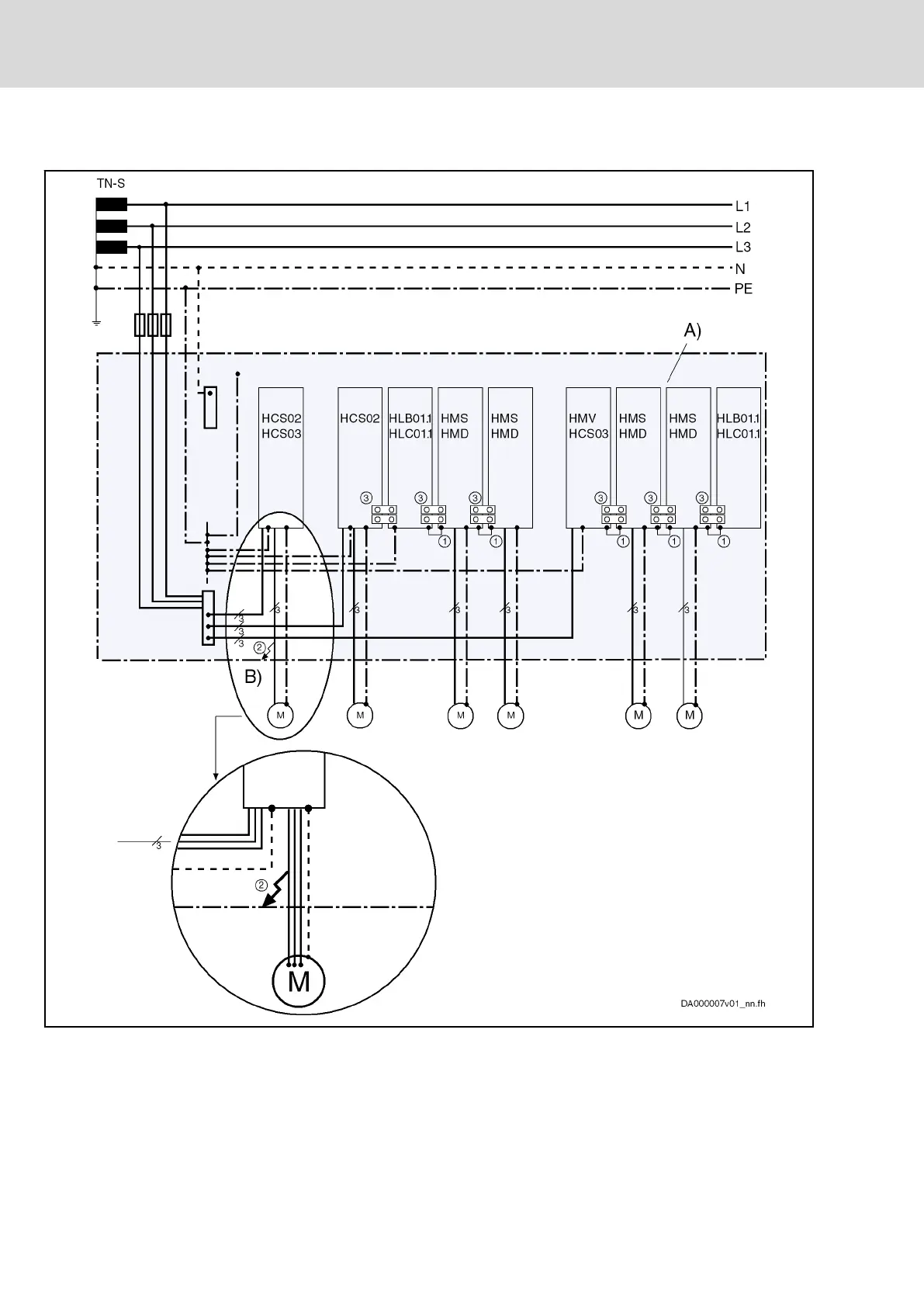

Fig.7-11: Protection Against Contact by Protective Grounding with Overcurrent
Protection Device in TN-S Mains
