10 Electromagnetic Compatibility (EMC)
10.1 EMC Requirements
10.1.1 General Information
The electromagnetic compatibility (EMC) or electromagnetic interference
(EMI) includes the following requirements:
● Sufficient noise immunity of an electric installation or an electric device
against external electric, magnetic or electromagnetic interference via
lines or through air
● Sufficiently low noise emission of electric, magnetic or electromagnetic
noise of an electric installation or an electric device to other surrounding
devices via lines or through air
10.1.2 Noise Immunity in the Drive System
Basic Structure for Noise Immunity
The figure below illustrates the interfaces for definition of noise immunity re‐
quirements in the drive system.

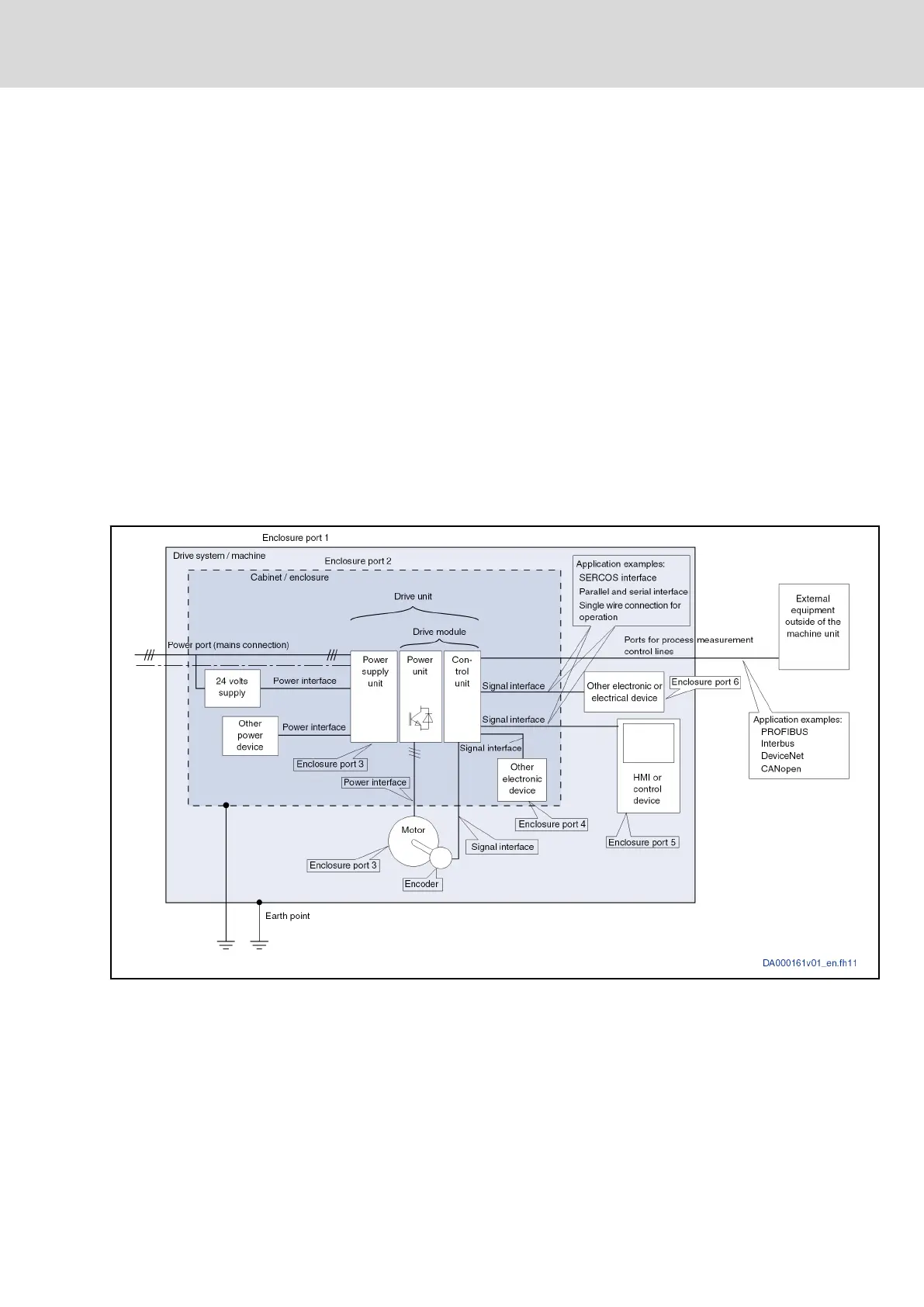

Fig.10-1: Basic Structure and Noise Immunity
