Cable Routing to the Right

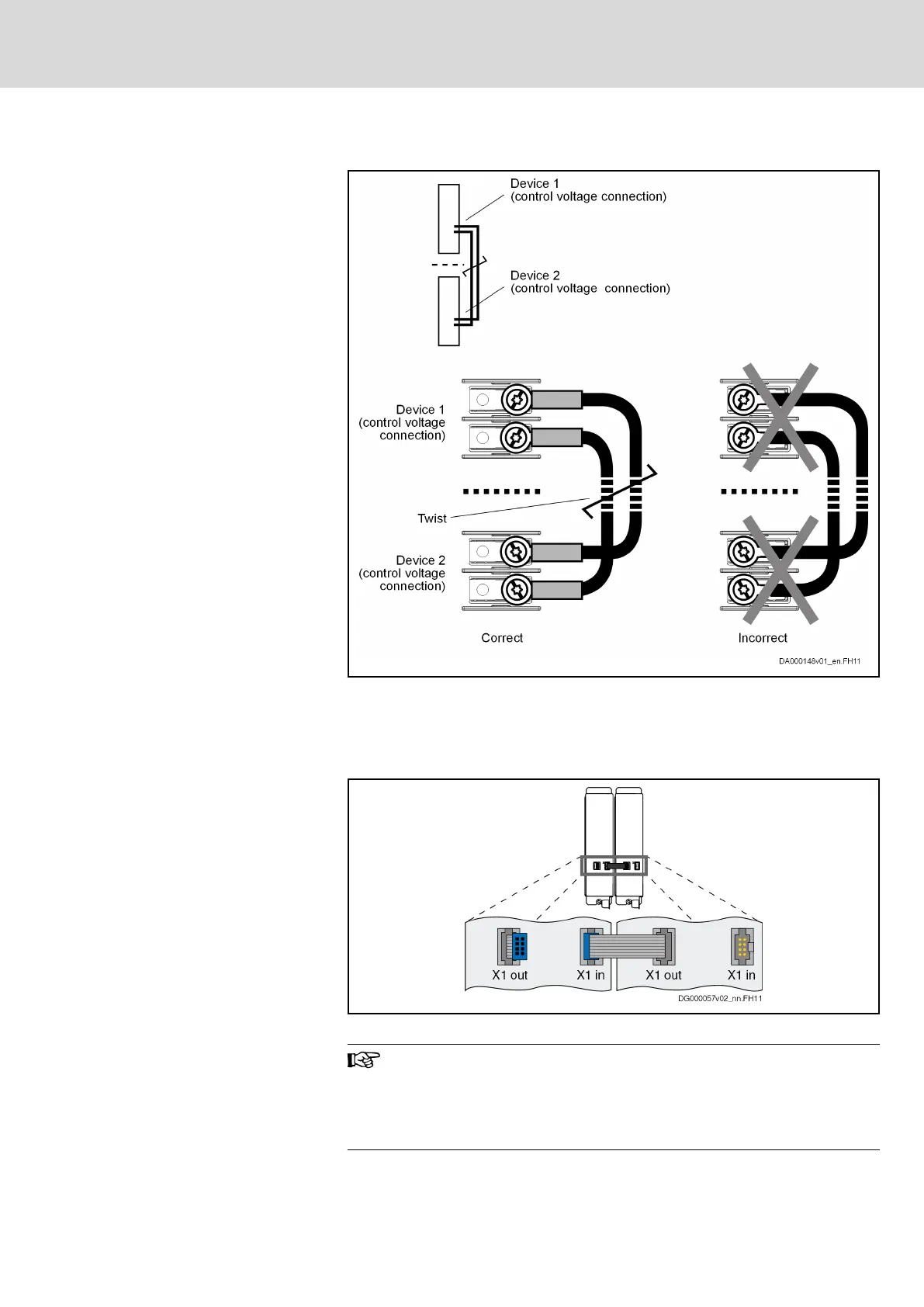

Fig.13-12: Control Voltage Connections for Cable Routing to the Right
13.1.8 Module Bus Connection X1
The module bus connection is used for signal exchange within the drive sys‐
tem and takes place via the supplied ribbon cables.
Graphic Representation
Fig.13-13: X1
When extension cables are used for the module bus, they must
be shielded. Their total length mustn't exceed a maximum of
40 m.
To extend the module bus connection, the accessory RKB0001 is
available.
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 235/309
Connections of the Components in the Drive System
