1.5 Combinations of Rexroth IndraDrive C with
Rexroth IndraDrive M and Rexroth IndraDrive Mi
On the common Rexroth IndraDrive platform, it is possible to combine the
components of the product ranges Rexroth IndraDrive C, Rexroth
IndraDrive M and Rexroth IndraDrive Mi to form drive systems of optimum
costs and performance.
To supply the components of the product range Rexroth IndraDrive Mi (KCU
with KSM/KMS), you can use:
● Modular HMV01 and HMV02 supply units
● HCS02 and HCS03 converters
Allowed combinations of components: See chapter 8 "Configuring the Drive
System" on page 93
1.6 Basic Design of the Devices
1.6.1 General Information

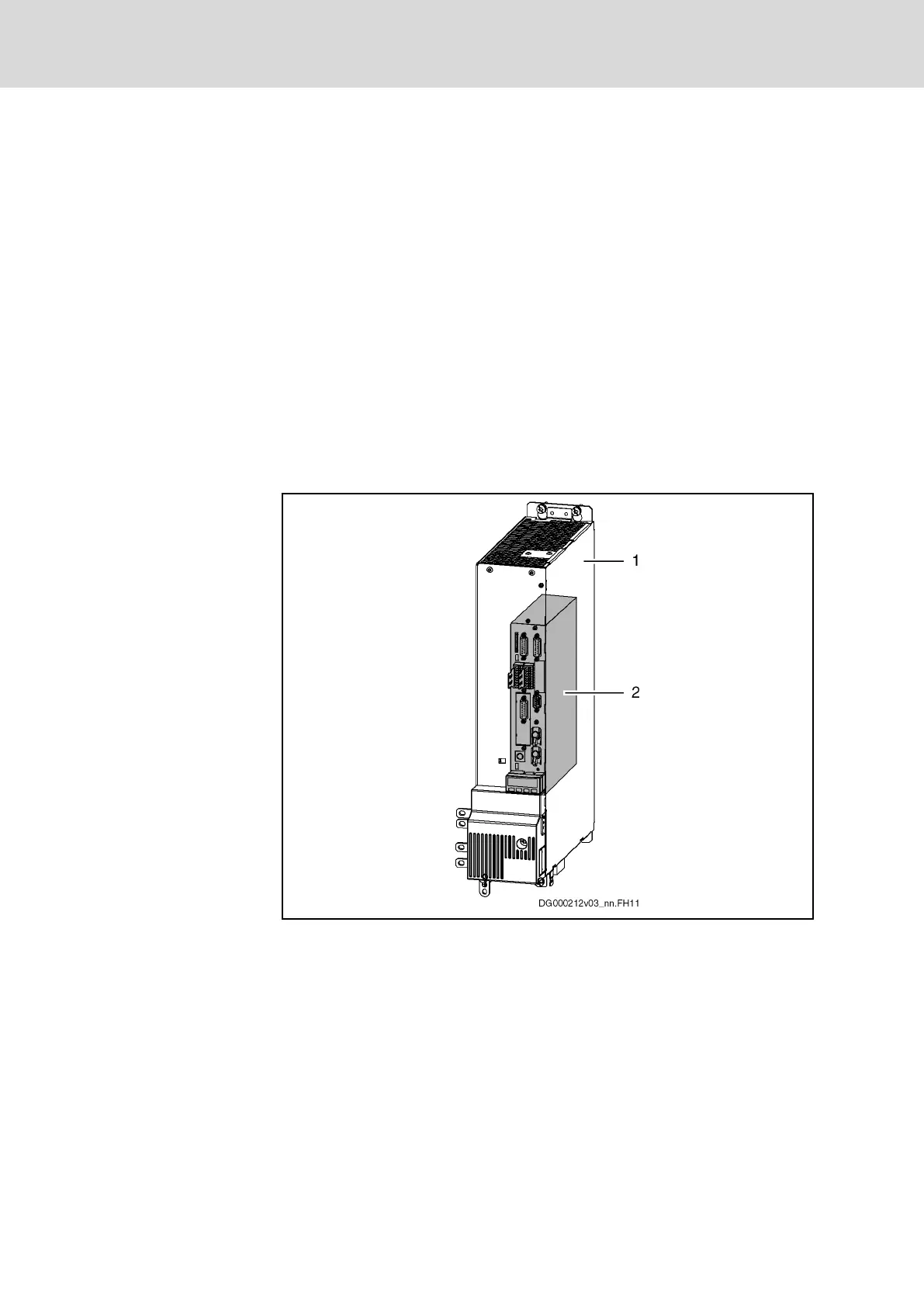

1 Power section
2 Control section
Fig.1-11: Basic Design of a Drive Controller
A drive controller consists of two essential parts:
● Power section
● Control section
1.6.2 Power Section
The power section incorporates the control section and has the following con‐
nections:
● Mains voltage connection (at HCS devices)
