11.1.3 Boring Dimensions for the Mounting Plate
Individually Arranged Devices

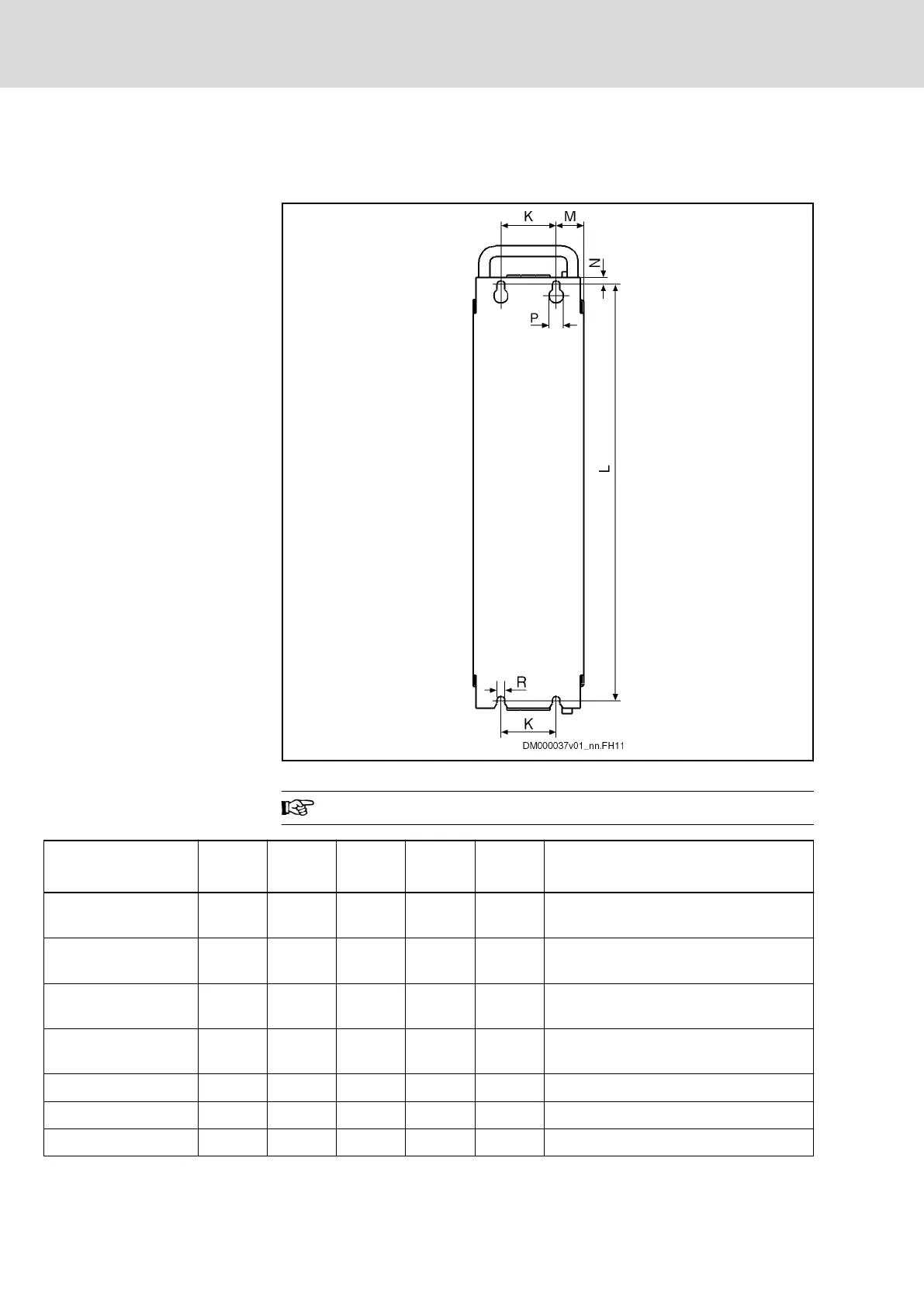

Fig.11-4: Boring dimensions
The figure shows the back of a device.
Device K
[mm]
L
[mm]
M
[mm]
P
[mm]
R
[mm]
Notes
HCS02.1E-W0012 0 316 32,5 13 7 Observe additional distance to lateral
neighboring devices
HCS02.1E-W0028 0 378 32,5 13 7 Observe additional distance to lateral
neighboring devices
HCS02.1E-W0054 55 378 25 13 7 Observe additional distance to lateral
neighboring devices
HCS02.1E-W0070 55 378 25 13 7 Observe additional distance to lateral
neighboring devices
HCS03.1E-W0070 75 466 25 13 7
HCS03.1E-W0100 175 466 25 13 7
HCS03.1E-W0150 175 466 25 13 7
