Combination of Devices of the Rexroth IndraDrive M Product Range

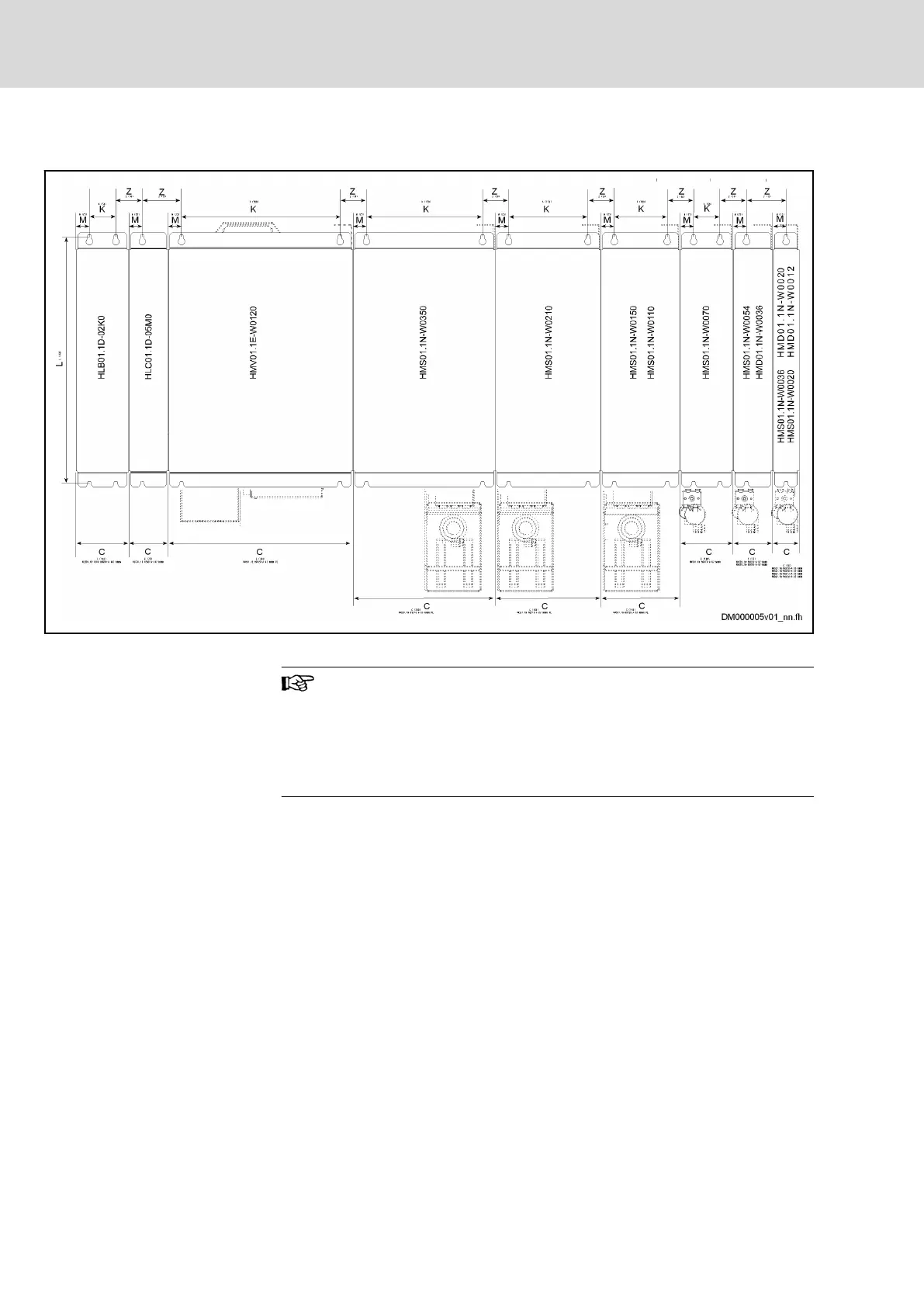

Fig.11-5: Rexroth IndraDrive M Devices
The prevailing grid of mounting holes within the
Rexroth IndraDrive M product range is 25 mm.
Arrange the drive controllers with high capacity as close to the
supplying device as possible.
The HAS02 accessories in the figure require additional downward
mounting clearance.
Dimension Z is significantly determined by the involved devices. The table
below contains the dimensions Z between the device arranged to the left and
the device arranged to the right.
Bosch Rexroth AG DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
196/309
Arranging the Components in the Control Cabinet
