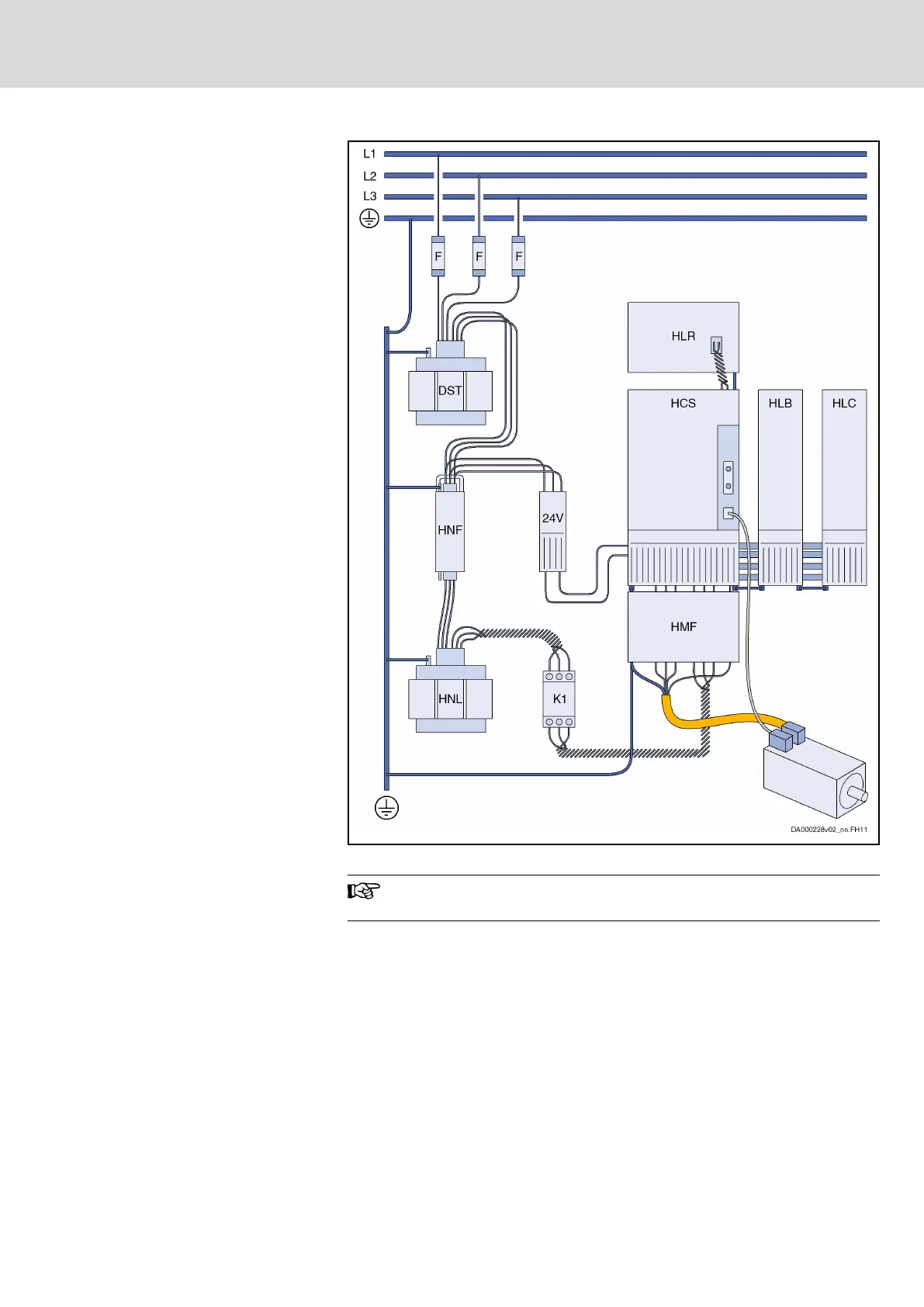

Fig.1-1: Drive System Rexroth IndraDrive C
When using an HNK mains filter at HCS03 devices, connect the
mains contactor between mains supply and mains filter.
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 13/309
System Presentation
