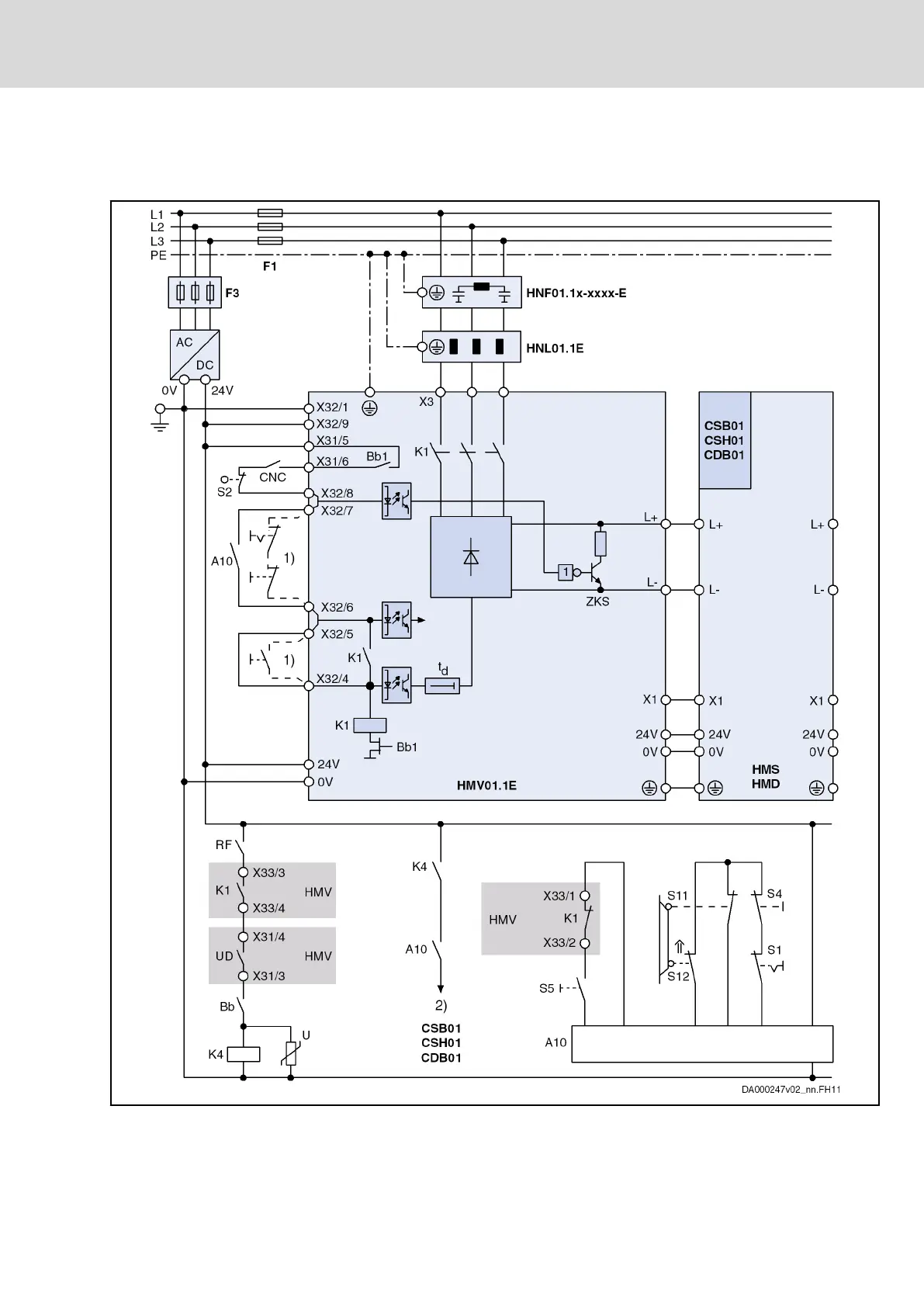

Control Circuit "DC Bus Short Circuit (ZKS) in the Case of Disturbed Electronic System of Drive" for the Mains
Connection of HMV01.1E Supply Units With Integrated Mains Contactor (e.g. HMV01.1E-W0030, -W0070, -
W0120)
F1 Fuse of power supply
F3 Fuse of 24V power supply unit
1) Control of K1, if A10 is not used
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 159/309
Circuits for the Mains Connection
