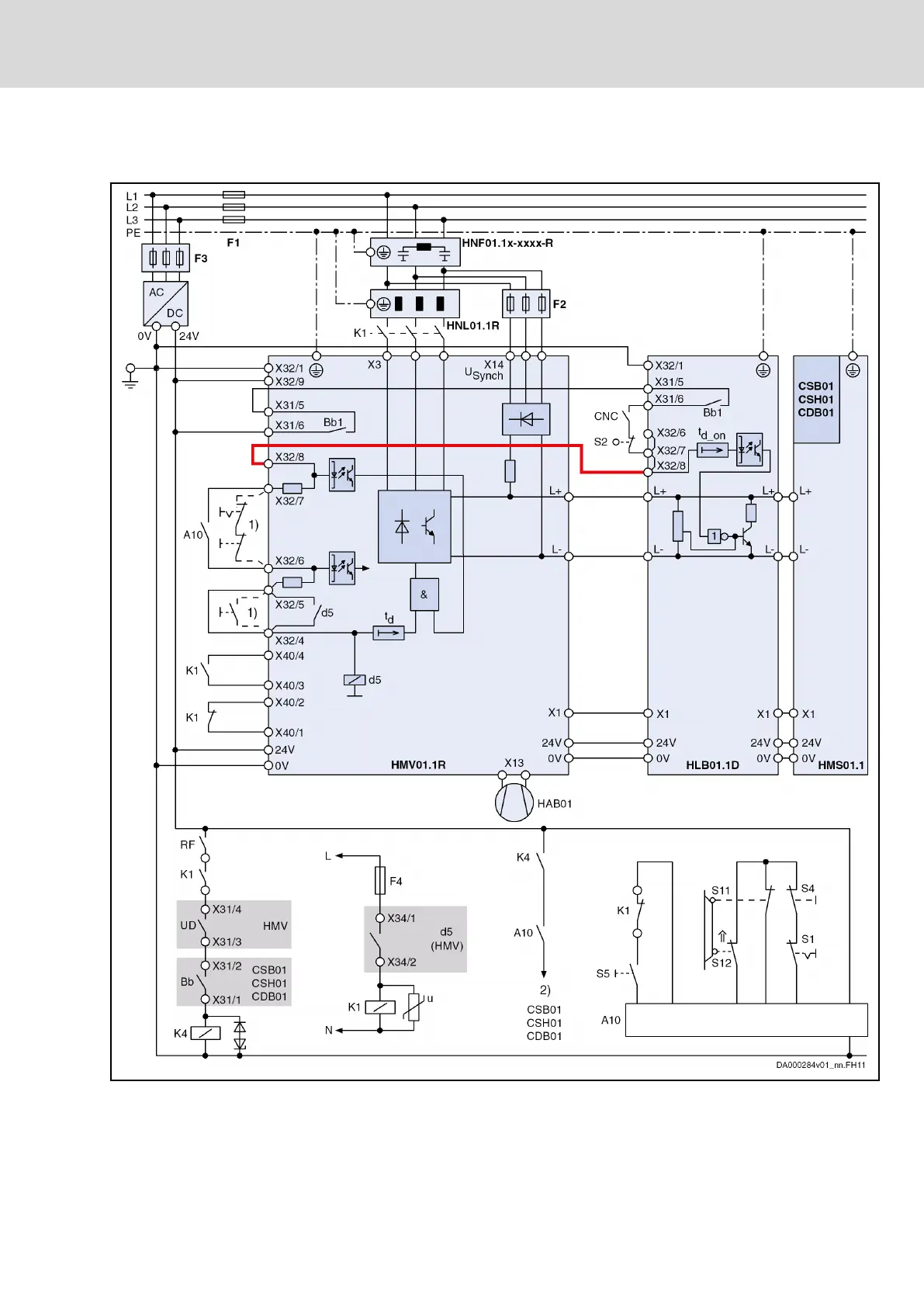

Suggestion for Control Circuit "HMV and HLB With DC Bus Short Circuit (ZKS) in Case of Disturbed Electronic
System of Drive" for Mains Connection of HMV01.1R-W0120 With External Mains Contactor and HLB01.1D
1) Control of K1, if A10 is not used
2) Drive enable (via input at control section or via master communica‐
tion); depending on parameter "P-0-4028, Device control word"
A10 Emergency stop relay (example of circuit; optional design)
DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
Bosch Rexroth AG 165/309
