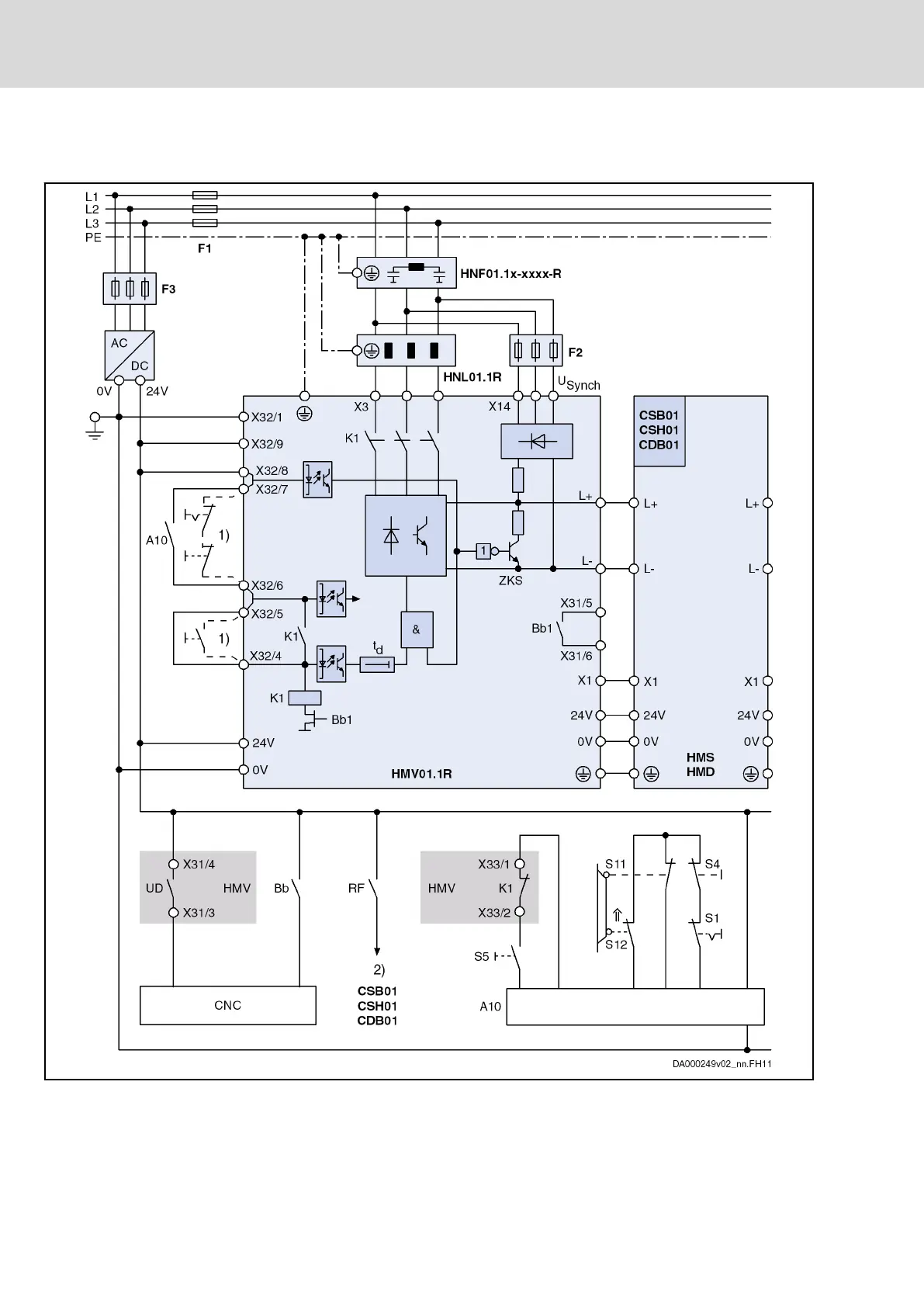

Control Circuit "Position-Controlled Shutdown by the Control Unit" for the Mains Connection of HMV01.1R Sup‐
ply Units With Integrated Mains Contactor (e.g. HMV01.1R-W0018, -W0045, -W0065)
F1 Fuse of power supply
F2 Fuse of synchronization connection X14
F3 Fuse of 24V power supply unit
1) Control of K1, if A10 is not used
Bosch Rexroth AG DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
168/309
Circuits for the Mains Connection
