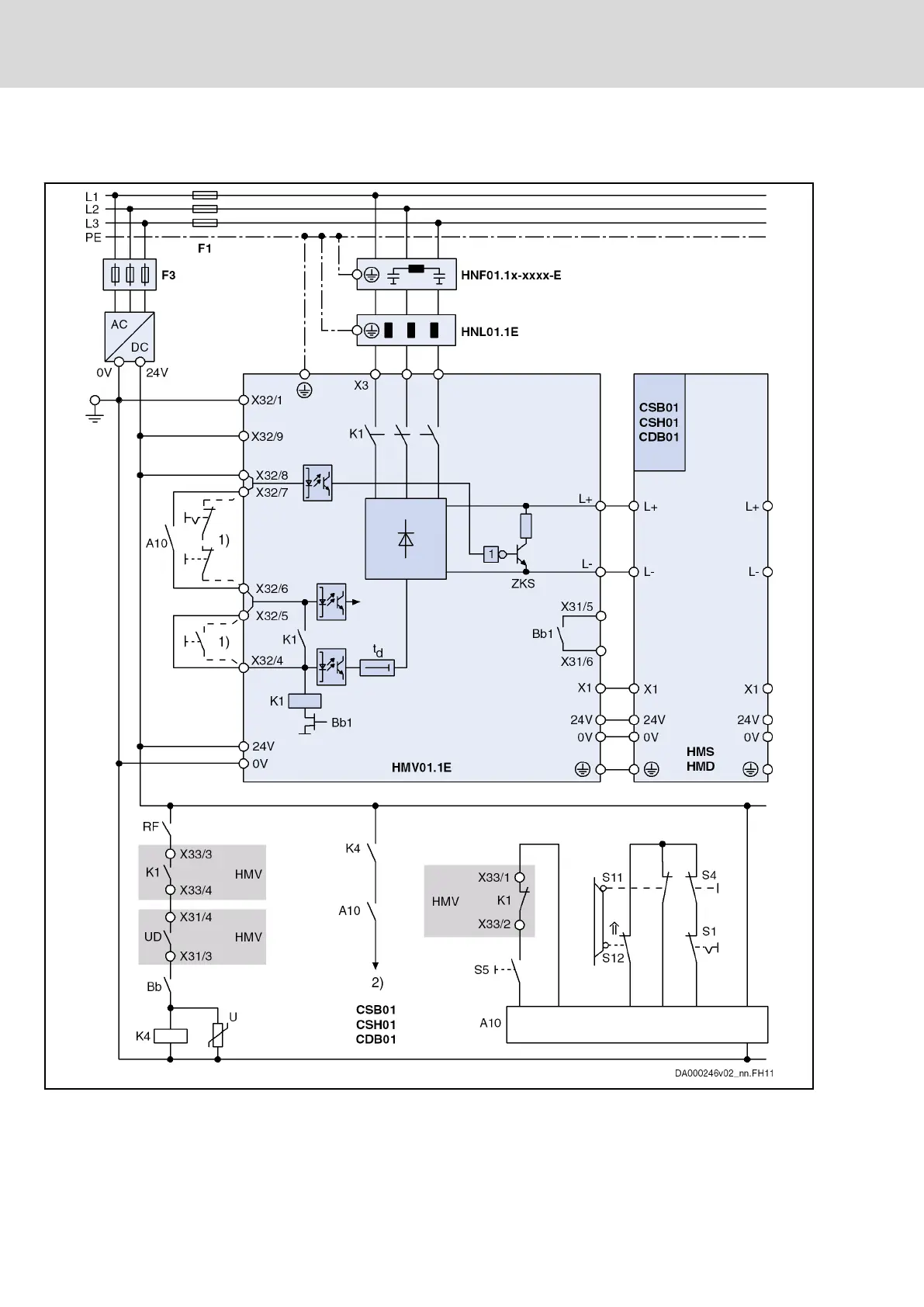

Example Control Circuit "Without DC Bus Short Circuit (ZKS)" for the Mains Connection of HMV01.1E Supply
Units With Integrated Mains Contactor (e.g. HMV01.1E-W0030, -W0070, -W0120)
F1 Fuse of power supply
F3 Fuse of 24V power supply unit
1) Control of K1, if A10 is not used
Bosch Rexroth AG DOK-INDRV*-SYSTEM*****-PR06-EN-P
Rexroth IndraDrive Drive Systems with HMV01/02 HMS01/02, HMD01, HCS02/03
170/309
Circuits for the Mains Connection
