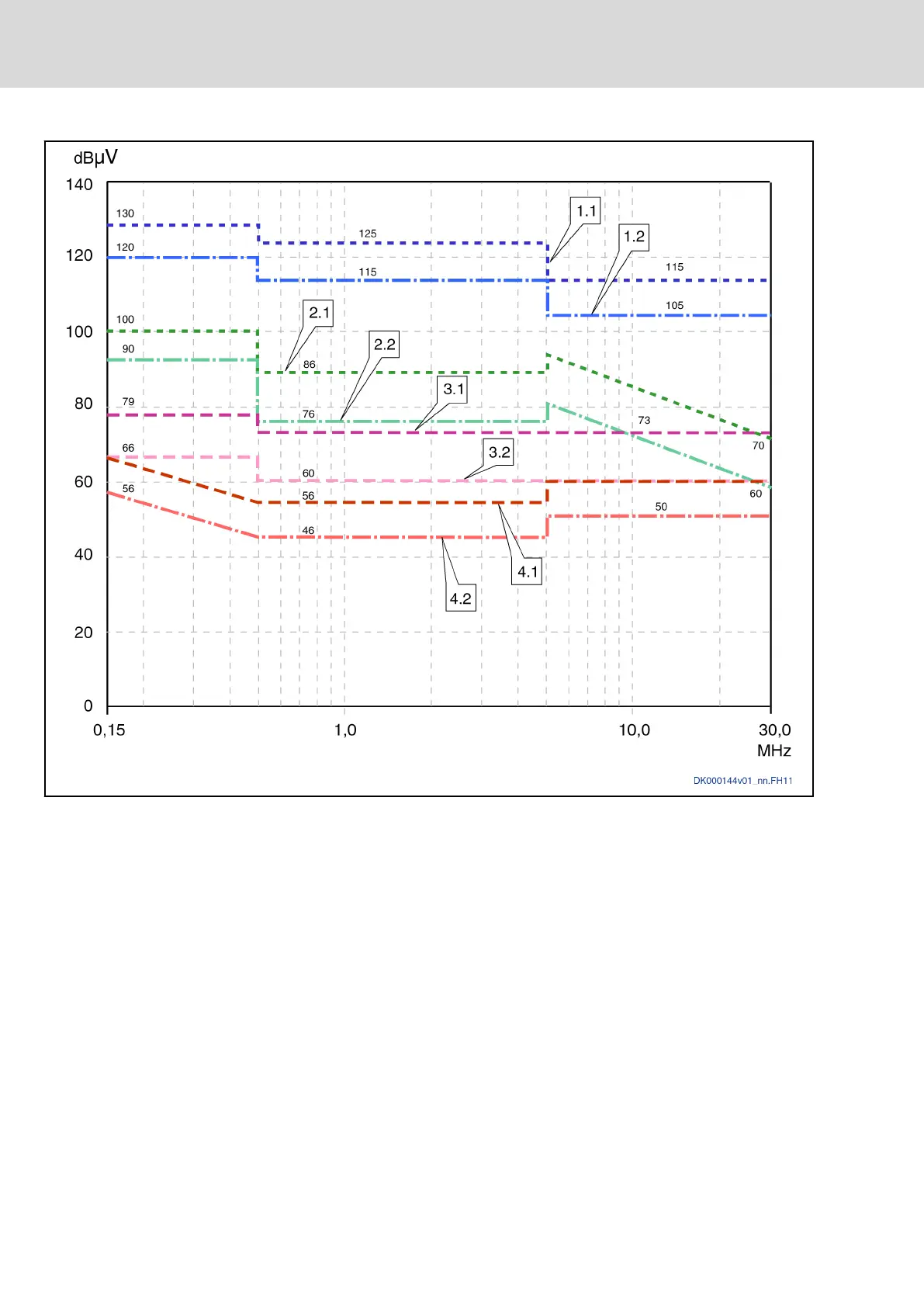

1.1 Category C3: Second environment, QSP, I > 100 A (class A, group 2,
I > 100 A)
1.2 Category C3: Second environment, AV, I > 100 A (class A, group 2,
I > 100 A)
2.1 Category C3: Second environment, QSP, I < 100 A (class A, group 2,
I < 100 A)
2.2 Category C3: Second environment, AV, I < 100 A (class A, group 2,
I < 100 A)
3.1 Category C2: First environment, restricted distribution, QSP (first envi‐
ronment, even if source of interference in second environment) (class
A, group 1)
3.2 Category C2: First environment, restricted distribution, AV (first envi‐
ronment, even if source of interference in second environment) (class
A, group 1)
4.1 Category C1: First environment, unrestricted distribution, QSP (first
environment, even if source of interference in second environment)
(class B, group 1)
4.2 Category C1: First environment, unrestricted distribution, AV (first en‐
vironment, even if source of interference in second environment)
(class B, group 1)
Notes (1) Limit value for first environment is also relevant, if source of inter‐
ference of second environment affects first environment.
(2) Designations "class" and "group" according to IEC CISPR 11.
