Description Symbol Unit Value

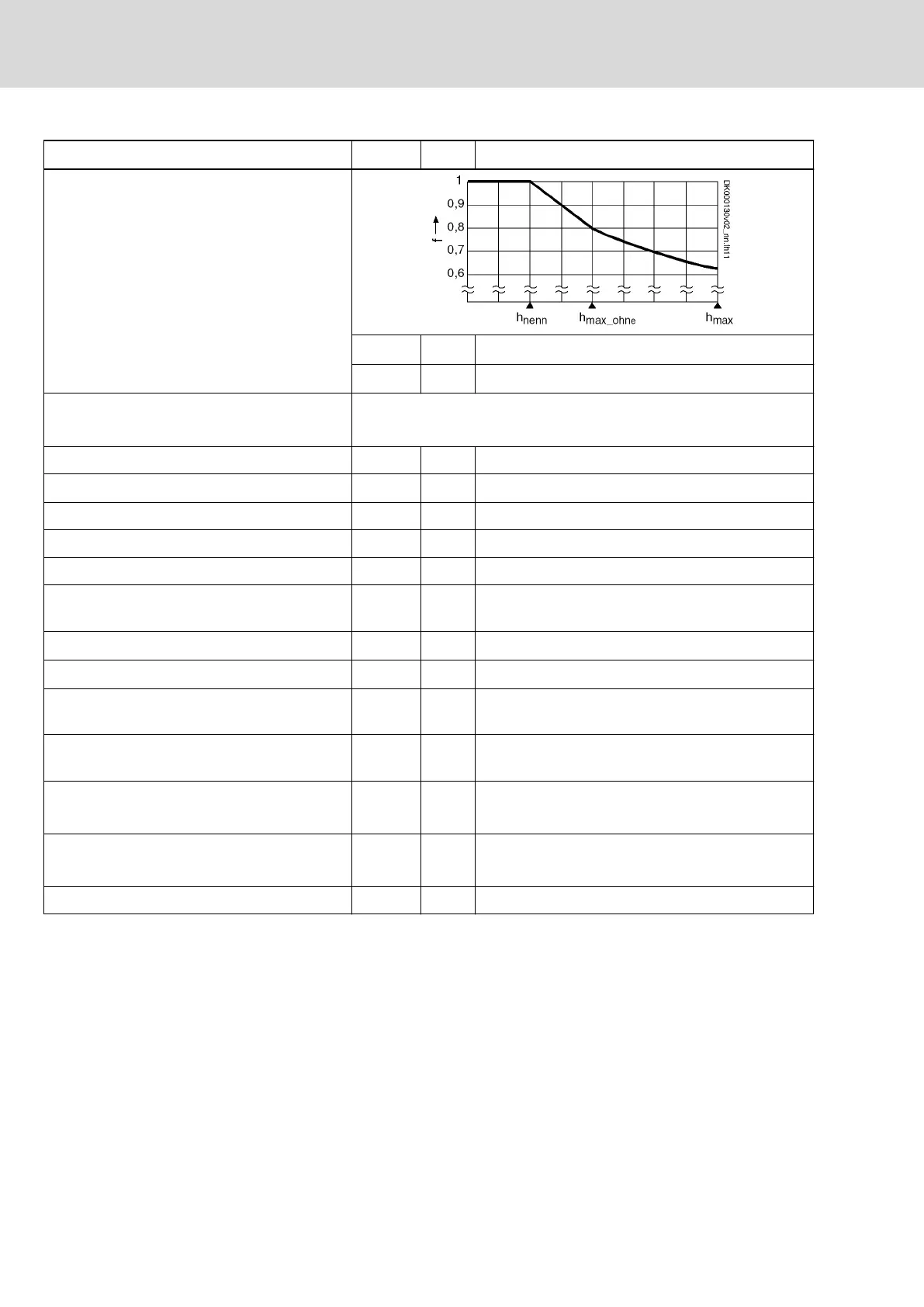

Derating vs. installation altitude:
With installation altitudes h > h
nenn
, the available
performance data are reduced by the factor f
3)
4)
.
With installation altitudes in the range of
h
max_ohne
to h
max
, an overvoltage limiter against
transient overvoltage must be installed in the in‐
stallation.
Operation above h
max
is not allowed!
h
max_ohne
m 2000
h
max
m 4000
Simultaneous derating for ambient temperature
and installation altitude
Allowed;
reduce performance data with the product f × F
Ta
Relative humidity % 5 … 95
Absolute humidity
g/m
3
1 … 29
Climatic category (IEC721) 3K3
Allowed pollution degree (IEC 60664‑1) 2
Allowed dust, steam EN 50178 tab. A.2
Vibration sine: Amplitude (peak-peak) at 5 … 32
Hz
2)
mm 0,6 ±15%
Vibration sine: Acceleration at 32 … 200 Hz
2)
g 1,3 ±15%
Vibration noise (random) frequency
1)
Hz 20 … 500
Vibration noise (random) spectral acceleration
density, amplitude
1)
g
2
/Hz
0,05
Vibration noise (random) rms value of total ac‐
celeration
1)
g 1,5
Vibration sine: Axial
Acceleration at 10 … 2,000 Hz
2)
g -
Vibration sine: Radial
Acceleration at 10 … 2,000 Hz
2)
g -
Overvoltage category III (according to IEC60664-1)
1) According to EN 60068-2-64
2) According to EN 60068-2-6
3) Reduced performance data for drive controllers: Allowed DC bus con‐
tinuous power, braking resistor continuous power, continuous current;
for HCS01, HCQ, HCT drive controllers additionally: Allowed mains
voltage
4) Reduced performance data for motors: Performance, torque S1 and
S3
Tab.5-6: Ambient and Operating Conditions (HCS, HMV, HMS, HMD, HCQ,
HCT, KCU, HLC)
