Ricoh Aficio SP C440DN

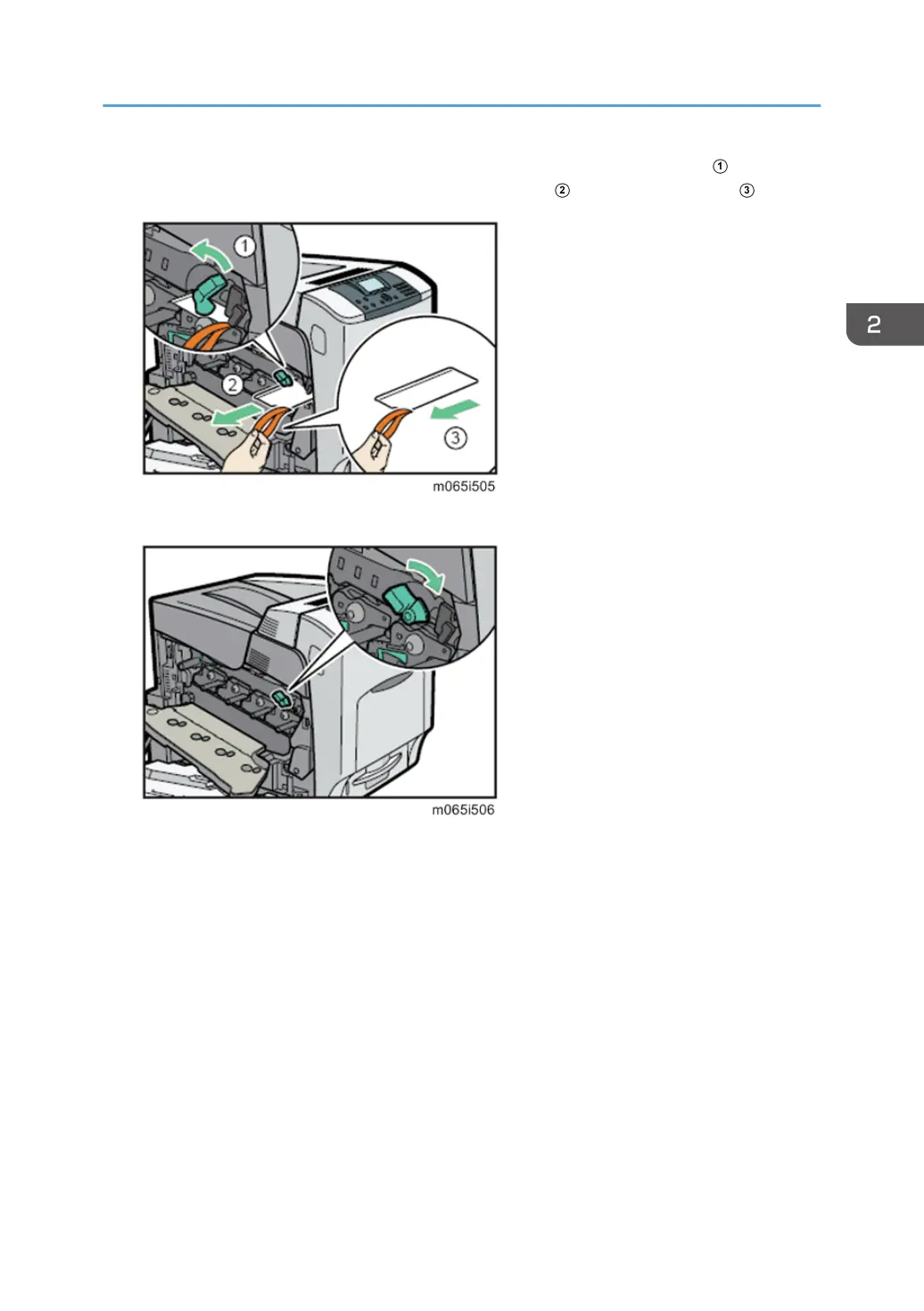

7. Turn the green lever of the transfer unit counterclockwise to unlock the unit ( ). Remove
the protective sheet, as shown. Pinch the orange tape ( ), and then pull it out ( ).
8. Turn the green lever clockwise to lock the unit.
9. Close the inner cover.
Printer Installation
35
