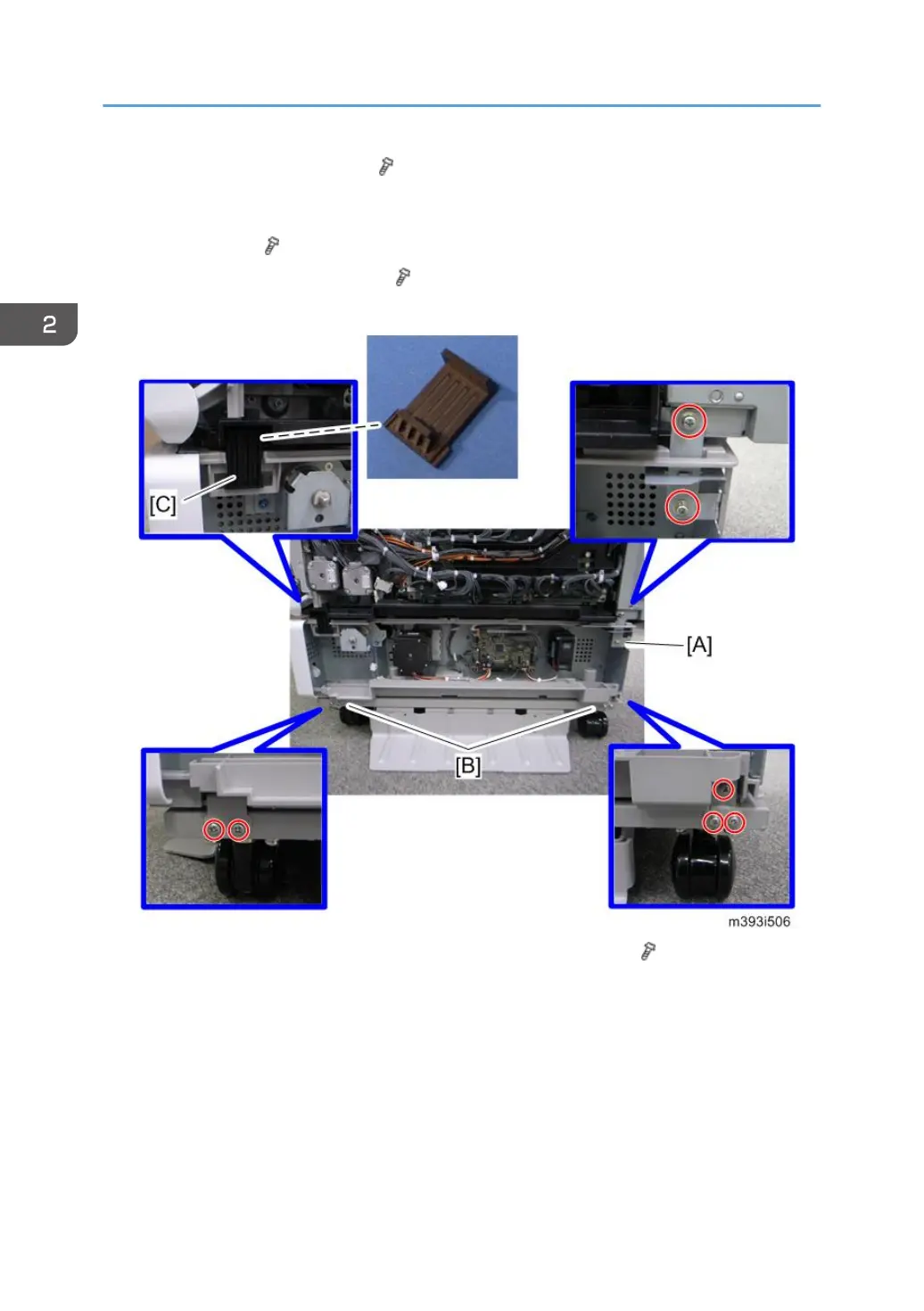

7. Install the securing bracket [A] ( x 2).
• If two or three optional paper feed units are to be installed, install the securing bracket [A] at
the right side of the optional paper feed units in a similar location to that shown below to
secure them ( x 2).
8. Install the joint table brackets [B] ( x 5).
9. Install the securing holder [C].
10.
Reinstall the right cover and the right cover of the paper feed unit ( x 2).
2. Installation
54
