Machine
Highlights
Part Names and Functions
8

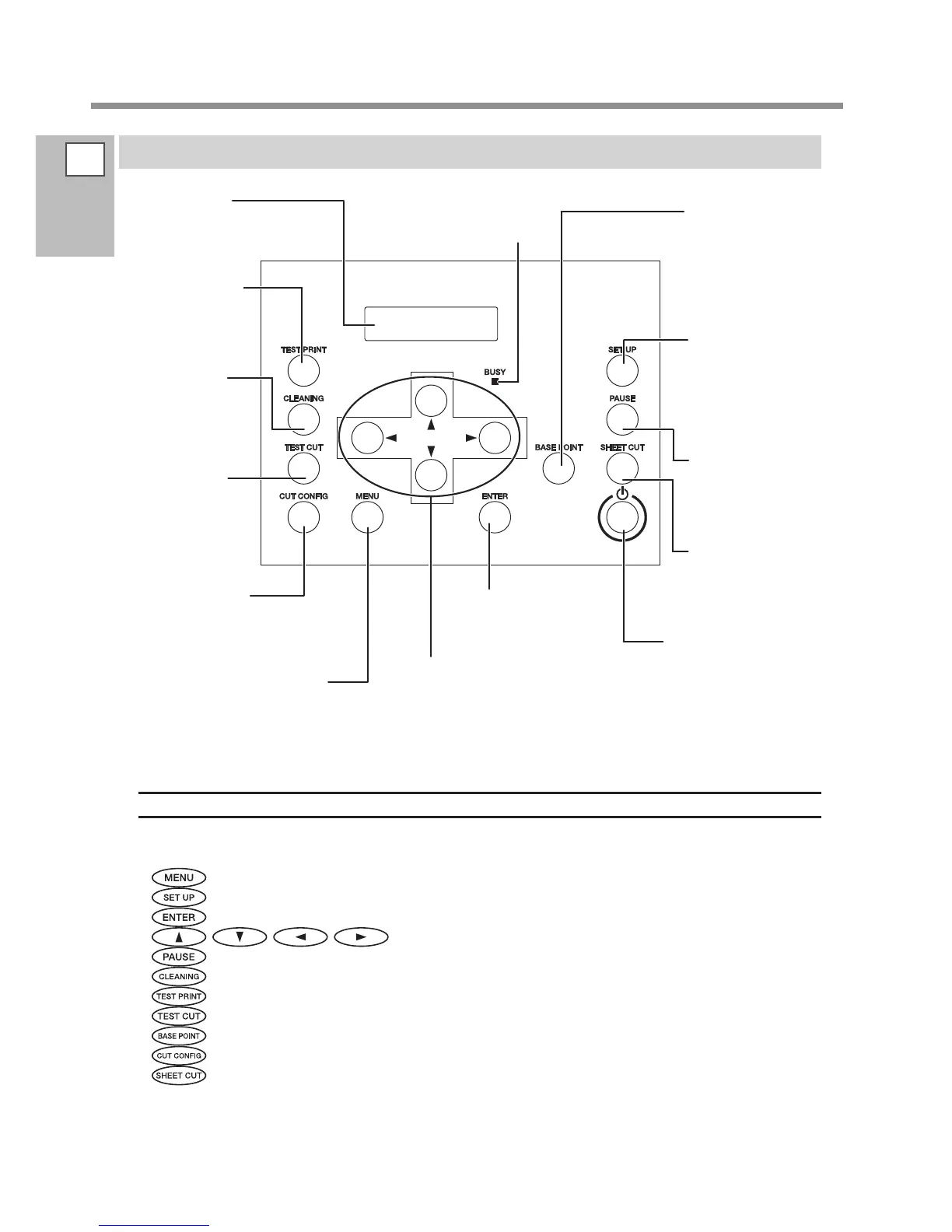

Operation Panel
Panel Notation
In this document, the keys and lights on the operation panel are indicated by the following images.
MENU key
SETUP key
ENTER key
Cursor keys
PAUSE key
CLEANING key
TEST PRINT key
TEST CUT key
BASE POINT key
CUT CONFIG key
SHEET CUT key
W 1346 mm
PAUSE key
This pauses printing
operation. This lights
up when operation is
paused.
Sub power switch
This switches the printer
on and off. (To switch the
printer off, you hold down
the switch for one second
or longer.) This flashes
slowly when the machine
is in the sleep mode.
ENTER key
You use this for such tasks
as enabling setting values.
Cursor keys
You use these to select settings for
menu items, to move the media,
and for other such operations.
MENU key
You press this to enter the
menus for various settings.
BUSY light
This lights up during printing
and other such operations.
BASE POINT key
You use this when
you want to set the
output-start location.
This lights up when
the setting has been
made.
SETUP key
You press this when
you load media. This
lights up when me-
dia is loaded and the
machine is ready to
perform output.
SHEET CUT key
Holding this down for
one second or longer
cuts off media.
CUT CONFIG key
This displays the menu
for setting the condi-
tions for cutting.
TEST CUT key
Holding this down for
one second or lon-
ger performs a cutting
test.
CLEANING key
You use this to per-
form cleaning of the
print heads.
TEST PRINT key
Holding this down
for one second or
longer performs a
printing test.
Display screen
This displays various setting
menus and other information.
