4
Mainte-
nance
111
Replacing Consumable Parts
Replacing the Wiper
The wipers are components that you use when cleaning the print heads.
When the screen displays a message like the one shown, it means the
item needs to be replaced. Replace with new items.
Regarding the purchase of the wiper, contact your authorized Roland
DG Corp. dealer.
When a warning beep sounds during replacing the wiper.
A warning beep sounds after 10 minutes. At this time, stop work, attach the side cover. And then press
to nish the wiper replacement menu. When the head-protection operation nishes, restart the procedure
from the beginning.
CAUTION
Be sure to perform operations as specied by these instructions, and
never touch any area not specied in the instructions.
Sudden movement of the machine may cause injury.

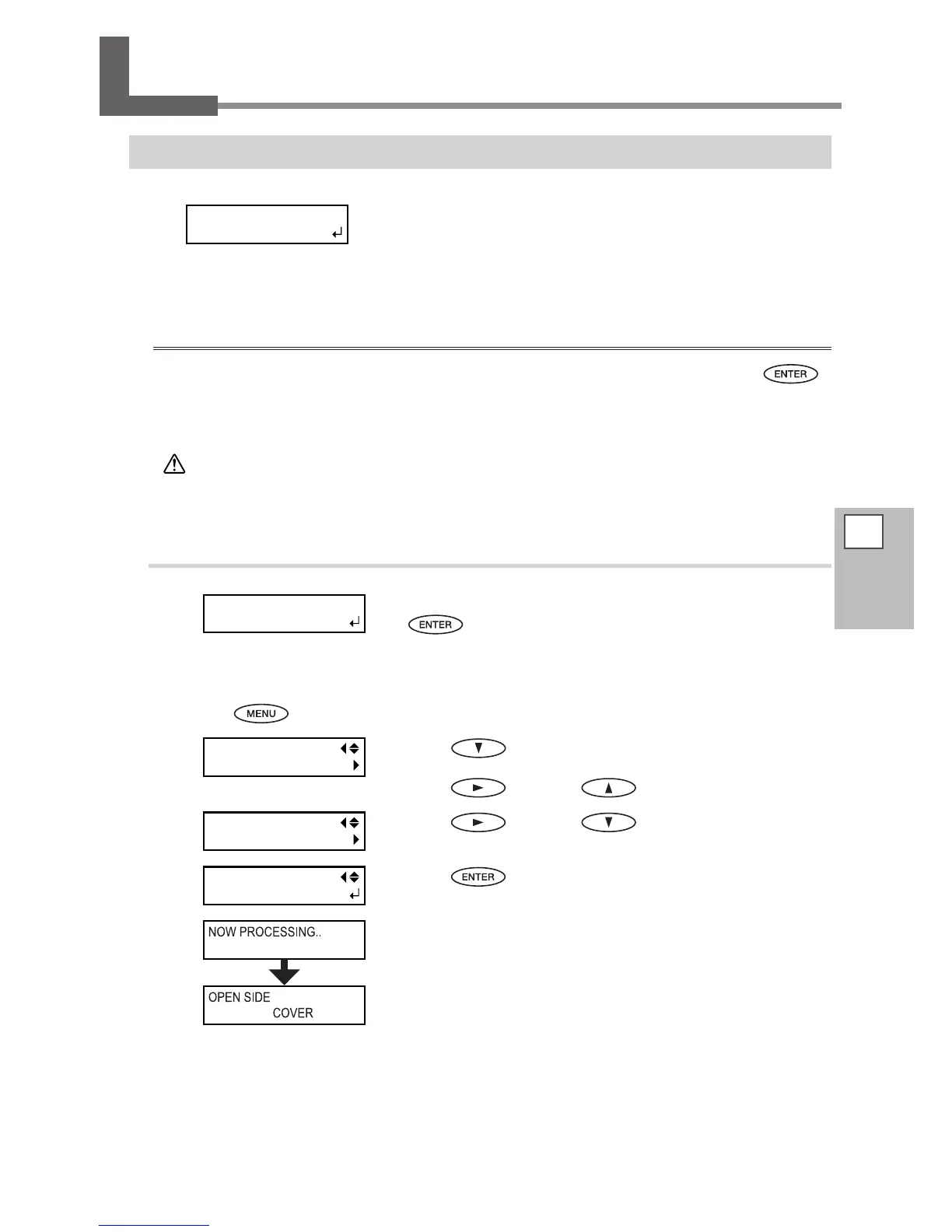

1.
Display the [REPLACE WIPER] menu.
When the message shown in the gure appears, press
.
Remove any media from the platen.
Press .
Press several times until the screen shown on
the left appears.
Press
and then .
Press and then .
Press .
The print-head carriage moves to a location where wiper replacement
is possible, and then the screen shown in the gure appears.
Continued on the next page
