CH EDIT Window
111

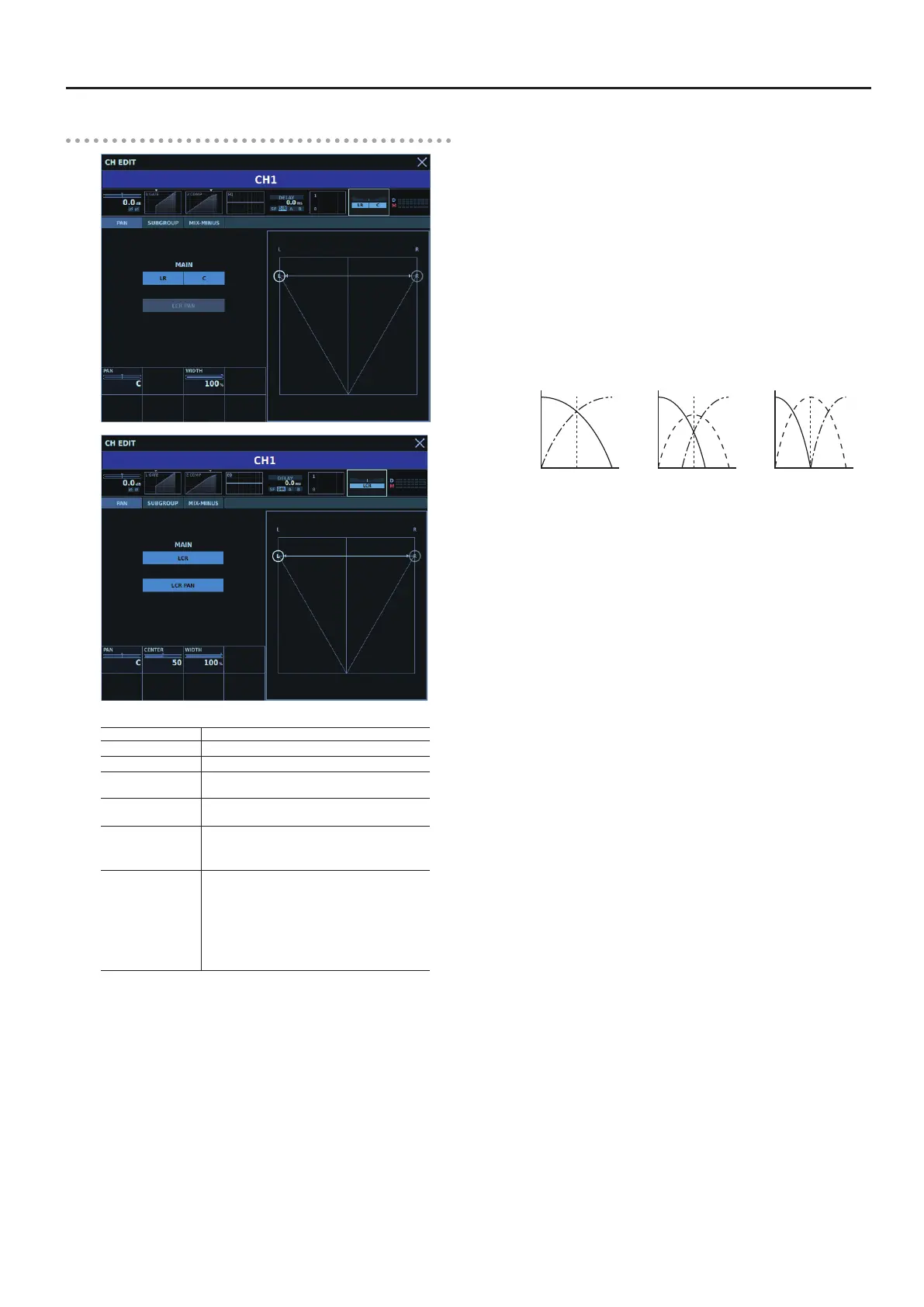

PAN Tab (LCR/CROSS-MATRIX LCR)
MAIN LR Sends the signal to MAIN LR.
MAIN C Sends the signal to MAIN C.
MAIN LCR Sends the singal to MAIN LCR.
LCR PAN
Species how signals are sent to MAIN LR and
MAIN C.
PAN Sends pan to MAIN LR or MAIN LCR
CENTER
Sets the ratio of the signal sent to MAIN C when
PAN is set to C (center).
* This is displayed when LCR PAN is on.
WIDTH
Sets the width of the stereo image.
You can maintain the stereo-image width set here
while working with PAN.
-100% - 100%
* This is displayed when the input channel/
output bus being manipulated is set to
STEREO.
LCR PAN
When this is on, the signals sent to MAIN LCR can be collectively
turned on/o. Pan will operate across the MAIN LCR and CENTER is
displayed.
When this is o, the signals sent to MAIN LR and MAIN C can be
individually turned on/o.
CENTER
This sets the amount of the signal sent to MAIN C within a range of
0 to 100 when PAN is set to C (center).
When set to 0, no signal is sent to MAIN C.
When set to 100, setting PAN to C causes the signal to be sent only
to MAIN C.
* This is displayed when LCR PAN is on.
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
Center 0
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
t
o
C
E
N
T
E
R
Center 50
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
t
o
C
E
N
T
E
R
Center 100
CROSS-MATRIX LCR
When MAIN is set to CROSS-MATRIX LCR, the feeds sent to MAIN LR
or MAIN C are subject to exclusive control.
When sending to MAIN LR is on, feed to MAIN C is automatically
turned o.
When sending to MAIN C is on, feed to MAIN LR is automatically
turned o.
