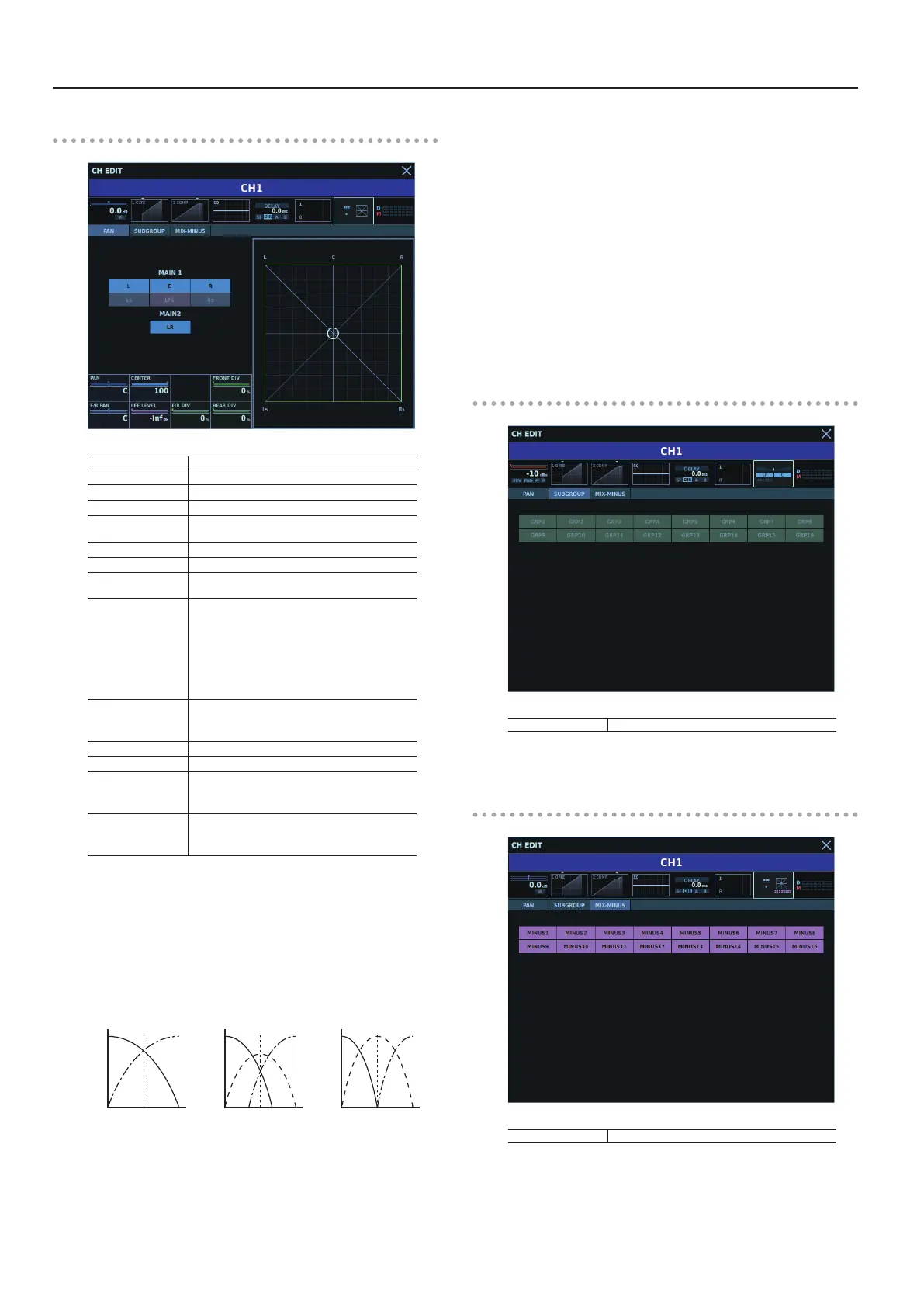

CH EDIT Window
112
PAN Tab (5.1)
MAIN L Sends the signal to MAIN L.
MAIN C Sends the signal to MAIN C.
MAIN R Sends the signal to MAIN R.
MAIN Ls Sends the signal to MAIN Ls (Left Surround).
MAIN LFE
Sends the signal to MAIN LFE (Low-Frequency
Eects).
MAIN Rs Sends the signal to MAIN Rs (Right Surround).
PAN Send pan along the X (horizontal) axis (left-right)
CENTER
Sets the ratio of the signal sent to MAIN C when
PAN is set to C (center).
WIDTH
Sets the width of the stereo image.
You can maintain the stereo-image width set here
while working with PAN.
-100% - 100%
* This is displayed when the input channel/
output bus being manipulated is set to
STEREO.
FRONT DIV
Front Divergence
Adjusts the amount of divergence along the X
axis at the front.
F/R PAN Send pan along the Y axis (front-rear)
LFE LEVEL Send level to MAIN LFE
REAR DIV
Rear Divergence
Adjusts the amount of divergence along the X
axis at the rear.
F/R DIV
Front/Rear Divergence
Adjusts the amount of divergence along the Y
axis.
CENTER
This sets the amount of the signal sent to MAIN C within a range of
0 to 100 when PAN is set to C (center).
When set to 0, no signal is sent to MAIN C.
When set to 100, setting PAN to C causes the signal to be sent only
to MAIN C.
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
Center 0
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
t
o
C
E
N
T
E
R
Center 50
L C
PAN
LEVEL
R
t
o
L
E
F
T
t
o
R
I
G
H
T
t
o
C
E
N
T
E
R
Center 100
Divergence
Divergence adjusts the amount of diusion along the respective
axes (front X axis, rear X axis, or Y axis). For example, setting
FRONT DIV, REAR DIV, and F/R DIV all to “0%” and placing the
signal directly above L outputs the audio only to L, with nothing
output to other channels (C, R, Ls, LFE, and Rs). High values for
FRONT DIV, REAR DIV, and F/R DIV reduce output via L, with
output from other channels at the set ratios.
The overall volume level does not change.
Setting Divergence to 0% narrows the audible range. Location
becomes easier.
Setting Divergence to 100% broadens the audible range.
Location becomes dicult.
SUBGROUP Tab
SGRP 1 - SGRP (n) Sends the signal to SUBGROUP.
* This is only displayed when a SUBGROUP exists.
MIX-MINUS Tab
MINUS 1 - MINUS (n) Sends the signal to MIX-MINUS.
* This is only displayed when a MIX-MINUS exists.
