Connection Producing No Noise 2 (OK)
Change the number of audio channels that the REAC slave device at
the REAC port where the M-48 is connected to 32 channels or fewer.

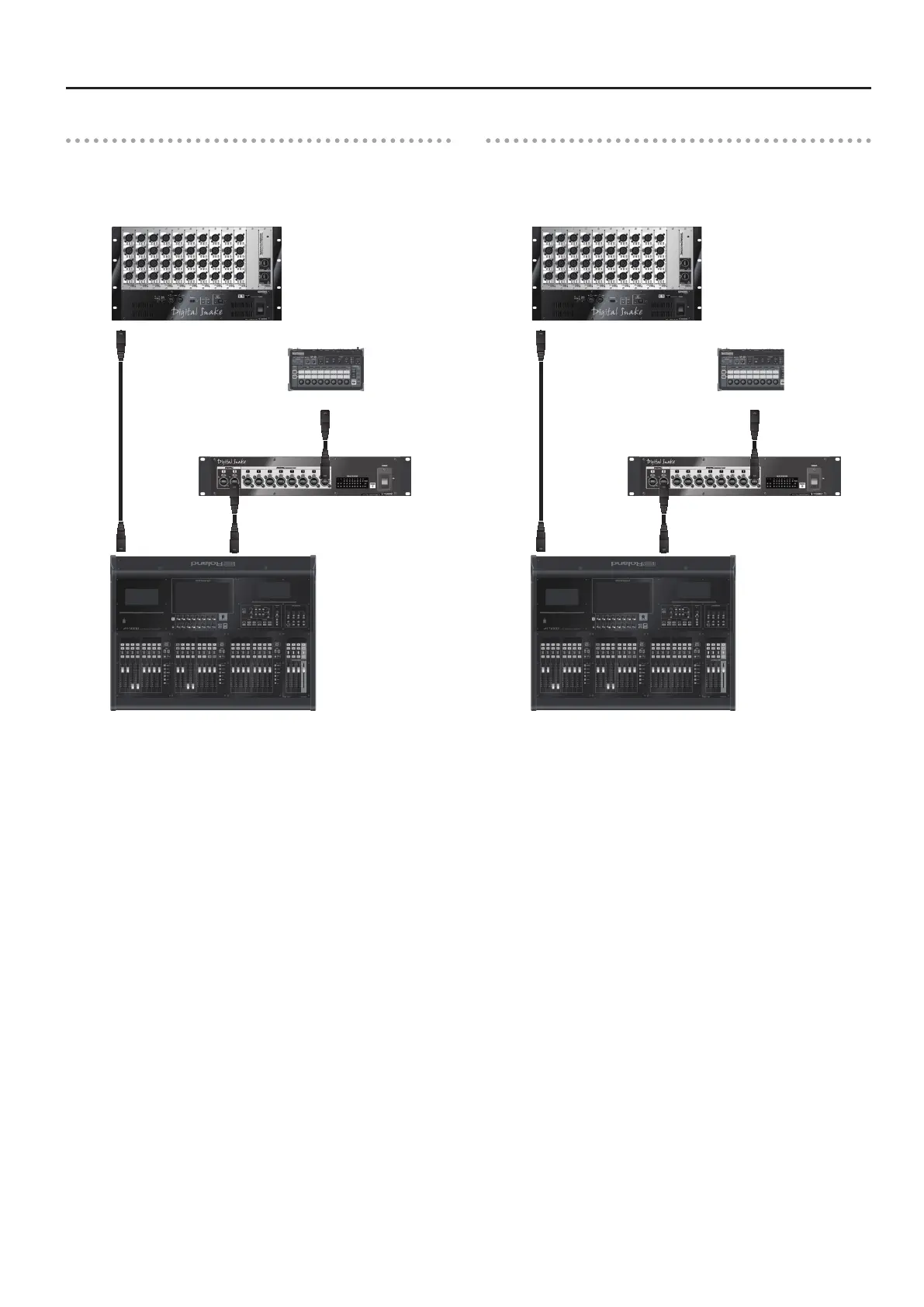

In the gure below, no REAC slave device is present at the REAC
port where the M-48 is connected, and so no noise is produced.
S-4000D
REAC A
MASTER
REAC B
MASTER
M-5000 96kHz
REAC MASTER
M-48
S-4000S-4000
REAC SLAVE
/40ch/96kHz
Connection Producing No Noise 3 (OK)
Change the number of audio channels that the REAC slave device at
the REAC port where the M-48 is connected to 32 channels or fewer.
In the gure below, no REAC slave device is present at the REAC
port where the M-48 is connected, and so no noise is produced.
S-4000D
REAC A (or B)
MASTER
REAC SPLIT/BACKUP
M-5000 96kHz
REAC MASTER
M-48
S-4000S-4000
REAC SLAVE
/40ch/96kHz
