Roland VR-6HD

122

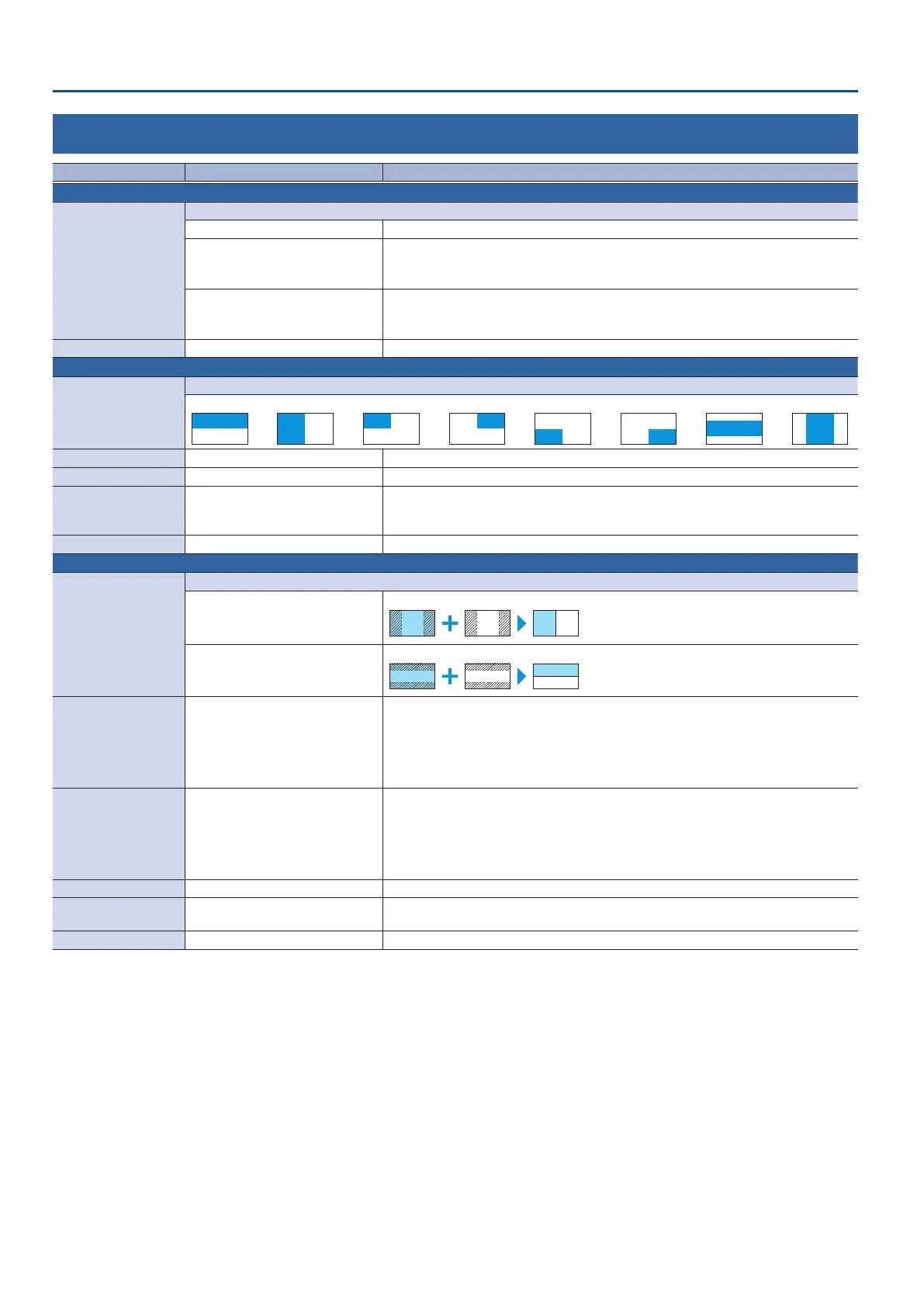

Menu List
3: TRANSITION
Menu item Value (bold text: default value) Explanation
MIX
These are the detailed mix settings.
MIX TYPE
Species the transition pattern for mix.
MIX The two videos are mixed as the transition occurs.
FAM
Video transitions are made with the luminance levels of the two video streams maintained
unchanged.
This is an abbreviation of “full additive mix”.
NAM
The two video streams are compared, and transitions are made with display during
transition starting with levels of high luminance.
This is an abbreviation of “non-additive mix”.
MIX TIME 0.0–1.0–4.0sec Species the video transition time.
WIPE
These are the detailed wipe settings.
WIPE TYPE
Species the transition pattern for wipe.
HORIZONTAL VERTICAL UPPER LEFT UPPER RIGHT LOWER LEFT LOWER RIGHT H-CENTER V-CENTER
WIPE TIME 0.0–1.0–4.0sec Species the video transition time.
DIRECTION NORMAL, REVERSE, ROUND TRIP Species the direction of wipe.
BORDER COLOR
WHITE, YELLOW, CYAN, GREEN,
MAGENTA, RED, BLUE, BLACK, SOFT
EDGE
Species the color of the border added to the edge of the wipe area.
When this is set to “SOFT EDGE”, the wipe border is blurred.
BORDER WIDTH 0–3–14 Species the width of the border added to the edge of the wipe area.
SPLIT These are the detailed settings for the split composite.
SPLIT TYPE
These parameters congure the split screen layout.
SPLIT V
This vertically crops the center section of the video (split left/right).
A B
A B
A
B
B
A
SPLIT H
This horizontally crops the center section of the video (split upper/lower).
A BA B
A
B
B
A
PGM-CENTER -50.0–0.0–50.0%
When at SPLIT V
Adjusts the horizontal position of the video placed on the left.
When at SPLIT H
Adjusts the horizontal position of the video placed above.
* This positions the PGM bus video to the left or upper side.
PST-CENTER -50.0–0.0–50.0%
When at SPLIT V
Adjusts the horizontal position of the video placed on the right.
When at SPLIT H
Adjusts the horizontal position of the video placed below.
* This positions the PST bus video to the right or lower side.
CENTER POS -50.0–0.0–50.0% Adjusts the position of the boundary.
BORDER COLOR
WHITE, YELLOW, CYAN, GREEN,
MAGENTA, RED, BLUE, BLACK
Species the color of the border.
BORDER WIDTH 0–3–14 Adjusts the width of the border.
