Roland VR-6HD

34

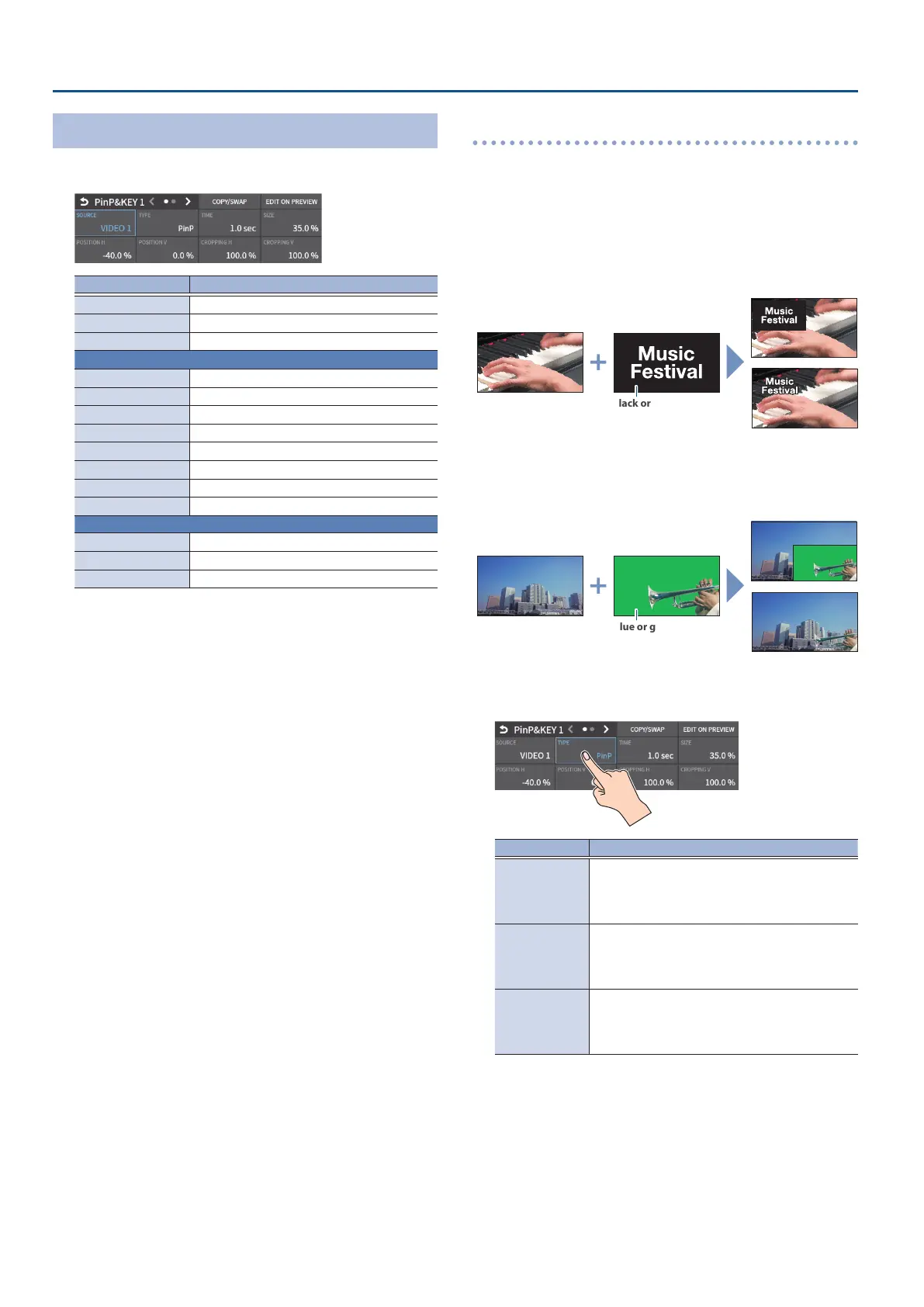

Video Composition Operations
Making Detailed Settings for the Inset Screen
You can congure the detailed inset screen settings including size, shape,
border width and more from the PinP setup screen.
Parameter Explanation
SOURCE Species the video source of the inset screen.
TYPE Species the type of PinP compositing.
TIME Species the video transition time.
Adjusts the inset screen.
POSITION H Adjusts the position in the horizontal direction.
POSITION V Adjusts the position in the vertical direction.
SIZE Adjusts the size (enlarge or reduce).
CROPPING H Adjusts the horizontal size.
CROPPING V Adjusts the vertical size.
SHAPE Species the shape of the inset screen.
BORDER COLOR Species the color of the edge.
BORDER WIDTH Adjusts the width of the border.
Adjusts the video that is shown in the inset screen.
POSITION H Adjusts the position in the horizontal direction.
POSITION V Adjusts the position in the vertical direction.
ZOOM Adjusts the zoom of the video.
* For details on the parameter, refer to “4: PinP/DSK” (p. 123).
Key Compositing the Inset Screen
This process makes part of the inset screen transparent, and composites
the image with the background video.
You can use luminance key with either a black or a white background, or a
chroma key with either a blue or green background.
Luminance key
You can cut out text or an image by turning its black or white portion
transparent, and then superimpose it on the background video.
Black or white
Background video Inset screen video
PinP only
PinP + Key
Chroma key
Here’s how you can cut out a video by turning its blue or green portion
transparent, and then superimpose it on the background video.
PinP only
PinP + Key
Blue or green
Background video
Inset screen video
1. On the PinP setup screen, touch “TYPE” to select the PinP
composition type.
Value Explanation
LUMINANCE
WHITE KEY
A combination of PinP and luminance key (white).
Makes the white portions of the inset screen
transparent, and composites the image with the
background.
LUMINANCE
BLACK KEY
A combination of PinP and luminance key (black).
Makes the black portions of the inset screen
transparent, and composites the image with the
background.
CHROMA KEY
A combination of PinP and chroma key.
Makes the specied key color portions of the inset
screen transparent, and composites the image
with the background.
* For details on the parameter, refer to “4: PinP/DSK” (p. 123).
2. Adjust the intensity of the eect according to the selected
type.
