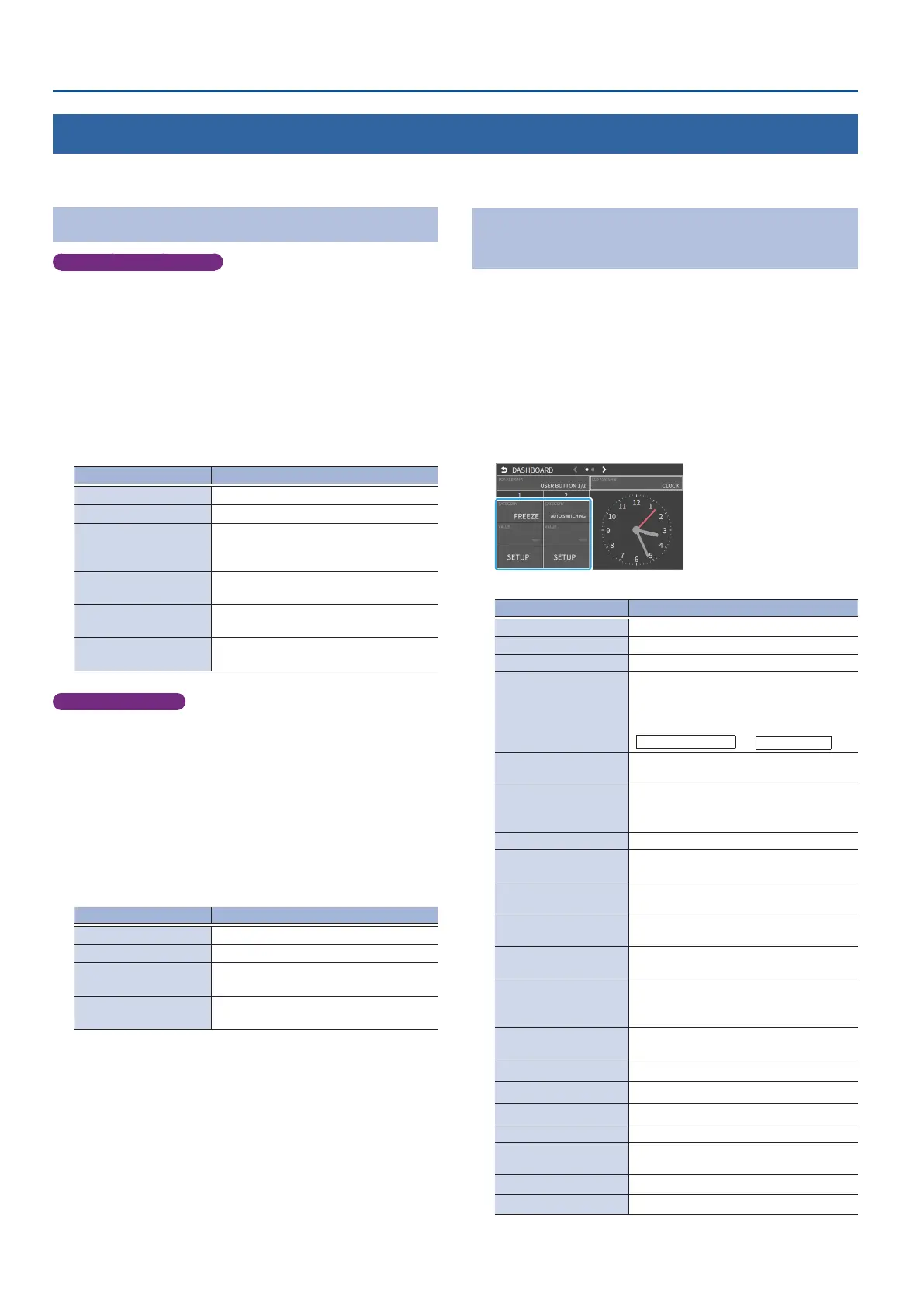

Other Functions
Using the dashboard
On the VR-6HD, you can show the information you want in the multi-view, such as the clock, streaming status and so on. For the dashboard, you can show dierent
content on the display of this unit and in the video sent to VIDEO OUT. You can also assign USER buttons to the display, which you can operate like a touch panel.
Displaying Information on the Dashboard
Shown on this unit’s display
1. [MENU] button
Ó
select “DASHBOARD”, and press the
[VALUE] knob.
2. Touch the arrows in the page switching area to show page 1.
3. Use the [VALUE] knob to select “LCD ASSIGN A” or “LCD
ASSIGN B”, and press the [VALUE] knob.
4. Use the [VALUE] knob to select the function that you want
to assign, and press the [VALUE] knob.
The selected function is shown in the multi-view of this unit’s display.
Value Explanation
N/A No function is assigned.
CLOCK Shows the clock.
STREAM STATUS 1
Shows the streaming/video recording
status. Touch this to start/stop streaming
or video recording.
STREAM STATUS 2
Shows the streaming/video recording
status.
USER BUTTON 1/2
Shows USER buttons 1/2, to which you can
assign the functions you like.
USER BUTTON 3/4
Shows USER buttons 3/4, to which you can
assign the functions you like.
Shown in VIDEO OUT
1. [MENU] button
Ó
select “DASHBOARD”, and press the
[VALUE] knob.
2. Touch the arrows in the page switching area to show page 2.
3. Use the [VALUE] knob to select “VIDEO OUT ASSIGN A” or
“VIDEO OUT ASSIGN B”, and press the [VALUE] knob.
4. Use the [VALUE] knob to select the function that you want
to assign, and press the [VALUE] knob.
The selected function is shown in the multi-view of VIDEO OUT.
Value Explanation
N/A No function is assigned.
CLOCK Shows the clock.
STREAM STATUS 1
Shows the streaming/video recording
status.
STREAM STATUS 2
Shows the streaming/video recording
status.
Assigning Functions to the USER Buttons on
the Dashboard
You can use the dashboard settings for this unit’s display to assign USER
buttons 1/2 or 3/4, and assign any function to the USER buttons that
appear on the display.
This lets you execute the functions you assign when you press a USER
button on this unit’s display.
1. Follow the steps in “Displaying Information on the
Dashboard” (p. 84) to assign a USER button to the
dashboard.
2. Select the function by touching the “CATEGORY” and
“VALUE” of the USER button you want to reassign.
ÁCATEGORY
Value
Explanation
N/A No function is assigned.
FREEZE Turns the freeze function on/o.
AUTO SWITCHING Turns the auto switching function on/o.
INPUT ASSIGN
Each time you press a button, the video
source assigned to the specied cross-
point button switches to the following
sources in order:
VIDEO OUT 1
Ó
6
Ó
STILL 1
Ó
16
STILL OUTPUT
Pauses the normal output, and previews or
nal outputs a cut of the still image.
VIDEO PLAYER OUTPUT
Temporarily pauses the normal output, and
previews or nal outputs a cut of the video
player’s video signal.
LOAD MEMORY Recalls a scene memory.
INPUT SCAN
Each time you press a button, the INPUT
1–6 video changes in order.
MEMORY SCAN
Each time you press a button, scene
memories 1–32 are recalled in order.
PinP & KEY 1–2 SCAN
Each time you press a button, the PinP &
KEY 1–2 inset screen videos switch in order.
DSK SCAN
Each time you press the button, the DSK
caption video switches in order.
EXTERNAL REC
CONTROL
Controls the recorder’s video record start/
stop if a recorder that supports REC control
functionality is connected (p. 85).
MACRO EXECUTE
Executes a macro (a series of recorded
operations).
SEQUENCER Shows the sequencer execution screen.
STREAM/RECORD Assigns a streaming-related function.
VIDEO PLAYER Assigns a video player-related function.
GPO (ONE SHOT) Outputs a control signal for 0.5 seconds.
GPO (ALTERNATE)
The control signal output is switched on/
o while the button is pressed.
CAMERA CONTROL Turns the camera control function on/o.
SYSTEM Assigns a system-related function.
ÁVALUE
Congures the detailed settings related to “CATEGORY”.
