Audio Operations

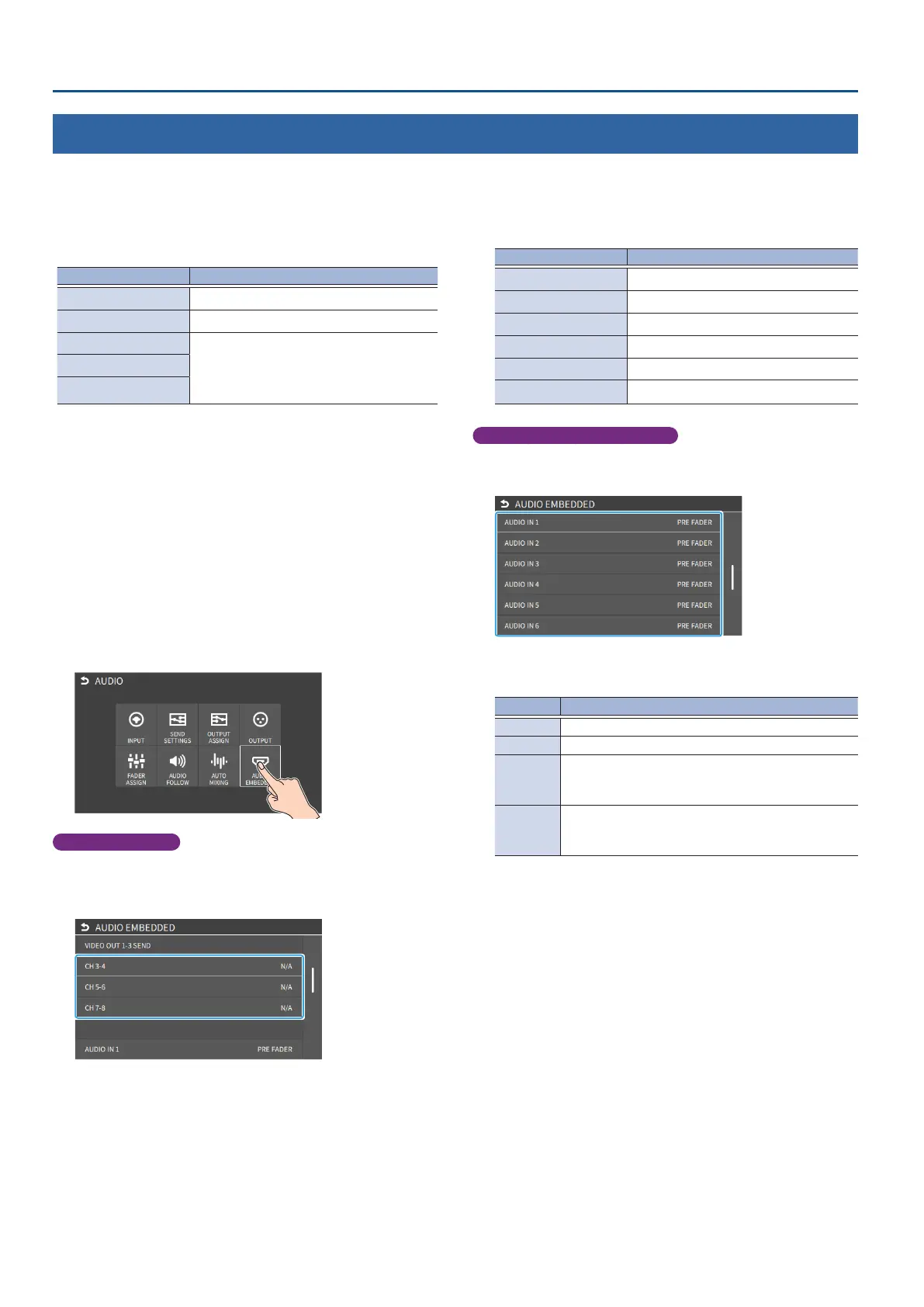

Adding Input Audio to an HDMI Video for Output
The VIDEO OUT connectors support 6-channel embedded audio. You can add input audio (sound) to an HDMI video that is output.
Assigning HDMI embedded audio and sound
You can assign the input audio signal you like to channels 3–8 of HDMI
embedded audio.
Embedded-audio Audio
CH 1 Bus (L) assigned in OUTPUT ASSIGN (p. 55)
CH 2 Bus (R) assigned in OUTPUT ASSIGN (p. 55)
CH 3/4
AUDIO IN 1/2, AUDIO IN 3/4
AUDIO IN 5/6, AUDIO IN 7/8
USB IN, Bluetooth IN, AUDIO PLAYER
VIDEO IN 1–6, VIDEO PLAYER
CH 5/6
CH 7/8
As a backup for visual or sound recording...
Digital audio is extracted from the HDMI embedded audio one channel
at a time, so after visual recording or sound recording, you can edit the
audio channel by channel.
For multilingual support...
Taking multilingual narration or other such audio, making it embedded
audio and adding it to HDMI video lets you later extract and use the
digital audio for the required language.
1. [MENU] button
Ó
“AUDIO”
Ó
select “AUDIO EMBEDDED”,
and press the [VALUE] knob.
Assigning the audio
2. Use the [VALUE] knob to select the embedded audio
channel for VIDEO OUT 1–3 SEND, and press the [VALUE]
knob.
3. Use the [VALUE] knob to select the input audio you wish to
assign to the channel, and press the [VALUE] knob.
Input audio Explanation
AUDIO IN 1–7/8 Audio from AUDIO IN 1–7/8 jacks
USB IN Audio from USB STREAM connector
Bluetooth IN Bluetooth IN audio
AUDIO PLAYER Audio from an audio player
VIDEO IN 1–6 Audio from VIDEO IN 1–6 connectors
VIDEO PLAYER Audio from a video player
Setting the character of the sound
4. Use the [VALUE] knob to select the input audio, and press
the [VALUE] knob.
5. Use the [VALUE] knob to select “DRY”, “PRE FADER”, or “POST
FADER”, and press the [VALUE] knob.
Value Explanation
OFF Audio is not sent.
DRY Sends the source audio with no eects applied.
PRE FADER
Sends the eect-applied audio.
The send volume is constant, regardless of the volume
(INPUT LEVEL).
POST
FADER
Sends the eect-applied audio.
The send volume can be changed by adjusting the
volume (INPUT LEVEL).
6. Press the [MENU] button to close the menu.
The audio including channel 3–6 embedded audio is output from the
VIDEO OUT 1–3 connectors.
