Roland VR-6HD

9
Panel Descriptions
MODE/POLARITY switch
FS-5U FS-6 FS-7
NOTE
The BOSS FS-6’s A, B, and A&B jacks also act as the power switch. The power turns on when you insert a plug into the jack, and turns o when you
remove the plug. To prevent the batteries from running down, remove the plugs from the jacks when you’re not using the BOSS FS-6.
FS-5U x 2
Stereo 1/4” phone type
Ñ
Ò
1/4” phone type x 2
CTL BCTL A
TIP
RING
FS-5U x 1
CTL B
1/4” phone type
Ñ
Ò
1/4” phone type
FS-6
CTL BCTL A
Stereo 1/4” phone type
Ñ
Ò
Stereo 1/4” phone type
FS-7
Stereo 1/4” phone type
Ñ
Ò
Stereo 1/4” phone type
CTL B
CTL A

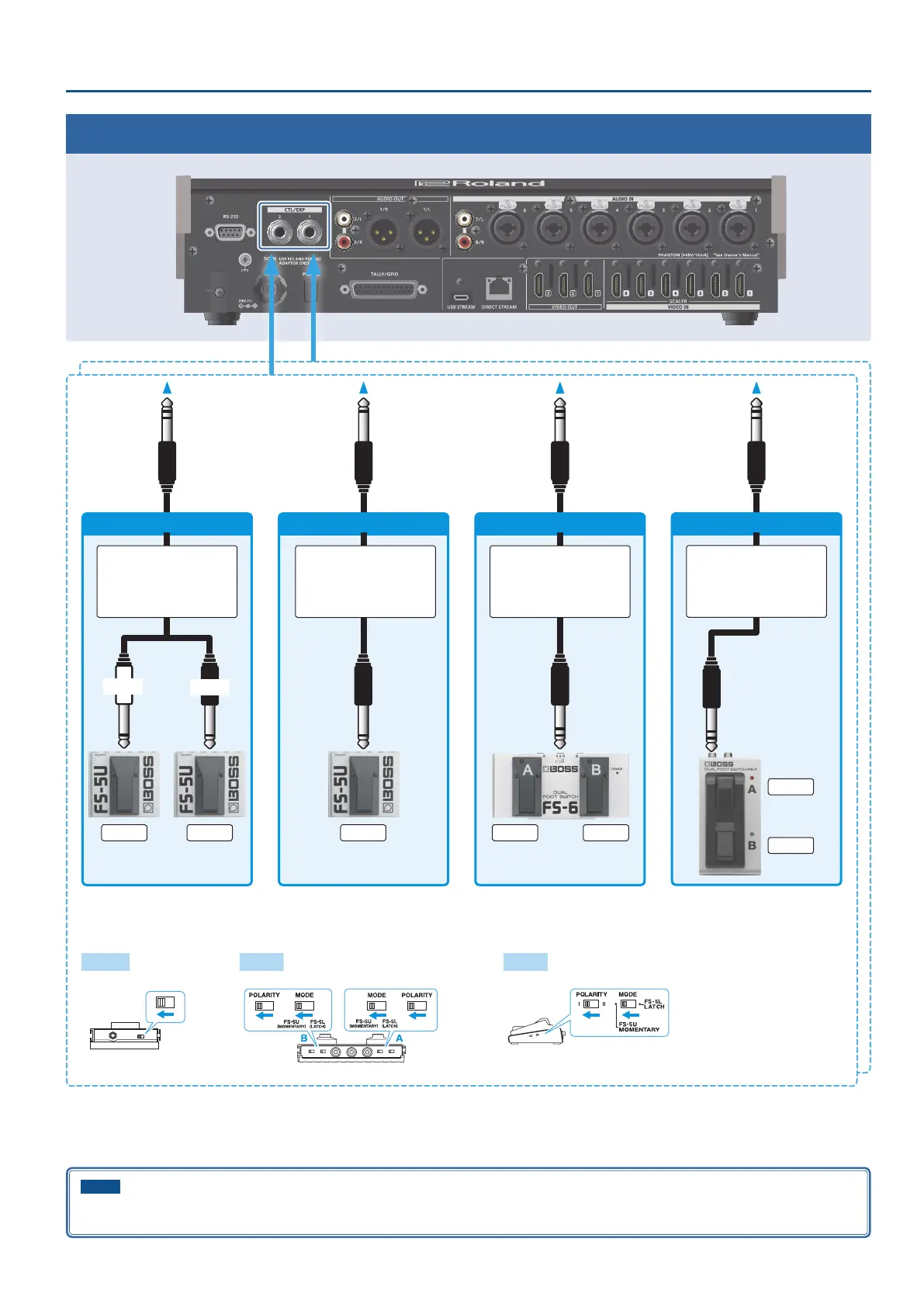

Connecting a Footswitch
