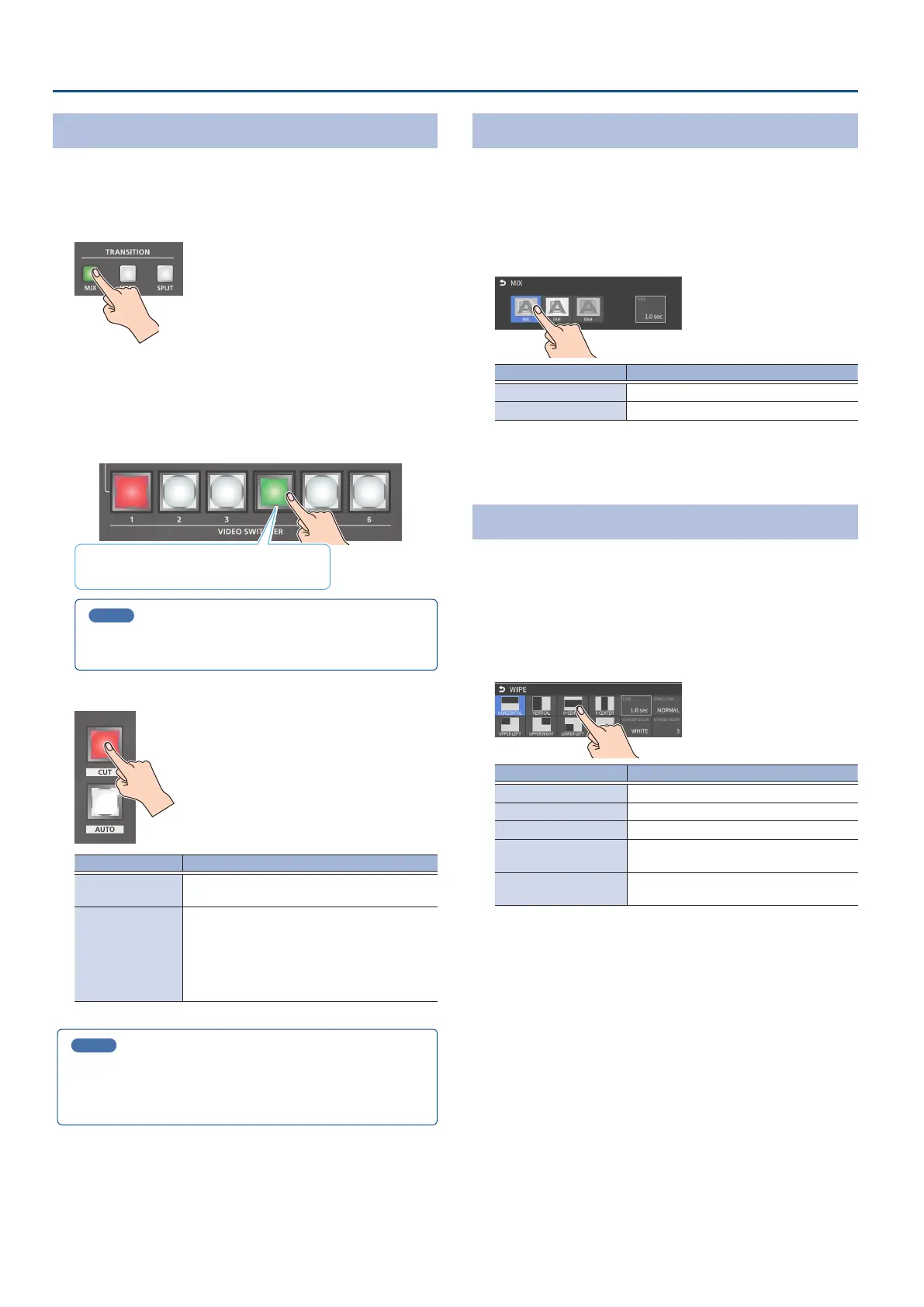

Switching in the PGM/PST Mode
Here are the steps when selecting “PGM/PST mode” in the operation
mode settings.
1. Press the [MIX] or [WIPE] button to select the transition
eect.
2. Press the MODE [INPUT SELECT] button.
3. Press a VIDEO SWITCHER [1]–[6] button to select the preview
output video (the video to be output next).
You can check the preview output video in the PVW section of the
multi-view.
Lit Green: preview output video (the video to be
output next)
MEMO
You can also directly touch the MULTI-VIEW or STILL-VIEW screens
to select a video signal.
4. Press the [CUT] or [AUTO] button.
Button to operate Action taken when pressed
[CUT] button
(lit up red)
The video switches instantly.
[AUTO] button
(blink red)
A switch (transition) eect is applied, and the
video switches automatically.
Set the video transition time from the [MENU]
button
Ó
“TRANSITION”
Ó
“MIX”
Ó
“MIX” or
[MENU] button
Ó
“TRANSITION”
Ó
“WIPE”
Ó
“TIME”.
MEMO
You can change the transition pattern by which the mix/wipe occurs.
Ø
“Changing the Mix Pattern” (p. 20)
Ø
“Changing the Wipe Pattern” (p. 20)
Changing the Mix Pattern
You can change the transition pattern used for a mix transition.
1. While the [MIX] button is lit, select “MIX” from the [MENU]
button
Ó
“TRANSITION”
Ó
and press the [VALUE] knob.
The setup screen appears.
2. Touch the screen to access the settings.
Menu item Explanation
TYPE Species the transition pattern for mix.
TIME Species how long the transition takes.
* For details on the parameter, refer to “3: TRANSITION” (p. 122).
3. Press the [MENU] button to close the screen.
Changing the Wipe Pattern
You can change the wipe transition pattern, wipe direction and other
properties.
1. While the [MIX] button is lit, select “WIPE” from the [MENU]
button
Ó
“TRANSITION”
Ó
and press the [VALUE] knob.
The setup screen appears.
2. Touch the screen to access the settings.
Menu item Explanation
TYPE Species the transition pattern for wipe.
TIME Species how long the transition takes.
DIRECTION Species the direction of wipe.
BORDER COLOR
Species the color of the border added to
the edge of the wipe area.
BORDER WIDTH
Species the width of the border added to
the edge of the wipe area.
* For details on the parameter, refer to “3: TRANSITION” (p. 122).
3. Press the [MENU] button to close the screen.
