14

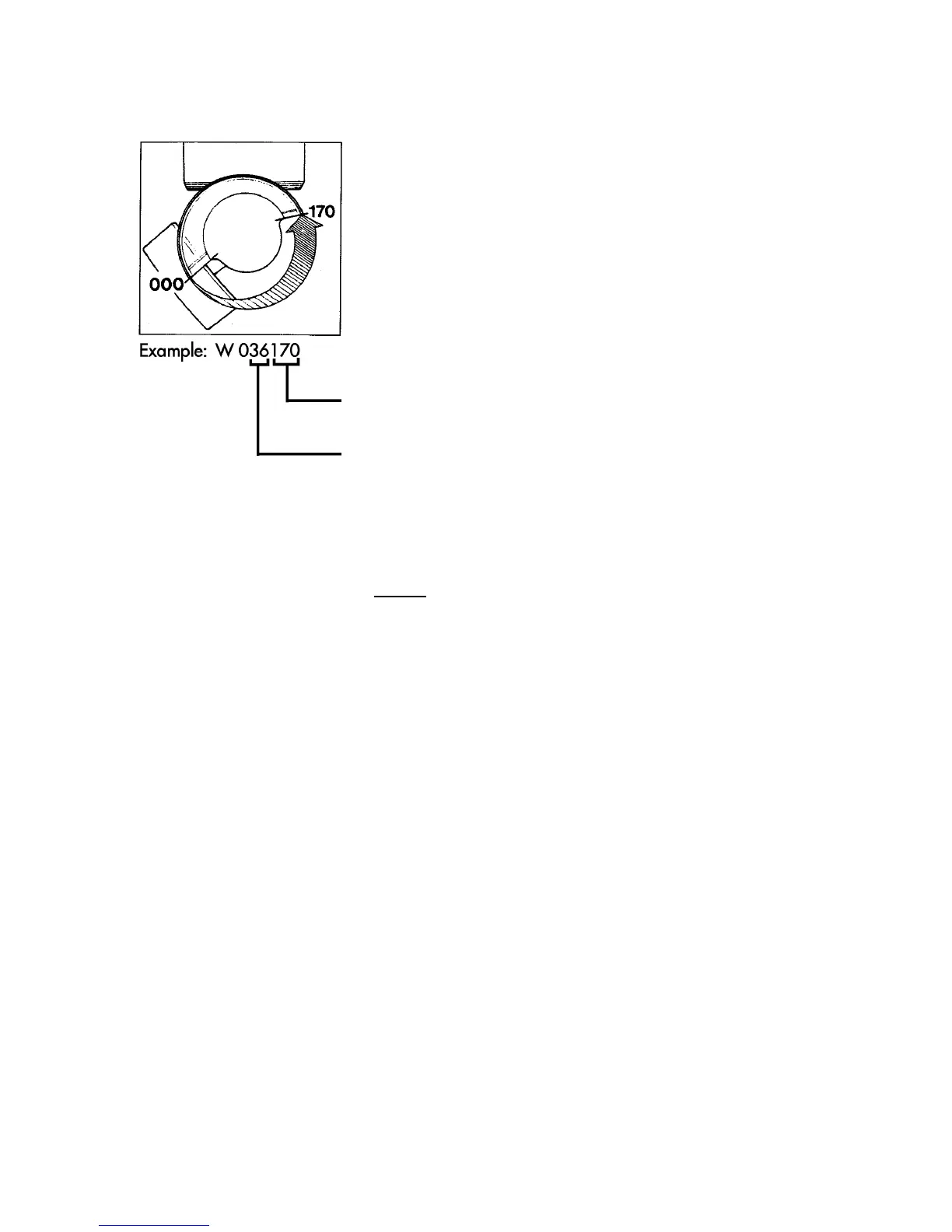

YYY = Turning Angle of the Draft Shield
The movements of the motorized draft shield door are output as a 3-place
decimal number with a position readout. The readout 000 to approx. 170
corresponds to 0° (closed) to 170° (completely open).
Turning Angle
The draft shield door has opened by approx. 170
o
Control Codes
0 Æ Bit 6 – motorized draft shield operation
+ 32 Æ Bit 5 – fast speed
+ 0 Æ Bit 4 – open draft shield
+ 0 Æ Bit 3 – “self-teaching” off
+ 4 Æ Bit 2 – draft shield door turned as far as possible
+ 0 Æ Bit 1 – draft shield motor “off”
+ 0 Æ Bit 0 – no control error
= 36
