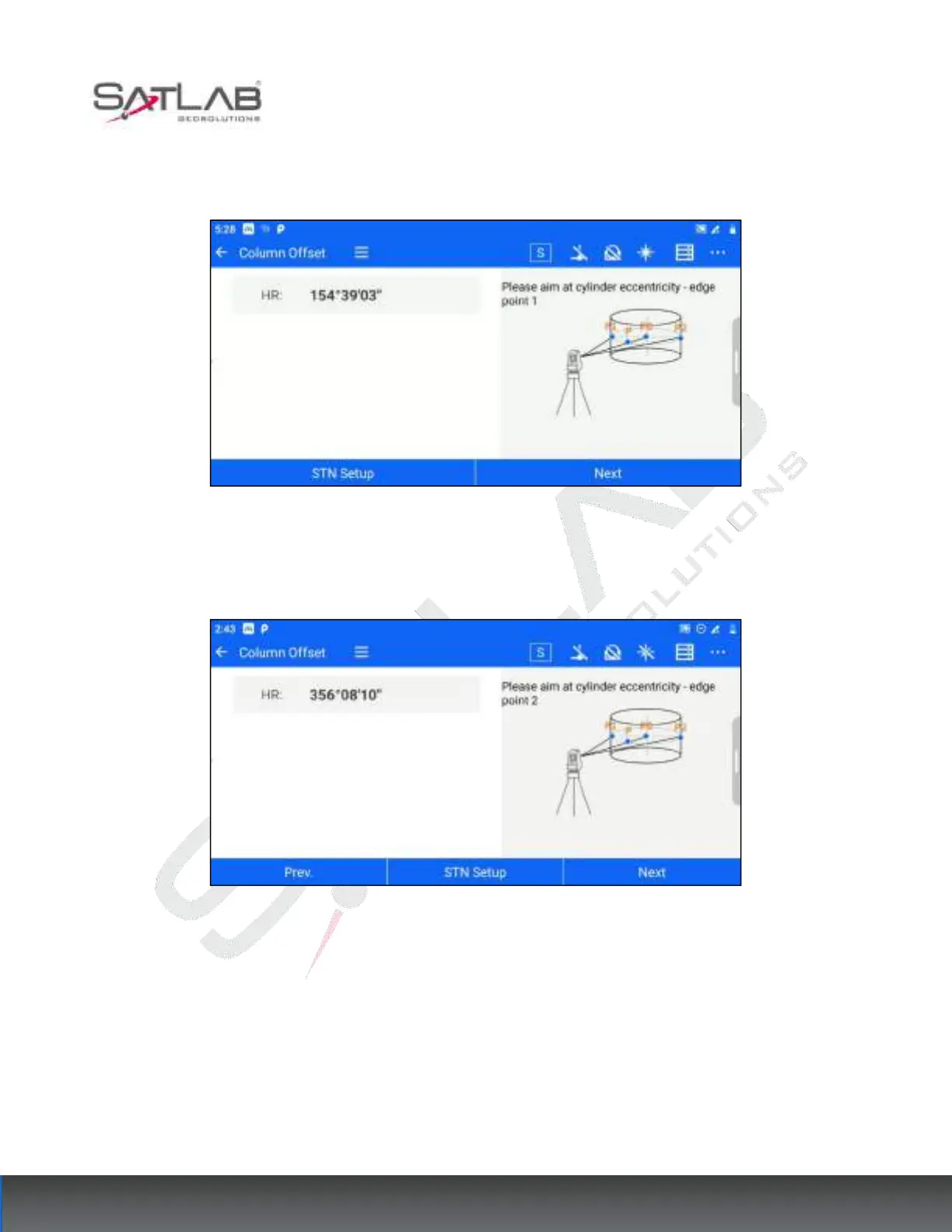

1. Aim at the first point P1 on the edge of the cylinder, click "Next", and get the horizontal angle data while
going to the next step.
Figure 7- 7
2. Aim at the second point P2 on the edge of the cylinder and click "Next" to get the horizontal angle data while
going to the next step.
Figure 7- 8
3. Aim at point P on the cylindrical surface and click "Meas." to get the azimuth and distance data. Note that if
you want to measure the coordinates of point P0, enter 0 for the target height; if you want to measure the
coordinates of the ground point corresponding to P0, enter the height of P from the ground for the target height.
