SLT12 User Manual
82

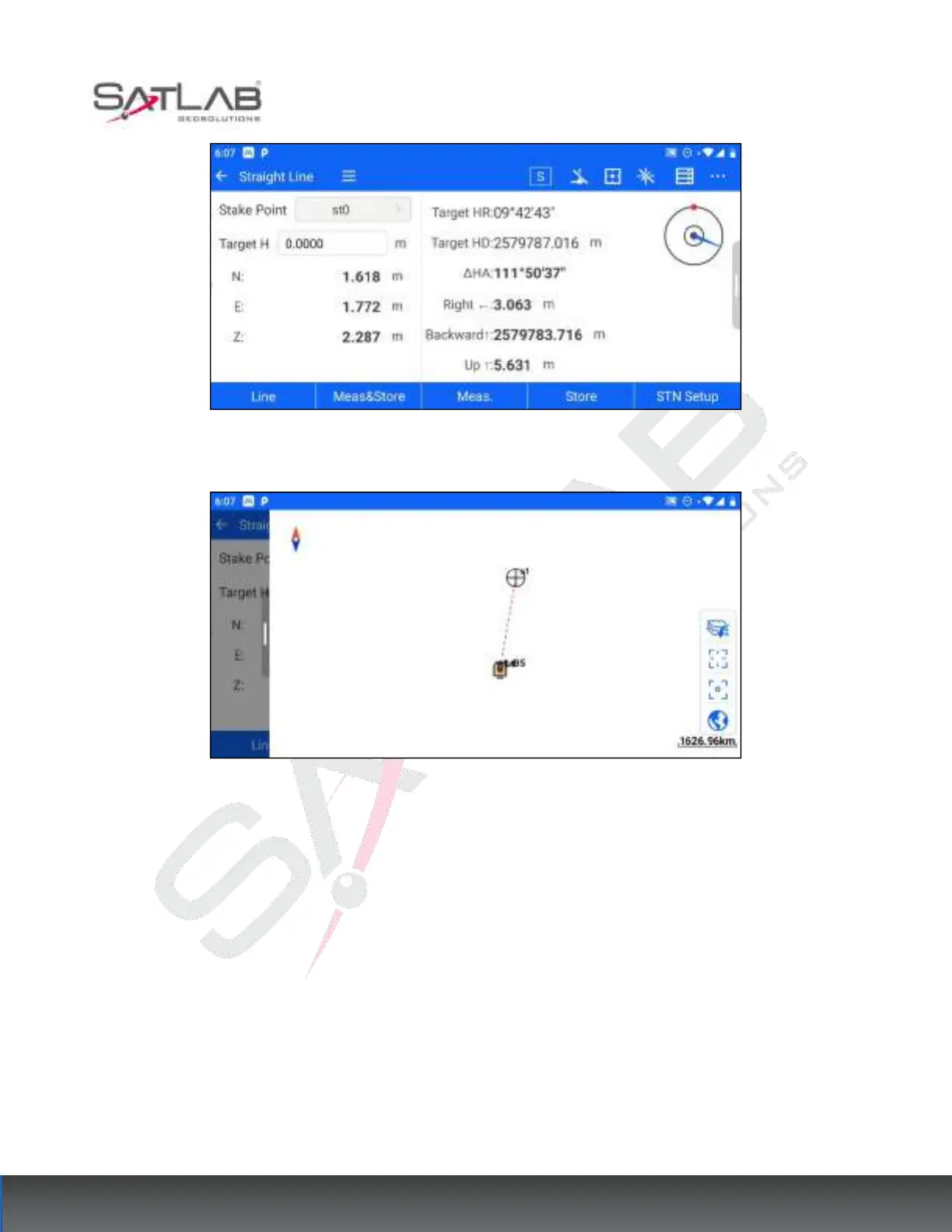

Figure 8- 25
Figure 8- 26
8.7 RefLine
Reference line Stakeout can define the reference line by setting parameters such as start/end point and baseline
offset, rotation, etc., and perform Stakeout operations on the reference line after configuring the Stakeout
parameters.
8.7.1 Reference Line Definition
Click [RefLine] to enter the reference line definition interface, select the starting point and end point of the
reference line (can be selected by manual input, list selection, measurement selection, etc.); set the baseline
offset, including horizontal offset, vertical offset, rotation angle, and other parameters.
