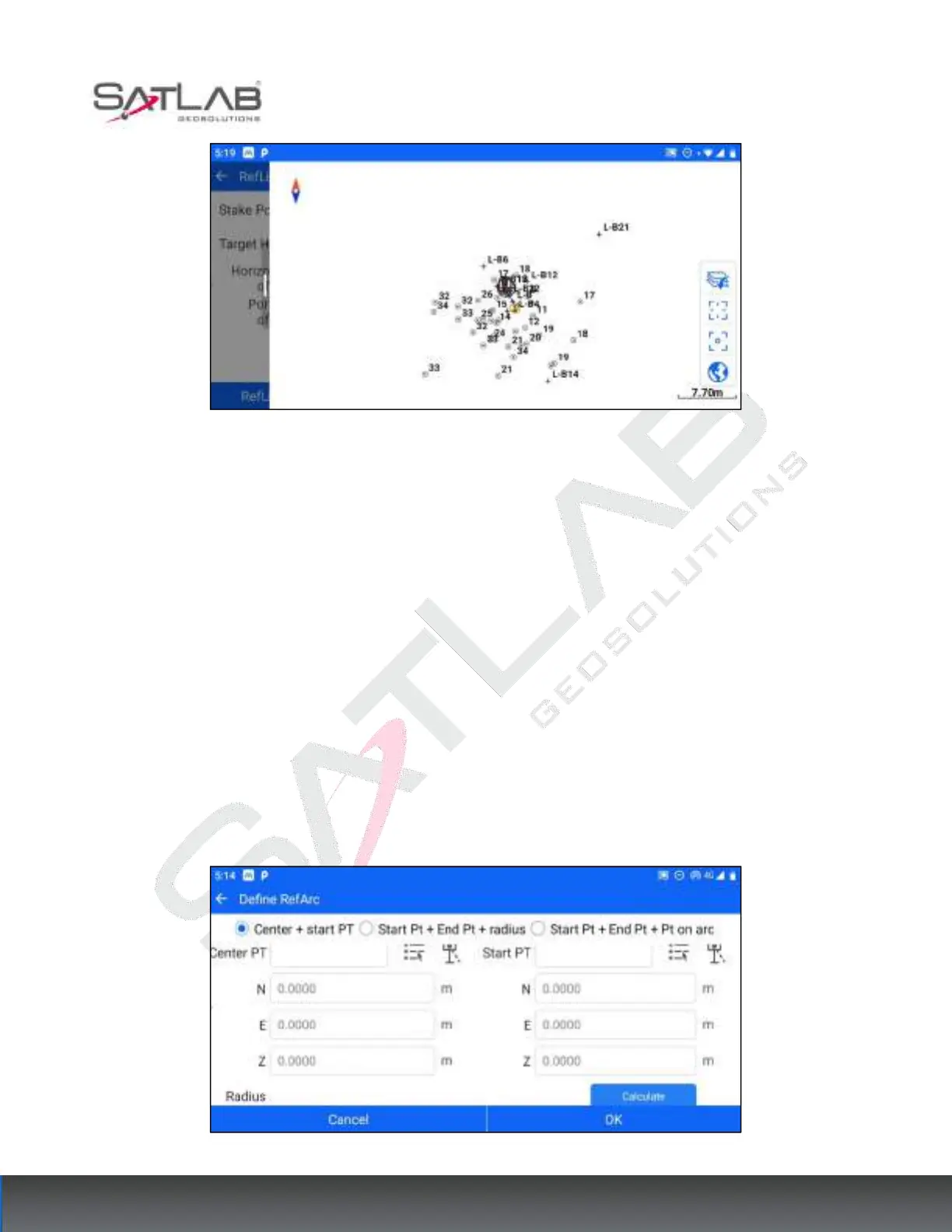

Figure 8- 31
8.8
RefArc
The reference arc stakeout can be defined in different ways, and the stakeout operation can be performed on the
reference arc after configuring the stakeout parameters.
8.8.1 Reference Arc Definition
Click [RefArc] to enter the reference arc definition interface, there are three reference arc definition methods to
choose from: "center + start PT", "Start PT + End PT + radius", "Start PT+ End PT + PT on the arc ", after
selecting the reference arc definition method, you can set the parameters as required.
After "Center + StartPT" or " Start Pt + End Pt + Point on Arc", click the "Calculate" button to automatically
solve the reference arc radius information.
After inputting the reference arc information, click OK to jump to the setting interface of the stakeout
parameters.
