SLT12 User Manual
84

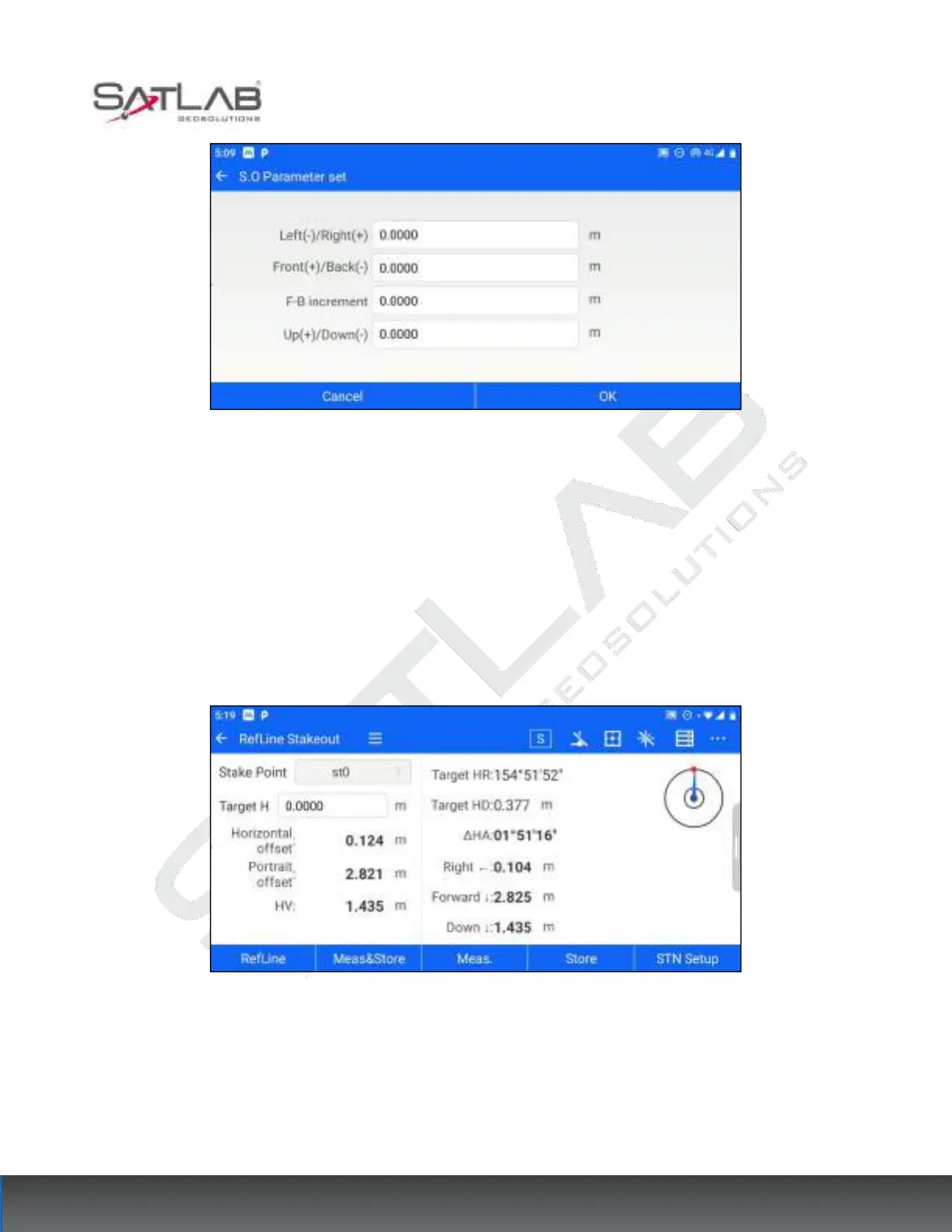

Figure 8- 29
If the front and back offset increment is set, the stakeout screen shows the switch button of the previous and next
point, and click it to switch the target point of the stakeout according to the offset increment.
After the target point is selected, click on the meas&storage/meas.- Store to calculate the stakeout information,
and expand the graphic interface on the right side to show the position relationship between the current position,
prism points, and stakeout points.
Click the "RefLine" button to jump to the reference line definition interface to modify the reference line
parameters.
Figure 8- 30
