SLT12 User Manual
149

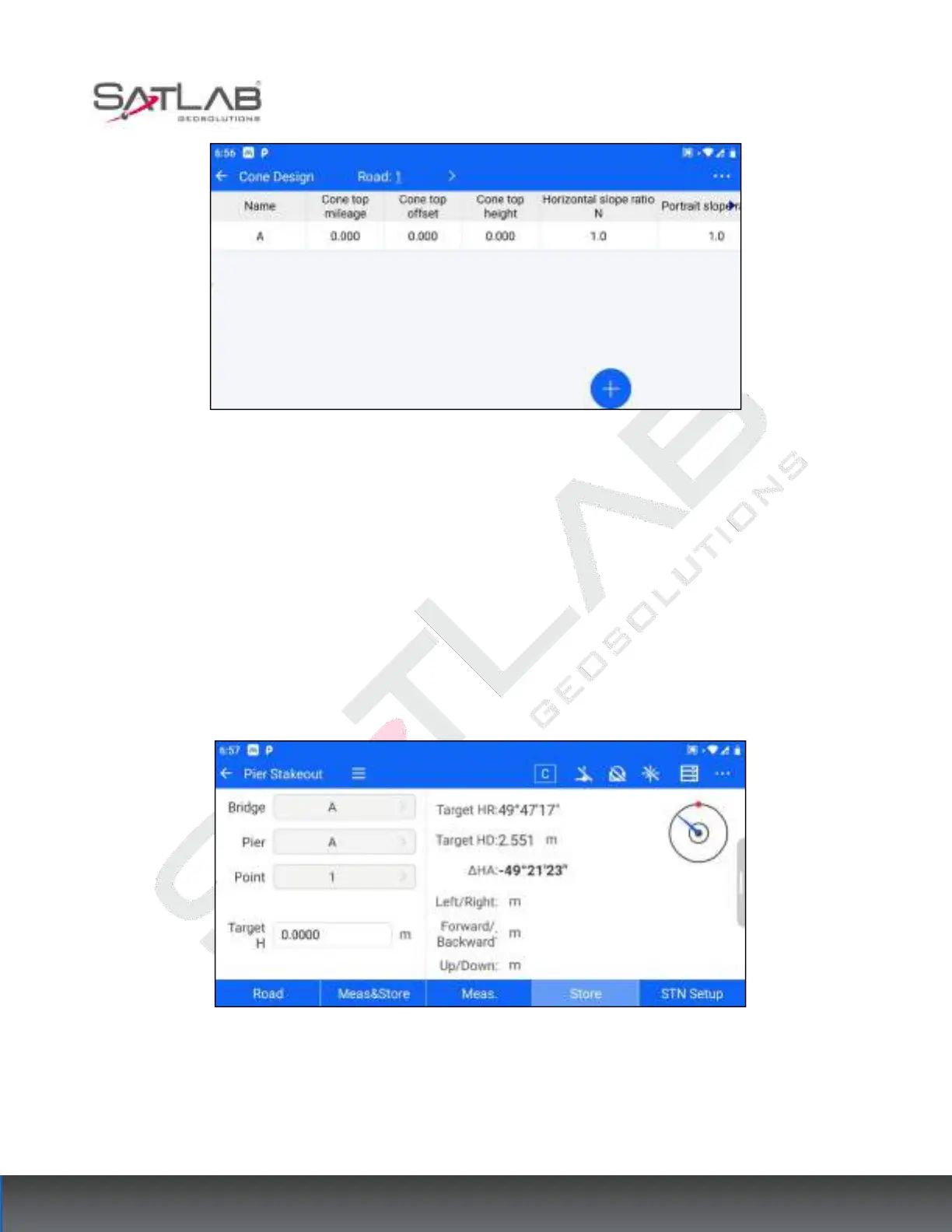

Figure 12- 14
Click a tapered slope in the tapered slope design list to "delete"/"edit" the tapered slope.
Click "..." -> "Clear" in the upper right corner to clear the cone slope list.
12.4 Pier Stakeout
The pier stakeout interface can be placed on the road data of the bridge pier data feature points. The steps of the
stakeout operation are as follows.
1. Select road data: click the "Road" button, jump to the road library, and click to select the road data that need to
be put back into the sample interface.
Figure 12- 15
